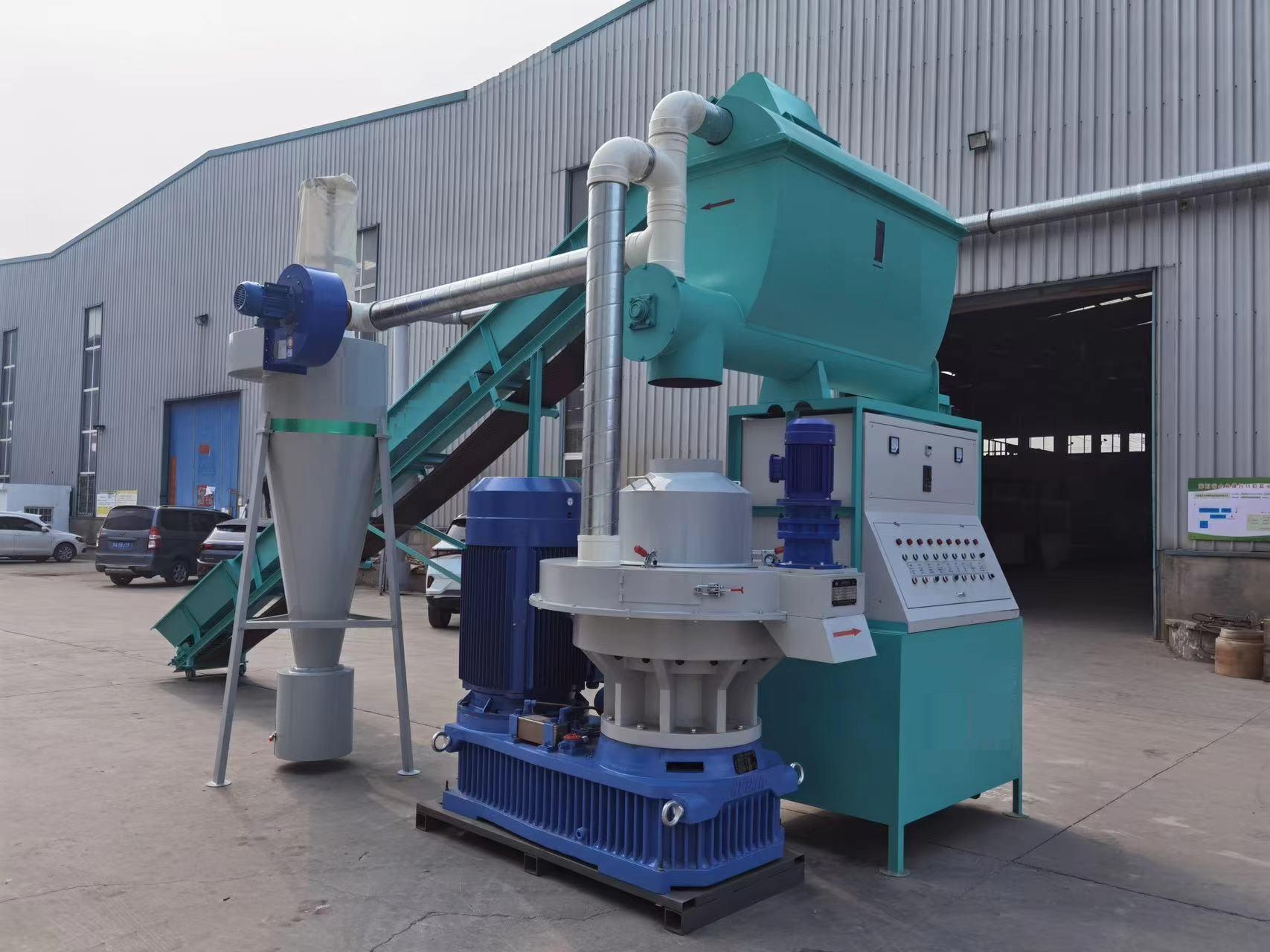

| Full Set of Pellet Machine Production Line |
| Power: 75kw |
| Output: 1000-1500 kg |
| Suitable raw materials: sawdust, branches, bark, rice straw, wheat, bark, palm silk, and other difficult to form substances |
| The equipment includes a conveyor granulator power distribution cabinet dust collector. |
| Equipment advantages: |
| 1. The raw materials belong to materials that are difficult to form. Our granulator is designed to lay flat on a ring mold and is specifically developed for materials that are difficult to form. From the perspective of working principle, it is more suitable. |
| 2. A timing and quantitative dynamic automatic lubricating oil supply device. No manual lubrication, continuous operation. |
| 3. Timing and quantitative feeding device. Avoid blocking the machine due to excessive manual feeding. |
| 4. Use the mold twice, both positive and negative, to reduce user costs |
| 5. The control system of the power distribution cabinet is integrated with the host, and the dust removal system is integrated with the host |
| 6. Closed automatic breaking and discharging device. |
| 7. Equipment maintenance free, low maintenance cost |
| Model |
SHSCX75 |
| Device Name |
Motor |
Quantity |
Remarks |
| Feeding belt conveyor |
1.5KW |
1 |
The length of this device can be adjusted according to on-site conditions. The customer has this device on site and can make full use of it. |
| Feed silo auger |
2.2KW |
1 |
The coordination of the silo auger makes uniform and quantitative feeding possible, ensuring the safe and stable production of the equipment. |
| Discharge cooling mesh belt conveyor |
1.5KW |
1 |
Optional as required, and the length can be adjusted according to on-site conditions. An exhaust fan can also be installed to achieve an ideal cooling effect. |
| Ring mold particle molding machine |
75KW |
1 |
1. Ring mold particle forming mechanism: including machine base, middle body, transmission part, speed regulating device, central wheel frame, ring mold fixing device, automatic lubrication system, cutter, conveying auger, reducer gear pump, etc.
2. Features of ring mold particle molding machine: vertical and vertical feeding of mold; The mold is stationary and the pressing wheel rotates; Material centrifugation, uniform distribution, 360 ° discharge, efficient and energy-saving; Automatic lubrication system high-pressure filtration, clean and smooth oil circuit; Independent frequency conversion ensures particle molding. |
| Reducer gear pump |
0.55KW |
1 |
| Scissors |
2.2KW |
1 |
| Automatic lubrication system |
0.37KW |
1 |
|
| Shakelon dust collector |
1.5KW |
1 |
The equipment includes cyclone collectors, connecting pipes, connecting flanges, induced draft fans, and other devices |
| Bag dust collector |
|
1 |
This device is used in conjunction with the Shakelon dust collector to collect dust during production, ensuring a good production environment. |
| Control system |
|
1 |
Including all motors, fan control, and frequency conversion devices to achieve overcurrent and overload protection |
