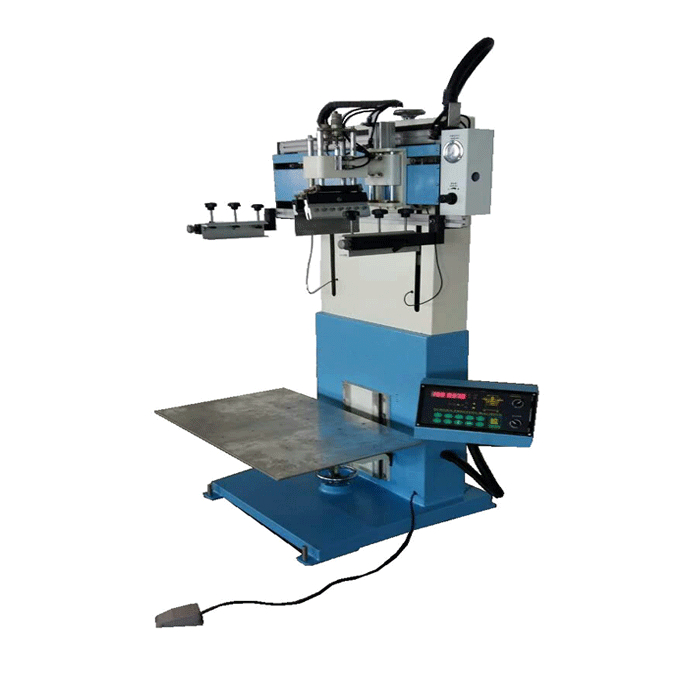

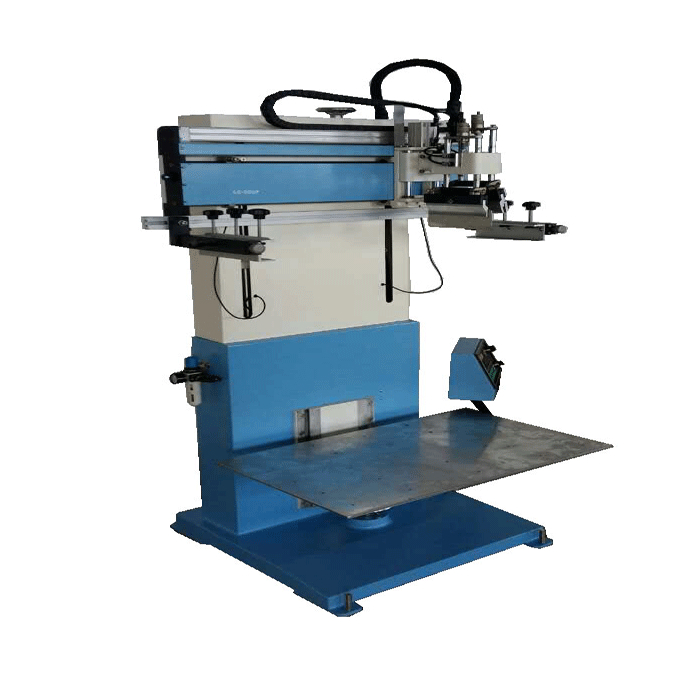

S-400PC  Crate plain screen printing machine  //Usage and characters

Guide

• Deign for higher crate , Suitable for all types of plastic box printing
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen.

S-400PC Crate plain screen printing Machine //Parameters

Technical parameters

• Max printing thickness: 400 mm；
• Air consumption: 110Litre/Min；
• Dimension of working table: 300×500mm；
• Max printing areas: 280×450mm;
• Max printing speed: 900Pcs/H;
• Max frame dimension: 450×740mm;
• Compress air: 5-7 bar;
• Stroke of cylinder up and down:160mm；
• Stroke of Squeegee: 400mm

Works supply

• 110V-220V Power supply；
• 5-7Barcompress air；

Package parameters

• Wooden Case:Package dimension： 0.93X0.92X1.65M
• Gross weight： 160Kg;
• CBM: 1.51832

H.S.CODE

8443192190

Certificate

CE

S-400PC Crate Flat screen printing Machine  //Advantage

Function

• Design for crate, suitable for printing all types of plastics box;
• Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
• Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
• Screen forme Clamping device free to adjust to fit different sizes of screen;
• Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
• Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
• Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
• Microcomputer program control operations;
• 4-Digit auto counter; to facilitate the measurement of production efficiency.
