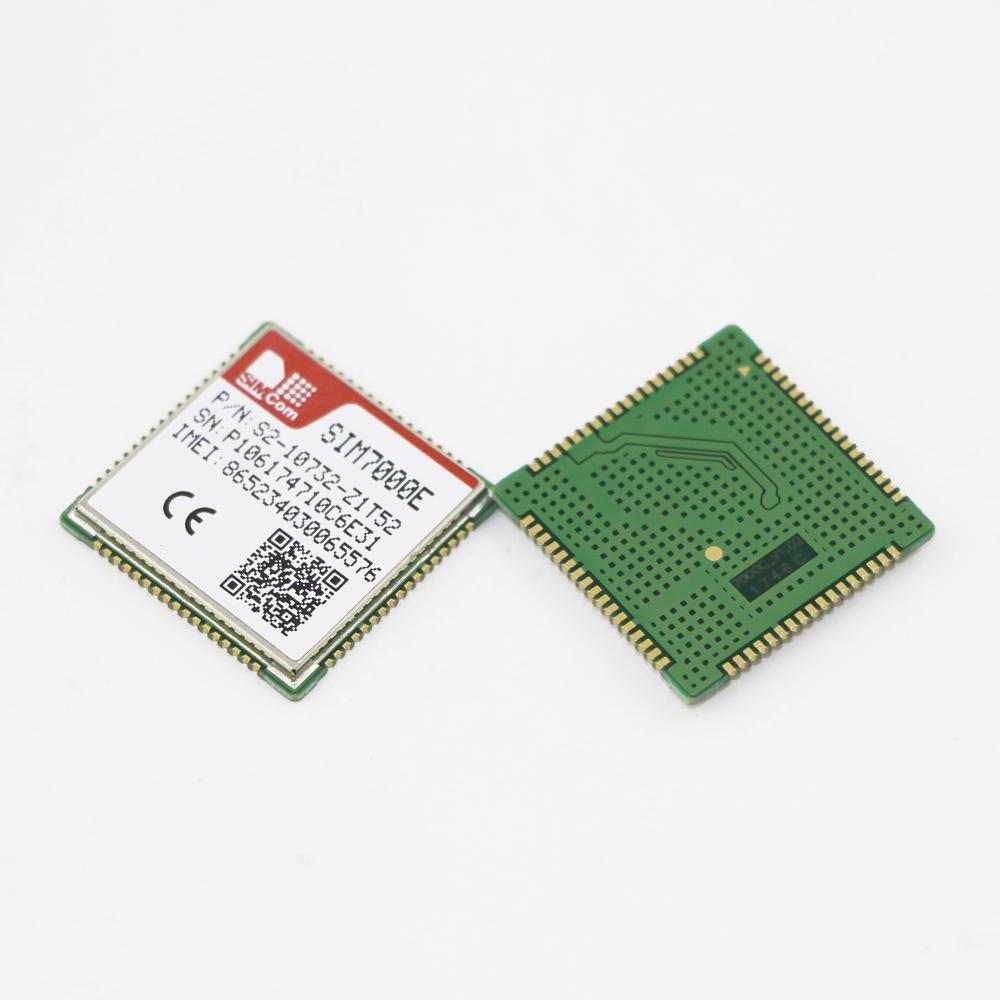

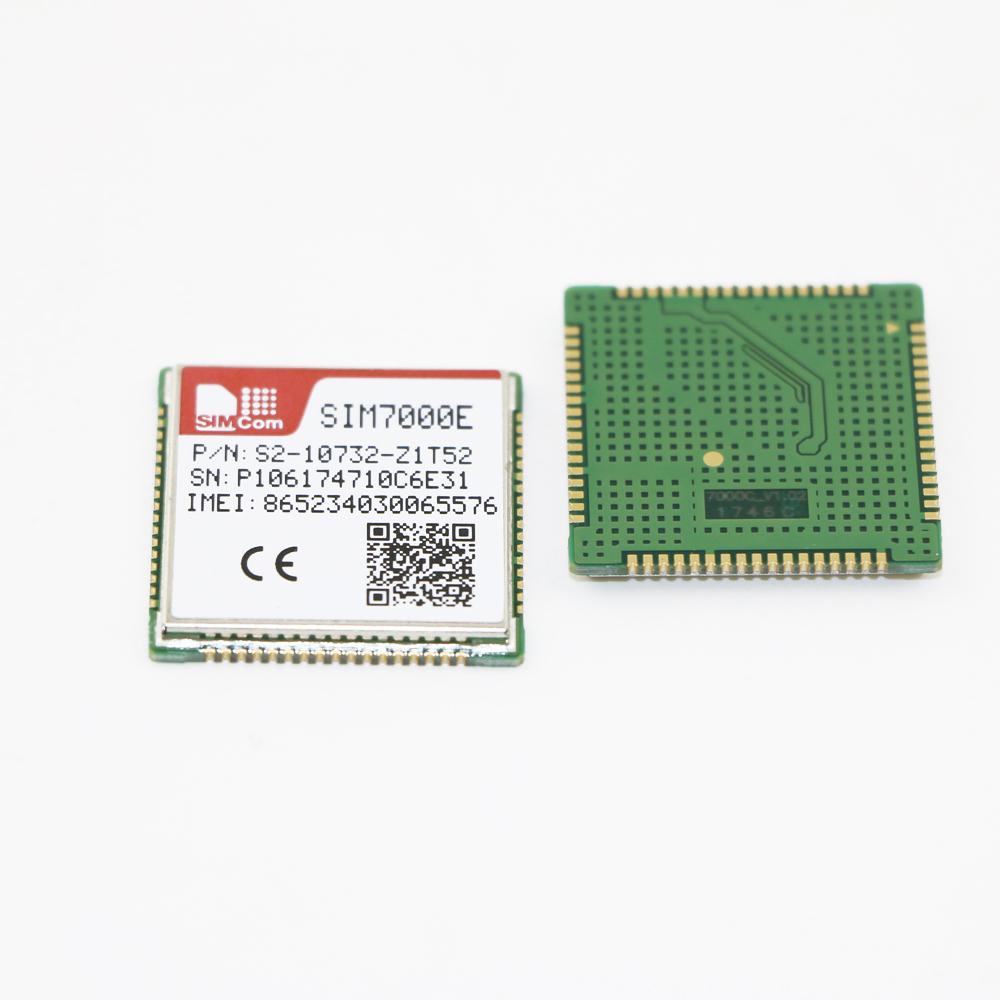

SIM7000E (eMTC/NB-IoT/EDGE Module)

Product Description

The SIM7000E is Quad-Band LTE-FDD and Dual-Band GPRS/EDGE module solution in a SMT type which supports LTE CAT-M1(eMTC) and NB-IoT up to 375kbps data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application. The package of SIM7000E is compatible with SIM900 and SIM800F. AT commands of SIM7000E are mostly compatible with SIM800F. This also minimize the investments of customers, and enables a short time-to-market. It is designed for applications that need low latency, medium throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, telematics, asset tracking, remote monitoring, E-health , mobile pos terminals and sharing bike.



Key Benefits

● With Power Save Mode(PSM) and Extended

Discontinuous Reception(eDRX), SIM7000E can extend

battery life to 10 years

● SIM7000E provides deeper coverage enhancement

compared to GSM

● The package and AT commands of SIM7000E

mostly are compatible with SIM900 and SIM800F

General Features

Quad-Band FDD-LTE B3/B8/B20/B28

GPRS/EDGE 900/1800Mhz

Output power

- GSM900: 2W

- DCS1800: 1W

Control Via AT Commands

Supply voltage range: 3.0V~ 4.3V, Typ: 3.8V

Operation temperature: -40℃ to +85℃

Dimensions: 24 X 24 X 2.6mm

Weight: 3.0g

GNSS (GPS,GLONASS,BeiDou and Galileo)

Data

LTE CAT-M1(eMTC)

- Uplink up to 375kbps, Downlink up to 300kbps

NB-IoT

- Uplink up to 66kbps, Downlink up to 34kbps

EDGE Class

- Uplink up to 236.8Kbps, Downlink up to 236.8Kbps

GPRS

- Uplink up to 85.6Kbps, Downlink up to 85.6Kbps
