Circulation pump

Circulation pump
Brand:Section century
Origin:Made In Hong Kong S.A.R
Category:Industrial Supplies / Machinery / Pumps Vacuum Equipment
Label:Circulation pump , pump , Magnetic isolation
Price: -
Min. Order:1 pc
Inquire Now

Product Description

Dimension and Picture


l         voltage4.5V~24V DCStandard 12V DC

l         Max flow750L/H(12.5L/Min)or 3.4gallon/Min

l         Max head5.5M

l         materials ABS+PC or PA66

l         Max working pressure5 Bar

l         Max temperature70

l         Waterproof levelIP68

l         weight250g


l         Life-span for 10 years, maintenance-free; Small size but high efficiency, low consumption

l         There is a sleeve in the middle of rotor and the rotor was fixed in the shell by high-performance ceramic shaft. the stator and circuit board are sealed by epoxy resin which are completely isolated with this way the pump is completely water- froof.

l         There are many parameters we can adjust at the same voltage, such as 24v pump's head can reach 2m, 5m is also possible. pump can work at wide range voltage: The 24V pump can run below 24v(4.5V to 24v).

l         The long-term wear of pumps and large gap (which will have big noise)generated by the heating or cooling in long-term use of hot water were solved by the co-operation of high-precision ceramic shaft and sleeve, the noise can less than 35db(even in hot water), especially lower power pumps can reach 30db, nealy mute.

l         Multi-functional design: Submersible or outside install (below the liquid surface)

l         can be customized according to user's requirements.

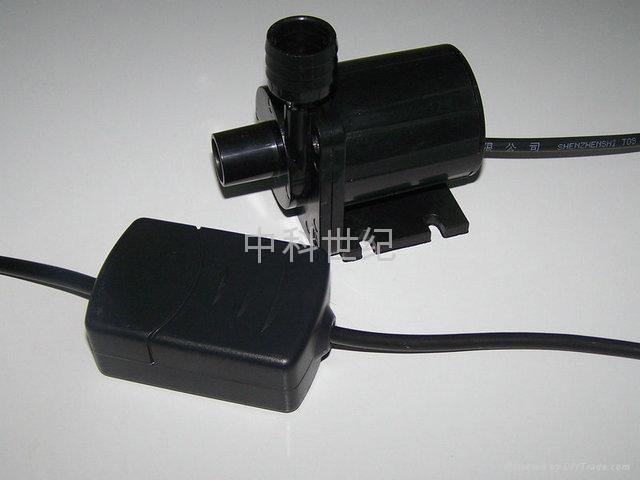

Circulation pump 1Circulation pump 2Circulation pump 3
