SAND Melt pressure transducer Dynisco replacement

Model:	PT4xx6
Brand:	SAND
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:	pressure transducer , pressure sensor , melt pressure
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

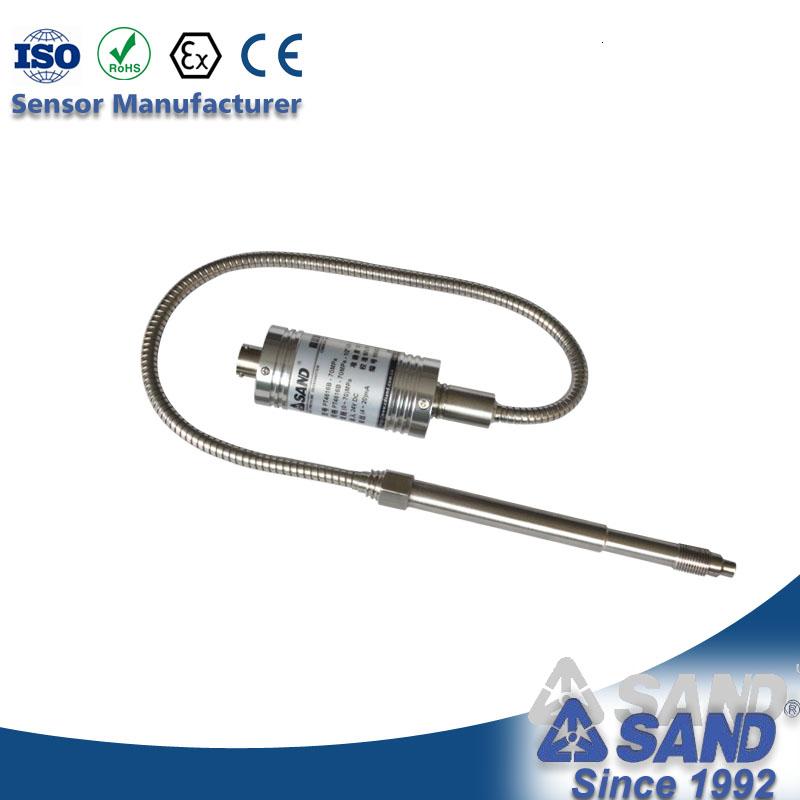

PT4xx6 series high temperature melt pressure transducer(SAND)

Introduction

SAND PT4XX6 series pressure transducers are ideal for the measurement of melt pressure in extrusion processes at temperatures up to 400 C. This series are produced with special materials and alloyed elastic diaphragm together with delicate processing and deb ing. The main characteristics are high accuracy and small zero and span shifts caused by changes in process temperatures.

Feature

Better than 0.5% accuracy
Standard diaphragm Inconel
TiN or TiAIN coating available
Small zero and span shifts caused by changes in process temperatures

Performance Parameters

Pressure Range	0~50 to 2000bar(0~750 to 0~30000psi)
Pressure Units	PSI, Bar, Mpa or Kg/cm2
Accuracy	±0.5% FS
Repeatability	±0.2% FS
Input excitation	10VDC ( 6 ~ 12 V DC )
Output Signal	3.33mV/V (Default), 3.0mV/V(Optional) etc.
Maximum diaphragm temperature	662 F (350 ) for rigid stem 752 F (400 ) for flexible
Zero shift due to temperature change	≤0.15 MPa/100°C
Insulation Resistance	≥500MΩ/500VDC
Maximum Overload Pressure Rating	1.5 x FSO
Process connection	1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc.
Electrical Connection	6PIN or 8PIN
Internal Shunt Calibration	80% FSO
Measurement principle	4-arm bonded foil strain gage Wheatstone bridge
Temperature Sensor (optional)	E,J,K,S type or Pt100

Specification

	Pressure transducer	Pressure transmitter
Rigid stem type	PT4516	PT4516B
Flexible stem type	PT4616	PT4616B
Pressure & temperature dual function type	PT4626	PT4626B

Order format

Example: PT4516-10000psi-1/2"-20-150-3.33mV/V
Note:  Product design Model "PT4516".
            Function code "Null" stands for melt pressure transducer.
           Coating code null stands for without coating .
            Pressure range: 0 ~ 10000psi.
            Thread size : 1/2"-20 UNF .
            Rigid stem length:150mm .
            Pressure output signal: 3.33mV/V.
