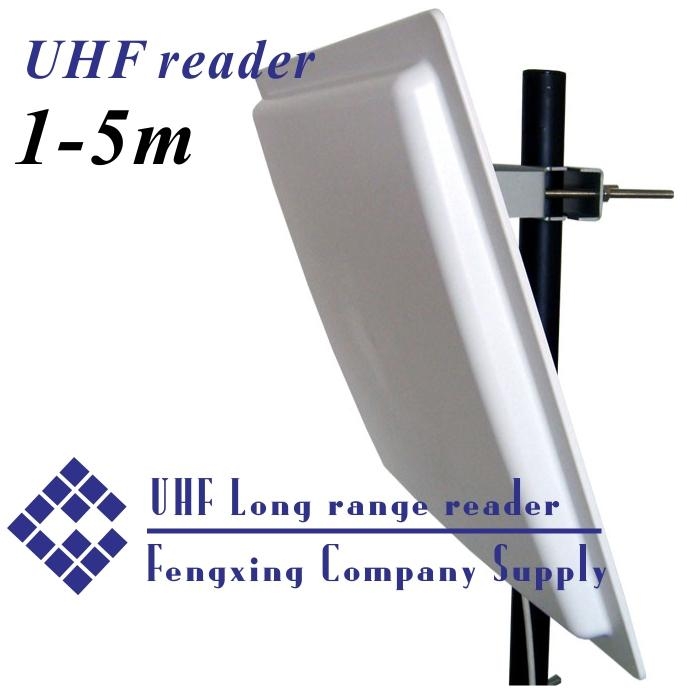

Features:

Integrated, high performance 12dBi  circular antenna ensure long-range reading&writing and easy installation.

Multi-protocol support: ISO 18000-6B&ISO 18000-6C(EPC Gen2).

Super anti-interference ability for its FHSS frequency working method.

Multi-reader synchronise.

Software with different Programming languadge allows easy upgrade.

Waterproof and sunshine de ng, idea for outdoor applications.

All kinds of communication interfaces and customizing is available too.

Technology Parameter:

Frequency Range: 902MHz~928MHz (Ajustable for local regulations)

Tag protocols: ISO18000-6B,EPC Class 1,EPC Class 1 GEN 2

Operating Method: FHSS or fixed frequency(setted by software)

Antenna ports: Built-in 12dBi vertical polarization antenna

Max RF power: 30 dBm

Power smoothness: <0.5 DB

RF power range: 20~30 dBm,Adjustable by software

Identify tag mode: Identify tag mode can be setted as: Reads the tag in fixed time automatically or; read tag after external triggering or software command.

Identify tag time: <8ms(Identify single tag)

Reading/Writing tag time: No more than 5ms every 8 bytes when reading, 25ms every 4bytes when writing.

Reading/Writing tag distance: More than 8m when reading, writing range is 70% of reading range(depend on antenna)

Communication interface: RS485、RS232、Wiegand26、Wiegand34、RJ45(TCP/IP)、CANBUS

Input/output: 1triggering input, 2 electric relay outoput

Power supply: DC 9V/DC12V

Power consumption: ≤5W

Size: 460mm×460mm×50mm

Package dimension: 540mm×540mm×140mm

Gross Weight: 4.82kg

Net Weight: 2.66kg

Work Temperature: -45°C~+75°C (-49°F~ 167°F)

Storage Temperature: -50°C~+85°C (-58°F~ 185°F)

Work status indication: Buzzer

Applications:

Intelligent traffic such as ETC, customes border-crossing, parking lot, automatic weighing etc.
Logistics such as container management, pallet management, asset tracing etc.
Ticketing& access control
Pharmaceuticals such as medical waste management,etc.

 Frequency Range: 902MHz~928MHz

Protocol support: ISO 18000-6B&ISO 18000-6C
