| Model: | DWDM OADM |
|---|---|
| Brand: | Flyin |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Optical Fiber, Cable & Wire / Optical Fiber |
| Label: | DWDM , AWG DWDM , DWDM OADM |
| Price: |
US $33
/ pc
|
| Min. Order: | 1 pc |
| Last Online:27 Dec, 2017 |

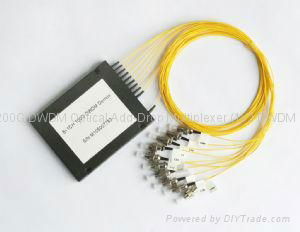

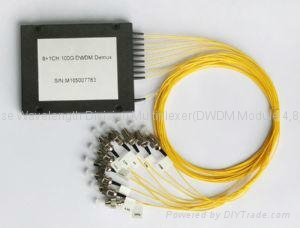

Flyin Optronics 100GHz/200GHz wavelength multiplexer(100,200G DWDM OADM Module) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add or drop at a ITU wavelength. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Package size: 100x80x10mm ABS plastic box.
Features
l ITU channel spcaing
l Low insertion loss
l Wide pass band
l High Channel Isolation
l High Stability and reliability
l Epoxy-free on Optical Path
l Access Network
Applications
l Channel Add/Drop
l DWDM Network
l Wavelength Routing
l Fiber Optical amplifier
l CATV fiberoptic System
Performance Specifications
Parameter | 4 Channel | 8 Channel | |||
Add | Drop | Add | Drop | ||
Channel Wavelength (nm) | ITU Grid | ||||
Center wavelength Accuracy (nm) | ±0.05（ | ||||
Channel Spacing (GHz) | 100 | ||||
Channel Passband (@-0.5dB bandwidth (nm) | >0.22 ( | ||||
Insertion Loss (dB) | In—Drop@drop | 2.0 | 3.2 | ||
Add---Out@add | 2.0 | 3.2 | |||
In---out@other | 2.5 | 5.0 | |||
Add/Drop Channel Ripple (dB) | <0.3 | ||||
Isolation @Add/Drop Channel | Adjacent | N/A | >30 | N/A | >30 |
Non-adjacent | N/A | >40 | N/A | >40 | |
Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||
Polarization Dependent Loss (dB) | <0.1 | ||||
Polarization Mode Dispersion (ps) | <0.1 | ||||
Directivity (dB) (Input to add, Output to drop, add to drop | >50 | ||||
Return Loss （dB） | >45 | ||||
Maximum Power Handling (mW) | 500 | ||||
Opterating Temperature (℃) | -10~+75 | ||||
Storage Temperature (℃) | -40~+85 | ||||
Package dimension (mm) | L100x80xH10 | ||||
Specification may change without notice.
Above specification are for device without connector.
Ordering Information
OADM | X | XX | XX | XX | X | X | XX |
| Channel Spacing | Number of Channels | Configuration | 1st Channel | Fiber Type | Fiber Length | In/Out Connector |
1= 2= | 4=4CH 8=8CH | 44=4x4 Add and Drop 8=8x8 Add and Drop | 21=CH21 …… 34=CH34 …… 50=CH50 …… | 1=Bare fiber 2=900um loose tube 3= 4= | 1= 2= S=Specify | 0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC S=Specify |
| Payment Terms: | 100% TT in advance |
|---|---|
