Full automatic double labeling machine

Model:SHTB-82CR
Brand:Sheng Hao machinery
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:Automatic double lab , Double labeling mach , The bilateral sides
Price: ¥98000 / Table
Min. Order:1 Table
Inquire Now

Member Information

Detail

Product Description

Product Name: full automatic double labeling machine

Product type: SHTB-82CR

The product brand: Sheng Hao machinery

Product Name: bilateral sides labeling machine double labeling machine, automaticdouble labeling machine, high speed double labeling machine, double side sticker labeling machine

The vertical labeling method, a special location, the coping device, ensure that thebottle body stable, machine head can be up and down, before and after, tiltingadjustment, suitable for any irregular shape parts with special labeling, mark pressing device, ensure labels close flat; the synchronization device tracking,conveyer belt can be adjusted and a standard speed will be the same; additionalprinter, complete synchronization label printing.

Applicable to the food, cosmetics, daily necessities and pharmaceutical industrysymmetrical or asymmetrical flat, oval object of double labeling.

1 technical parameters

Applicable objects: flat, oval and irregular shaped bottles sides labeling

Container range (mm): thickness 20 ~ 120 high 30 ~ 300

Label range (mm): 15 ~ 170 15 ~ 300

Labeling speed: 30-200 / minute (and the paste and label length)

Labeling accuracy: ± 1 mm

Voltage: 220V

Frequency: 50/60HZ

Machine power: 0.5KW

Control system: PLC

Operation panel: touch screen

Frame material: 304 stainless steel + aluminum alloy profile

Length * width * height (mm): 2440 x 1200 x 1600

Machine weight: 480 kg

(the above parameters as the standard model, can according to the customer request non-standard order, supply all kinds of labeling machine accessories andsupplies, to provide various types of paging machine repair and solutions)

The above labeling machine warranty for one year (except the spare parts), life-long maintenance, the company is a professional manufacturer of self-adhesive labeling machine, has a sticker labeling machine professional solutions and services engineer to solve, welcome to inquire, to plant reference.

Optional surrounding equipment: inkjet printer, laser marking machine, conveyor,sealing machine, paging machine, filling machine, capping machine


Product Image

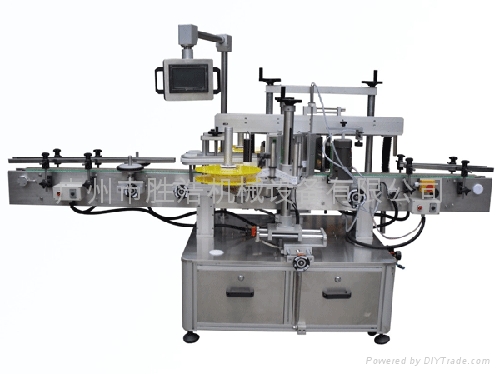

Full automatic double labeling machine 1
Img 1
Full automatic double labeling machine 2
Img 2
