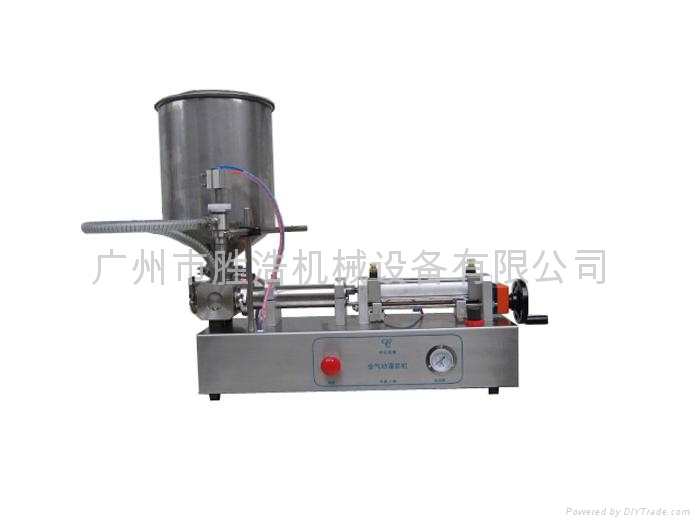

Product Name: semi automatic piston filling machine

Semi automatic piston filling machine our production (pneumatic) for water to various viscosity products cream, suitable for daily chemical, medicine, food,pesticide and other industries.

Semi automatic piston filling machine (pneumatic) all use of pneumatic components, therefore particularly suitable for explosion-proof requirements or humid environment use. Semi automatic filling machine series all our contact materials and parts adopt imported 304 stainless steel material, the NC machine tool machining, surface precision components.

The machine features:

This machine adopts compressed air control and drive, therefore particularly suitable for use explosion-proof requirements and damp environment, with high safety

As a result of the use of pneumatic control, and the use of mechanical positioning,so the high filling accuracy, precision can be controlled within ± 5 ‰.

● the wire rod, the counter, the filling quantity adjusting precision, and can bedirectly reflected in digital form

● according to actual needs, can be free to switch to "manual" and "automatic"filling state

The failure rate of equipment machine is very low.

The name of the product SH-Y series pneumatic semi-automatic filling filling machine

Product characteristics of pneumatic control, simple and convenient operation,high filling accuracy, is flammable and explosive materials ideal filling equipment.

Technical parameters

Item SH-Y-06 SH-Y-12 SH-Y-25 SH-Y-50 SH-Y-100

5-60ml 10-120ml 25-250ml 50-500ml filling range 100-1000ml

The ideal 25-60ml 50-125ml 100-250ml 200-500ml 400-1000ml filling range

Pressure range 4-6kg/cm2 4-6kg/cm2 5-8kg/cm2 5-8kg/cm2 5-8kg/cm2

Rate of filling 0-50 bottles / 0-50 bottles / 0-50 bottles / 0-40 bottles / 0-30 bottles / minute

1% 1% 1% 1% 1% filling accuracy

Keywords: filling machine filling machine, semi-automatic liquid filling machine liquid filling machine, semi-automatic filling machine pneumatic semi-automatic gas

The company can provide all kinds of drinks, wine, edible oil, lubricating oil,chemical raw materials such as complete filling equipment, filling production line for you, packaging production line, but also can rely on the company's technical advantages carefully for your equipment and production of liquid irregularcontainer, cover, capping, labeling, sealing, seal box, packaging and otherautomatic, semi-automatic production line.
