| Model: | LS-300A |
|---|---|
| Brand: | Ruiyan |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment |
| Label: | Optical Light Source , fiber Light Source , Fiber Tester |
| Price: |
US $108
/ pc
|
| Min. Order: | 1 pc |
| Last Online:27 Aug, 2015 |
Descriptions

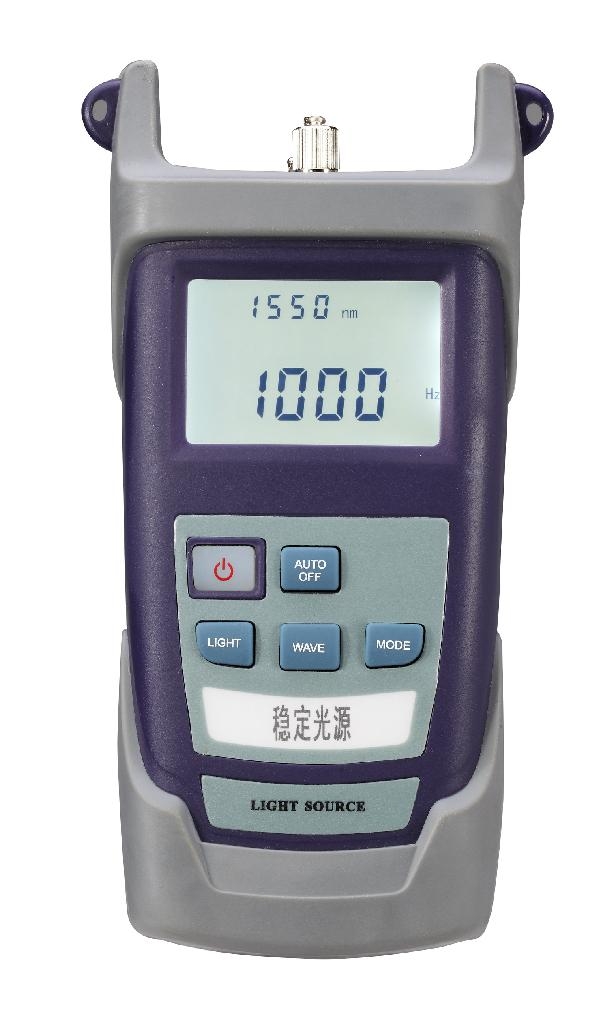

RY-LS300 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the RY-PM-300 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features
Provides 1~4 output wavelengths which can be optional according to customers needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specifications
|
Type |
LS300A |
LS300B |
LS300C |
LS300D |
LS300E |
|
Wavelengths(nm) |
1310/1550nm |
1310/1490/ 1550nm |
850/1310/ 1550nm |
1300/1310/ 1550nm |
850/1300/ 1310/1550nm |
|
Emitter Type |
FP-LD,LED or others please specify |
||||
|
Output Power(dBm) |
-6~-7(1310/1550nm),>0 (650nm) |
||||
|
Spectral Width(nm) |
|
||||
|
Output Stability |
+0.05dB/15mins; +0.1dB/ 8hours |
||||
|
Modulation Frequencies |
CW / 2(650nm) / 270, 1K,2K (1310nm/1550nm) |
||||
|
Optical Connector |
FC/PC ( Interchangeable FC/SC/ST connectors can be optional) |
||||
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
||||
|
Battery Operating Time(hour) |
45 |
||||
|
Operating Temperature(oC) |
_ 10 ~ +60 |
||||
|
Storage Temperature(oC) |
_ 25 ~ +70 |
||||
|
Dimension(mm) |
172*82*33 |
||||
|
Weight |
295g |
||||
|
Recommendation |
RY-LS300 Handheld Light Source is designed for optimal use with RY-PM-300 Optical Power Meter for measuring optical loss on both sigle mode and multimode fiber cable. |
||||
