| Model: | S120B |
|---|---|
| Brand: | ShinewayTech |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment |
| Label: | Fiber Optic OTDR , Palm OTDR , Mini OTDR |
| Price: |
US $2100
/ pc
|
| Min. Order: | 1 pc |
| Last Online:27 Aug, 2015 |

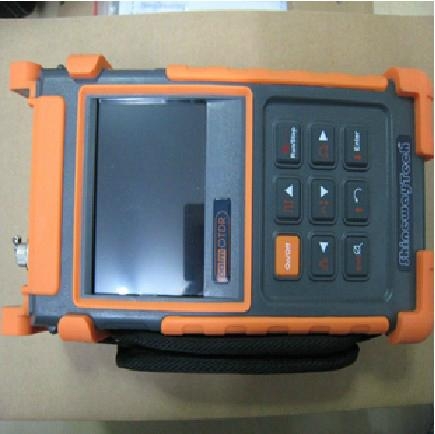

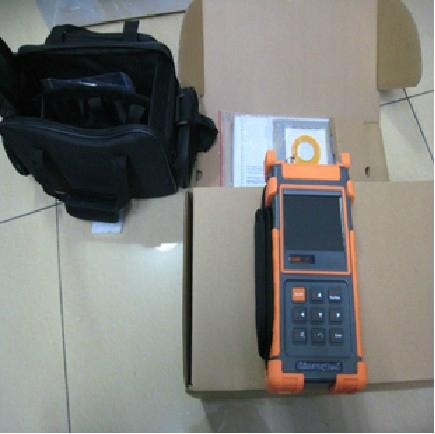

ShinewayTech S120B 30/28dB SM Mini Palm Fiber Optic OTDR
General Specifications
|
Model (1) |
Wavelength (±20nm) |
Dynamic Range(2) |
Event DeadZone(m)(3) |
Attenuation DeadZone(m)(3) |
|
palmOTDR-S120B |
1310/1550 |
30/28dB |
5 |
18 |
|
Selectable Range (Km) (4) |
0.1,0.3,0.5,1.3,2.5,5,10@850nm; 0.1,0.3,0.5,1.3,2.5,5,10,20,40,80@1300nm; 0.3,1.3,2.5,5,10,20,40,80,120,160,240@others |
|||
|
Pulse Width (5) |
10ns,30ns,100ns,300ns,1µs@850nm; 10ns,30ns,100ns,300ns,1µs,2.5µs@1300nm; 5ns,10ns, 30ns,100ns, 300ns,1µs,2.5µs,10µs,20µs@others |
|||
|
Averaging Time |
Quick, 15s, 30s, 1min, 2min, 3min |
|||
|
Distance Measure Accuracy |
±(1m + 5×10-5×distance + sampling space) |
|||
|
Attenuation Detect Accuracy |
±0.05 dB/ dB |
|||
|
Reflection Detect Accuracy |
±4 dB |
|||
|
Data Storage |
1000 records |
|||
|
Connectivity |
USB/RS-232 |
|||
|
Connector |
FC/PC(Interchangeable SC, ST) |
|||
|
Power Supply |
NiMH Battery / AC Adapter |
|||
|
Battery Life |
8 hrs continuous operation, 20 hrs standby (on one charge); recharging time < 4 hrs |
|||
|
Operating Temperature |
-20℃ ~ 50℃ |
|||
|
Storage Temperature |
-40℃ ~ 70℃ |
|||
|
Relative Humidity |
0~95% (non-condensing) |
|||
|
Weight |
1kg (2.2 lbs) |
|||
|
Dimensions (H×W×T) |
220×110×70mm (8.7×4.3×2.7 inch) |
|||
