Braided Sleeve for Wiring Harness
TT20 self-wrapping woven sleeve,
TT42 Double Layer self-wrapping woven sleeve
TW03 Self-wrapping woven sleeve
FG30 Exppandable Braided Sleeve
BHST Heat Shrinkable Braided Sleeve

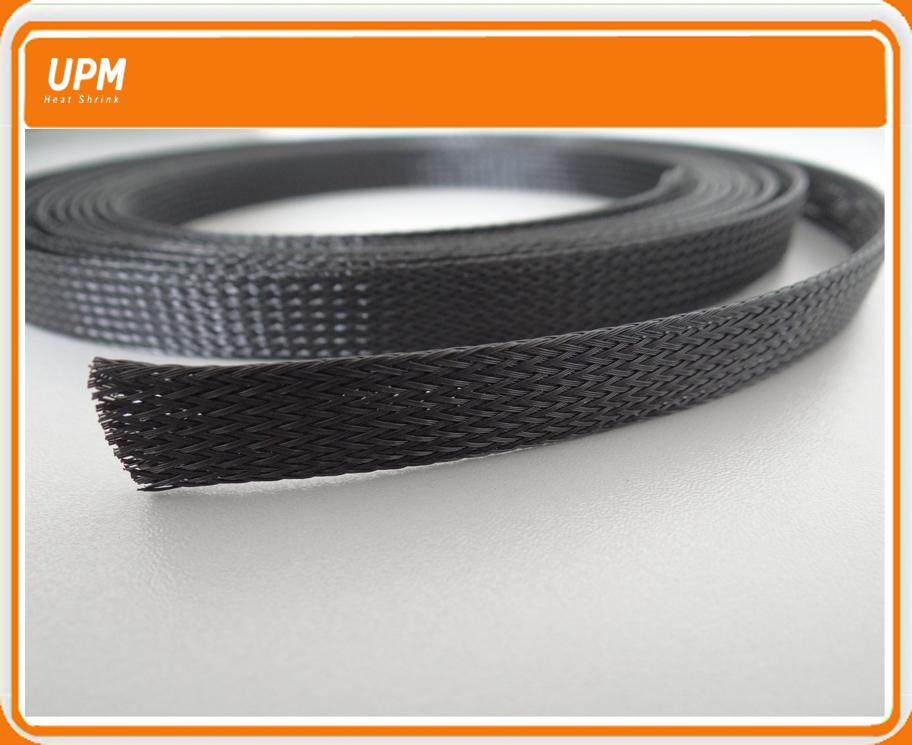

Introduction
Made of PET polyester monofilament, this product features excellent abrasion resistance, corrosion resistance, and flexibility. It is halogen-free flame retardant, and its unique woven structure allows for expandability and scalability, suitable for wrapping wire harnesses and fluid pipelines. It can smoothly pass through large or irregularly shaped components, with liquid flow in and out without accumulation due to its mesh structure. Widely used in military, automotive, aerospace, and new energy industries for protecting components such as wire harnesses, hoses, and pipes
Features
Operating temperature: -70°C~150°C
Halogen-free, RoHS compliant
Smooth laser or hot knife cutting
Flame retardant UL94 V0
Standard color: Black(-0) , Orange (-3)

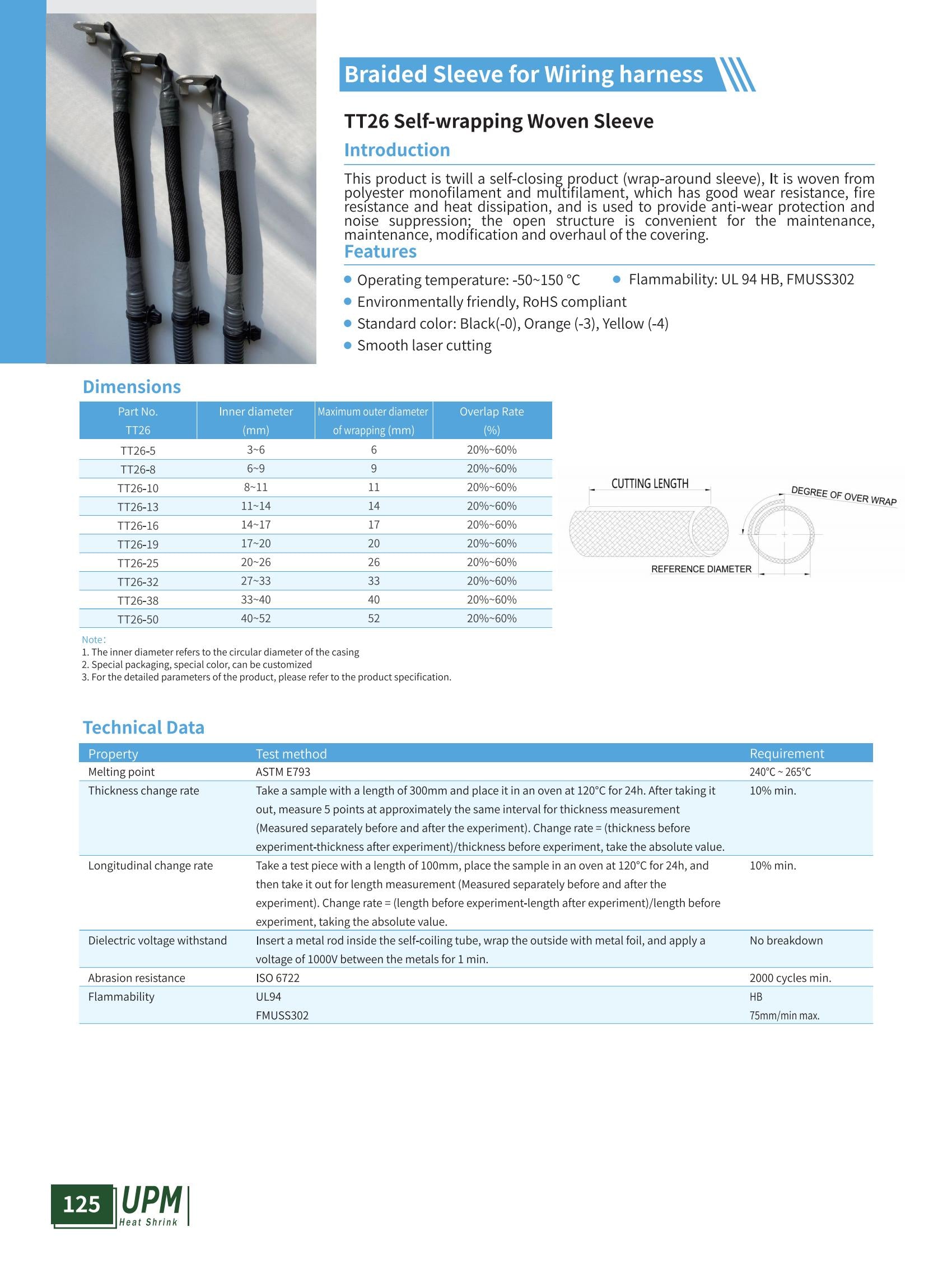

Introduction
This product is twill a self-closing product (wrap-around sleeve), braided by polyester monofilament and multifilament, which has good wear resistance, fire resistance and heat dissipation, and is used to provide anti-wear protection and noise suppression; the open structure is convenient for the maintenance, maintenance, modification and overhaul of the covering; it is suitable for the protection of the wiring harness and piping system of traditional road vehicles and new energy vehicles.
Features
Operating temperature: -50°C~150°C
Halogen-free and Environmentally friendly, RoHS compliant
Smooth laser or hot knife cutting
Flammability：UL94 HB，FMVSS302
Standard color: Black(-0), Orange (-3), Yellow (-4)

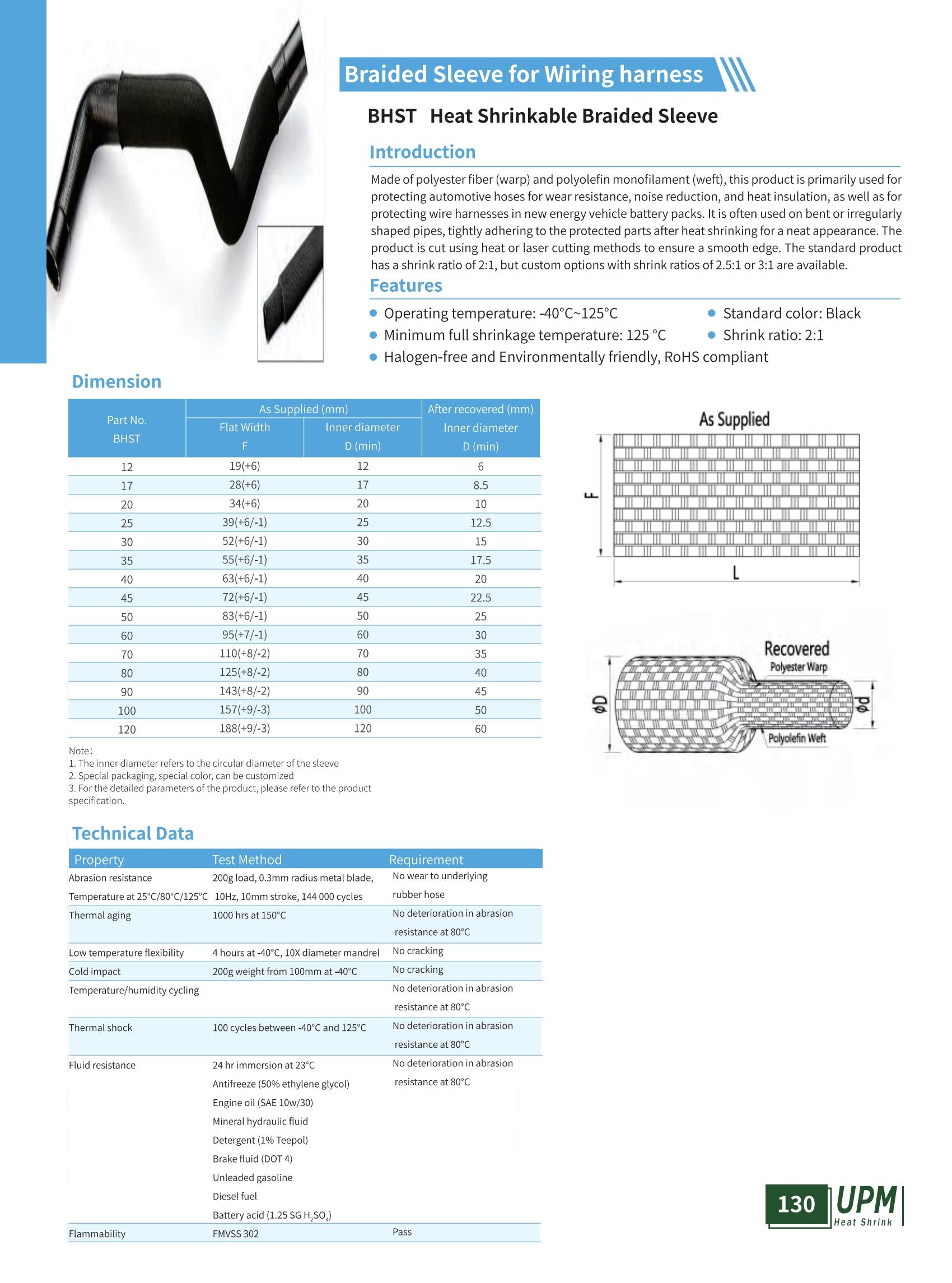

Introduction
Made of polyester fiber (warp) and polyolefin monofilament (weft), this product is primarily used for protecting automotive hoses for wear resistance, noise reduction, and heat insulation, as well as for protecting wire harnesses in new energy vehicle battery packs. It is often used on bent or irregularly shaped pipes, tightly adhering to the protected parts after heat shrinking for a neat appearance. The product is cut using heat or laser cutting methods to ensure a smooth edge. The standard product has a shrink ratio of 2:1, but custom options with shrink ratios of 2.5:1 or 3:1 are available.
Features
Operating temperature: -40°C~125°C
Minimum full shrinkage temperature: 125 °C
Halogen-free and Environmentally friendly, RoHS compliant
Standard color: Black
Shrink ratio: 2:1
