| Model: | CNM-YDC |
|---|---|
| Brand: | CNM |
| Origin: | Made In China |
| Category: | Construction & Decoration / Building Steel & Structure |
| Label: | hydraulic jack , jack and pump , post tensioning jack |
| Price: |
US $500
/ set
|
| Min. Order: | 1 set |
| Last Online:27 May, 2021 |

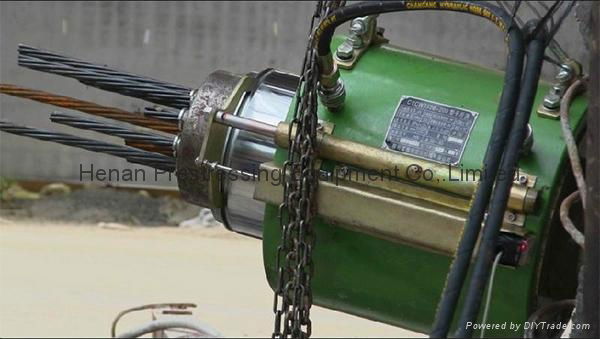

CNM-YDC Prestressed Cable Post Tensioning Jack:
Descriptions:
1. It is suitable for the tension of group anchors with 1860-2000 sizes, Φ15.24, Φ12.7 strands.
2. In some certain circumstance it can be used in the working of pushing, jacking and transforming and so on.
3. Easy to operate and used widely.
Notice: according to users' requirement, YDC prestressing jack jack can be configured.
Applications:
It is matched with prestressed anchorage widely used in the construction of bridge and buildings, railway and subway, water conservancy and hydropower engineering .
Features:
YDC Feed-through jacks are the new designed products in our company, are the upgrades of the primary jacks.
1. Using the new seals, to synchronous strengthen the seal-ability under great pressure.
2. Using special alloy steel with heat treatment process, reducing the cylinder's expansion ratio in the tensioning process. So that the life of seals and sealing performance can be improved about 20%.
3. In the tensioning the operating process, jacks is easily damaged under overpressure because of the jack-based pullback clinder, so we added the overpressure valve on the jacks to pressure production.
4. Meanwhile we improved the original of commonly used structure by wire disc and flanged disc, to make the bearing capacity for oil pressure strengthen. So that enormously reduce the possibility of mechanical damage due to improper operation.
YDC Series Of Central Hole Hydraulic Jack Technical Data:
| Item/Dimensions | Nominal Tension | Rated Oil Pressure | Pulling Stroke | Area of Tensioning Piston | Center hole Diameter | Minimum Working Space | The Reserved Length of Strand | Over dimension | ||
| KN | Mpa | mm | mm² | mm | L(mm) | E(mm) | K(mm) | out diameter(mm) | length(mm) | |
| YDC60 | 60 | 54 | 150 | 1119 | 30 | 874 | 59.5 | 387 | 70 | 287 |
| YDC130 | 130 | 50 | 160 | 2592 | 30 | 838 | 77 | 395 | 90 | 295 |
| YDC270 | 270 | 61 | 185 | 4418 | 30 | 888 | 89 | 415 | 105 | 315 |
| YDC650 | 650 | 50 | 150 | 13018 | 40 | 860 | 145 | 380 | 170 | 288 |
| YDC1100 | 1100 | 51 | 200 | 19792 | 80 | 1210 | 184 | 680 | 217 | 330 |
| YDC1500 | 1500 | 50 | 200 | 30257 | 90 | 1210 | 230 | 680 | 270 | 330 |
| YDC2000 | 2000 | 51 | 200 | 39820 | 110 | 1296 | 272 | 723 | 320 | 360 |
| YDC2500 | 2500 | 52 | 200 | 48381 | 127 | 1306 | 298 | 728 | 350 | 360 |
| YDC3000 | 3000 | 52 | 200 | 57727 | 145 | 1322 | 336 | 736 | 375 | 380 |
| YDC3500 | 3500 | 48 | 200 | 73435 | 162 | 1322 | 336 | 745 | 415 | 395 |
| YDC4000 | 4000 | 51 | 200 | 79168 | 162 | 1324 | 374 | 745 | 435 | 395 |
| YDC4600 | 4600 | 51 | 200 | 91028 | 180 | 1350 | 420 | 750 | 470 | 410 |
| YDC5000 | 5000 | 49 | 200 | 96997 | 200 | 1340 | 434 | 745 | 495 | 410 |
| YDC5500 | 5500 | 50 | 200 | 110506 | 198 | 1350 | 520 | 800 | 526 | 498 |
| YDC6500 | 6500 | 49 | 200 | 67544 | 212 | 1350 | 550 | 850 | 568 | 538 |
| YDC9000 | 9000 | 51 | 200 | 78618 | 275 | 1400 | 620 | 900 | 680 | 603 |
| YDC12000 | 12000 | 51 | 200 | 231300 | 275 | 1400 | 620 | 900 | 780 | 603 |
Contact with me to know more:
We are PT Manufacturer from China, our full products range for post tensioning and pre-strssing construction:
1. Materials: pc strand, YJM anchor system(monostrand anchor, multistrands anchor), ducts(metal ducts, HDPE plastic ducts)
2. Equipment: Hydraulic Jack(QYC mono jack, YDC multi-strand tensioning jack), electric oil pump, YH30 embossing machie(onion jack), GYJ500 extrusion machine, ZG130 ducts making machine, grouting pump and mixer for post tensioning).
