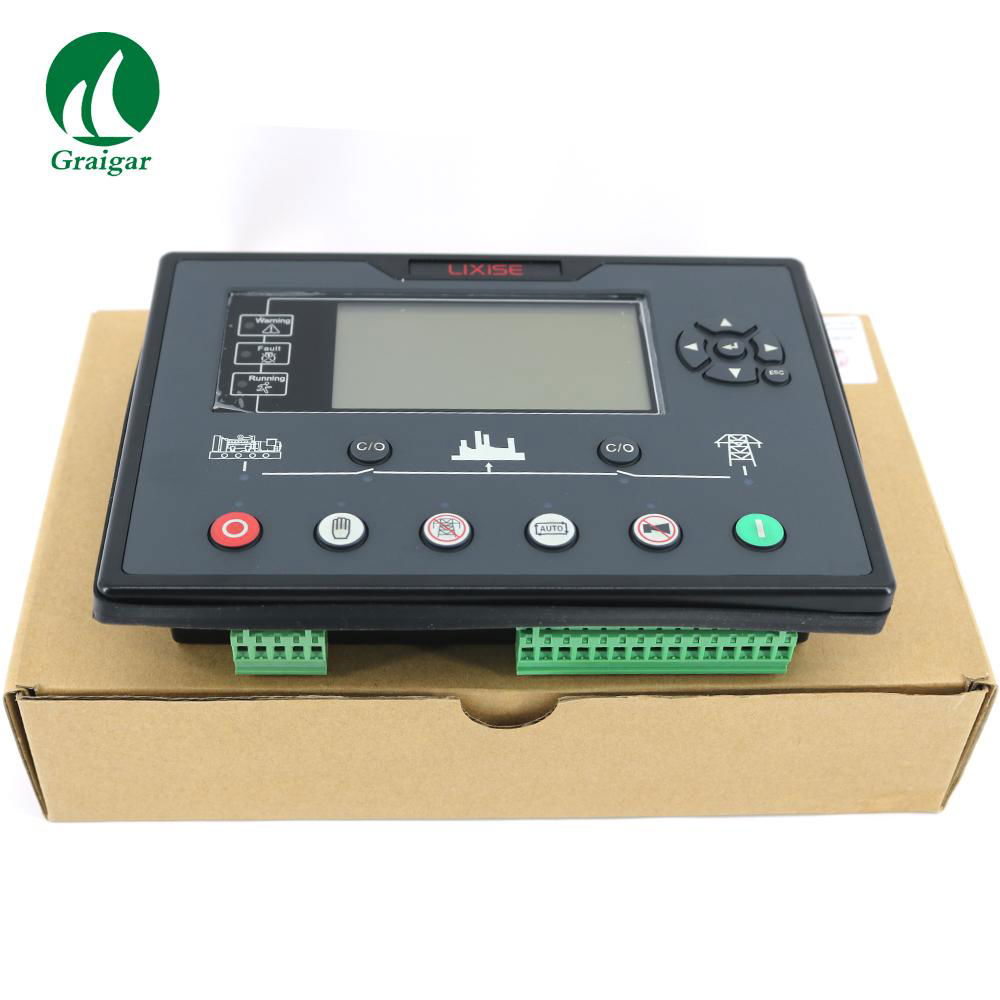

LXC7220 series power station automation controller used for a single diesel generating sets automation and monitoring system, through the remote start signal control generating set since the rev. Stop; Using 32-bit microprocessor and embedded real-time systems technology, implementation of generating set automatic starting/stopping, various parameters precision measurement, alarm, protection and the "three remote" function. Big screen LCD controller USES a (240 * 128 LCD) graphic display, under a page can show that almost all of the important parameters, dispense pages. Can be set to Chinese, English, Spanish, Russian, all parameters can be adjusted from the controller panel, also can use PC through USB, RS485 and GPRS remote adjusting and monitoring. Its compact structure, simple connection, high reliability, can be widely used in various types of generating set automation system, can also be used for fire pump, air compressor of automation control system.

LXC7220: on the basis of LXC7210 increased mains power monitoring and mains/power automatic switch control function (AMF), especially suitable for the single machine automation system.

Product performance and features:

1, using 32-bit ARM microcontroller, high hardware integration, further improve the reliability.

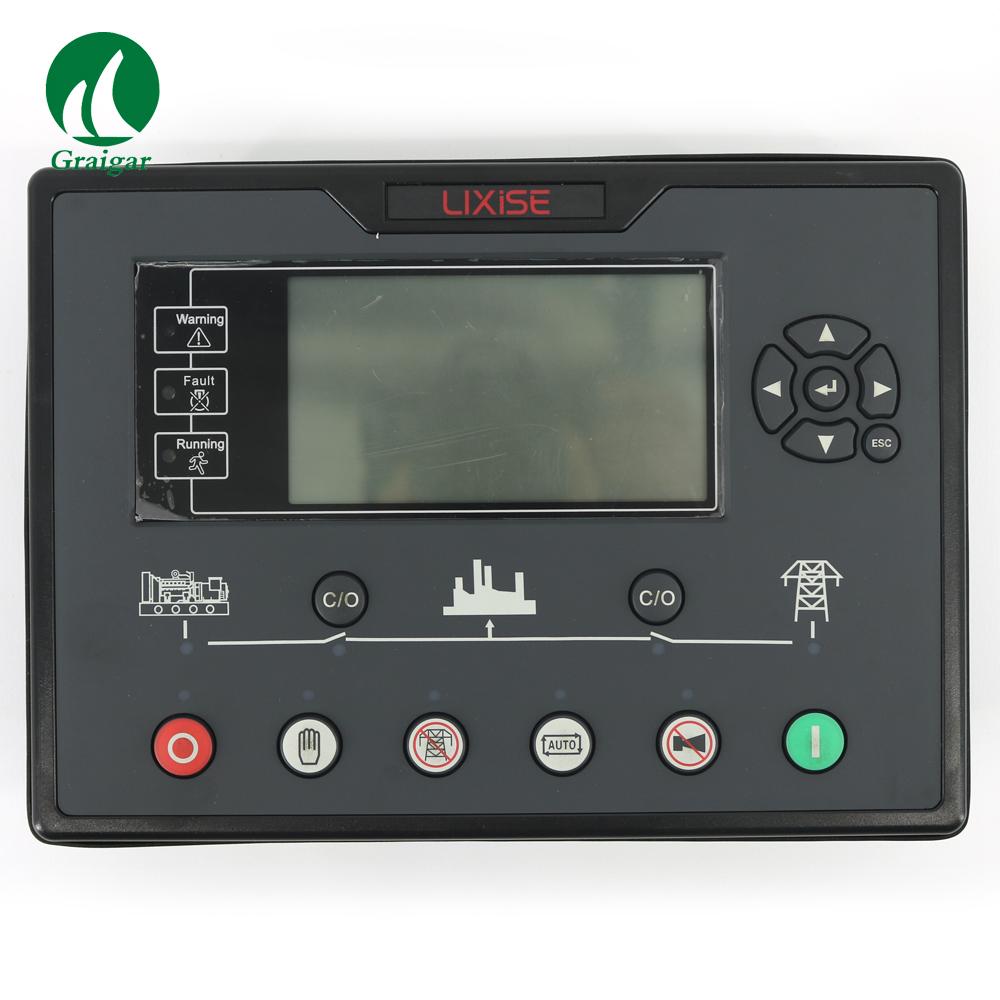

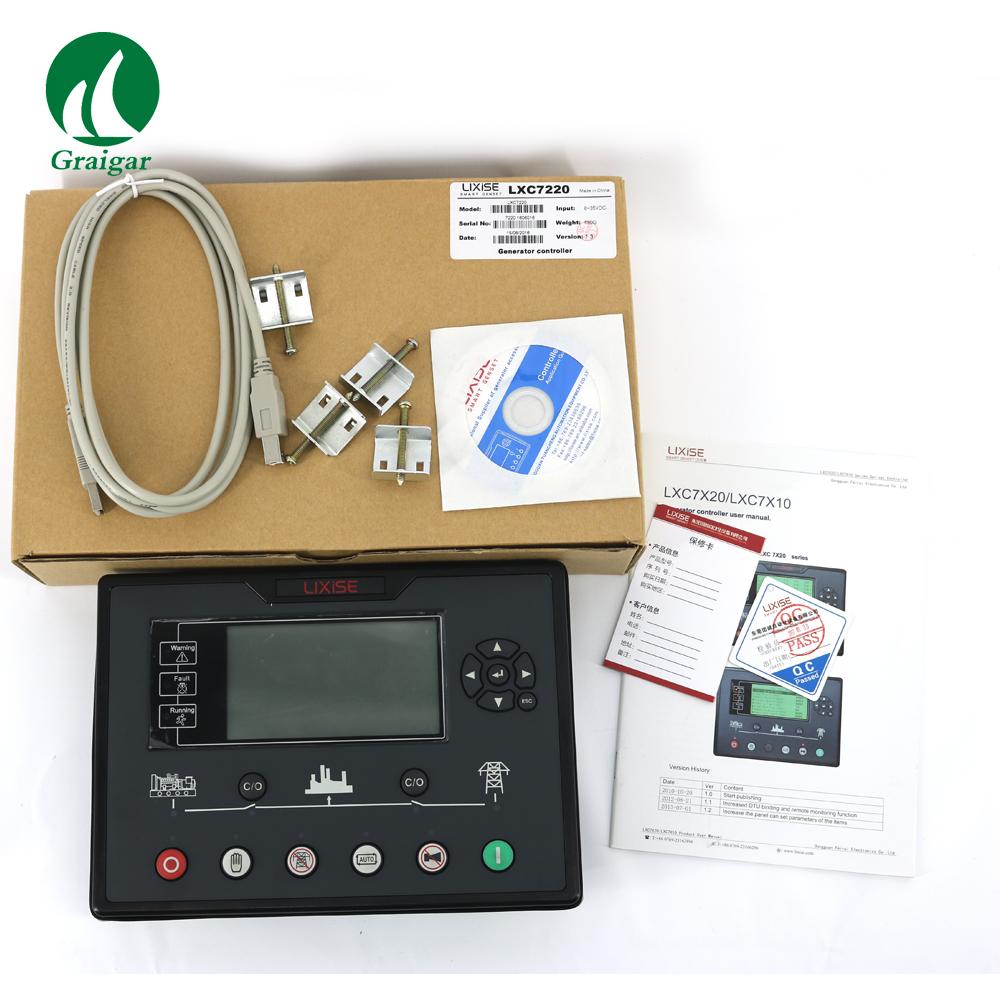

2, large LCD display is 240 x128 LCD, backlight, Chinese, English and other languages optional interface, all parameters can be set in the controller, convenient deb ing personnel of commissioning.

3, have advanced iot function, through GPRS mobile network and Internet connectivity, in any place can remote monitoring network.

4, especially for the leasing industry management provides the perfect solution: leased out through PC remote management unit, to monitor all operation parameters (pressure, temperature, voltage, current, power, etc.), may at any time change the configuration in order to protect the unit by improper application, can record 200 article detailed fault information, including: the fault time, reason, at the time of voltage, current, power, oil pressure, water temperature and other key parameters, and can be uploaded to the monitoring machine at any time. To facilitate the lease management item otherwise multilevel password management.

5, with RS485 communication interface, using the MODBUS protocol can realize "three remote" function.

6, to realize automatic diesel or gas generator set starting/stopping, break-brake switch (ATS) and perfect protection functions such as fault display,

7, LXC7220 for a single generator set.

Special note: all parameters can be adjusted from the controller front panel.

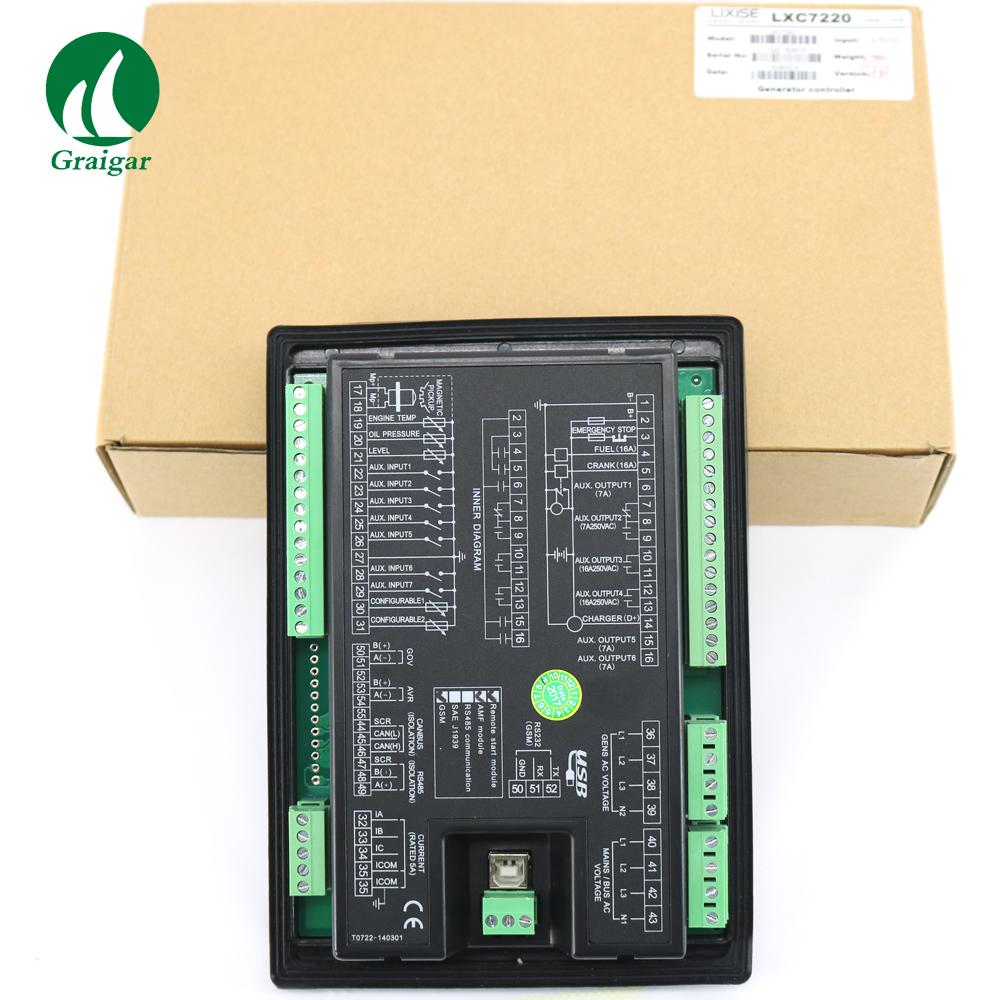

Specification:

Continuous working voltage: DC8.0 V to 35.0 V power supply

The machine power consumption: < 3 w (standby mode: 2 w or less)

Alternator voltage input: 20 V AC - 360 - V AC (ph - N) three Phase four wire

Three Phase four wire: 30 V AC - 620 - V AC (ph - ph) 3 Phase 3 wire

Three-phase three-wire: 20 V AC - 360 - V AC (ph - N)

Single-phase secondary: 20 V AC - 360 - V AC (ph - N)

Two phase three lines:

Ac generator frequency: 50/60 hz

Speed sensor voltage Vpp: 2.2 to 80 v (fengfeng value)

Speed sensor frequency: biggest 10000 hz

Starter relay output: 16 amp supply voltage output controller

Fuel relay output: 16 amp supply voltage output controller

Programmable relay output 1:7 Amp 250 vac passive output

"Programmable relay output Amp 250 vac passive output

Programmable relay output 3:16 Amp 250 vac passive output

Since Amp programmable relay output 250 vac passive output

5: programmable relay output 7 amp controller output voltage (LXC7220)

6: programmable relay output 7 amp controller output voltage (LXC7220)

Dimensions: 210 mm x 152 mm x 48 mm

Hole size: 186 mm x 141 mm

Ct (current transformer) secondary current, rated 5 a

Working conditions: temperature, humidity (25 ~ + 70 degree (20 ~ 90) %

Storage conditions: temperature: (40 ~ + 80 degree

Protection grade: IP55: when equipped with waterproof rubber ring between controller and the control panel.

IP42: when no add waterproof rubber ring between controller and the control panel.

Dielectric strength: object: between the input/output/power supply

Reference: IEC688-1992

Test method: AC1.5 kV / 1 min 3 ma leakage current

Weight: 0.68 kg
