PCB RGB LED-illuminated Tact Button Switch

Model:TS7-0000RU
Brand:Fvwin
Origin:Made In China
Category:Electronics & Electricity / Switch / Push Button Switch
Label:RGB Tact Switch , RGB Button , illuminated Switch
Price: US $1 / pc
Min. Order:2000 pc
Inquire Now

Member Information

Detail

Dongguan Fvwin Electronics Co.,Ltd

Free MemberGuang Dong - China
Last Online:19 Oct, 2021

View all products. (20)

Product Description

Mini RGB LED Tact Button Switches

The TS7 series SPST-NO momentary tactile switches offer LED illumination with tri-color RGB LED lighting LEDs.

Available in two-color, or three-color RGB light models, the tricolor version is accomplished when the red and green LEDs are simultaneously illuminated.

Introduction

Illuminated Pushbutton with Multiple LED Color Options,This latest illuminated Pushbutton LED tact switches design features an SPST circuit. RGB LED color options are available.

Applications

Applications include computer servers/peripherals, performance audio, instrumentation, telecommunications/networking and more.

Keywords: RGB Switches, RGB PCB Tact Switches, PCB Switches, LED Tactile Switches, Non Illuminated Tact Switches

Additional information

Product Type



Tact Button Switch

Product Function

Momentary Switch

Configuration

1NO (SPST) [push to make]

Illumination

Full Illumination

Size

7x7x7mm

LED options

RGB

Colour / Material

Plastic

Cap Dimensions (mm)

Without Cap

Cap/Actuator Shape

Without Cap

Terminal Options

PCB Terminals (THT)

Orientation

Straight (Vertical)



Model:TS7

Rating: DC 12V 50mA

Total Travel: 0.25+/-0.1mm

Terminal: Right angle,SMD,Through-in

Tactile Switch Dimension:7*7*7mm

Product Type: Tact Switch

Function: Momentary

LED Color:Red and Blue/Red and Green/Red-Yellow Bi-color/RGB

Caps:10mm round and 10*10mm square caps



TS7 series illuminated SMT tact switch offers high bright LED lights and reduced space usage on board “2 in 1.” It’s excellent ergonomics, sharp tactile feel and audile click make it ideal for network infrastructure, telecom and medical applications that need to perform in the harshest environments.

introduced its tri-color TS7 series of LED illuminated tactile switches. Available in a SPST-NO (momentary) configuration, the switches are available in red, yellow, blue, green and bright green LEDs.

The keycaps has been opening the mould.

The TS7 is available in two or three-led color light models. The tri-color is accomplished when the red and green LEDs are simultaneously illuminated , producing the third color, blue.

The TS7 provides an operating force of 160 gf typical with a service life of 500,000 operations minimum,  The contacts offer a resistive load rating of 5 VDC to 12 VDC at 1 mA to 50 mA while operating in a temperature range of -25° to +70°C in 35% to 85% humidity without icing or condensation. The switches are RoHS compliant

These switches may be used in applications that require visual feedback confirming operation such as test and measurement, office automation, amusement, industrial controls, and medical devices.



Specification:

Rating:DC 12V 50mA

Contact Resistance:100mΩ Max

Insulation Resistance:100mΩ Min(DC 250V)

Withstand Voltage:AC 250V(50-60Hz) for 1 minute

Operation Force:160+80/-30gf

Total Travel:0.20+/-0.15mm

Mechanical Life:50,000 Cycles(min)

Number of Poles:SPST

Latching Option:Momentary

Terminal Options:Surface Mount and Through into



Feature:

7.0mm x 7.0mm Miniature tactile switch
160 +/-50 gram force
RGB or Bi-color LED (Red/Green,Red/Blue) illumination options
Surface Mount and through into Design






Product Image

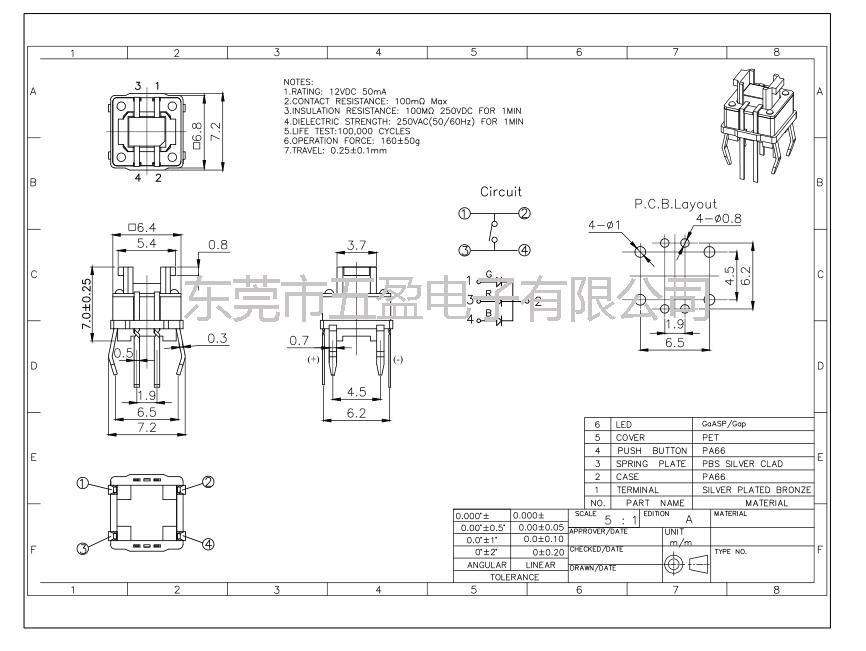

PCB RGB LED-illuminated Tact Button Switch 1
Img 1

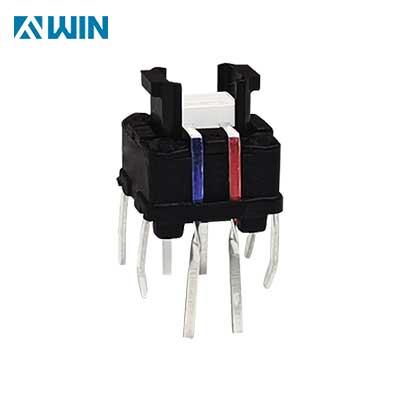

PCB RGB LED-illuminated Tact Button Switch 2
Img 2

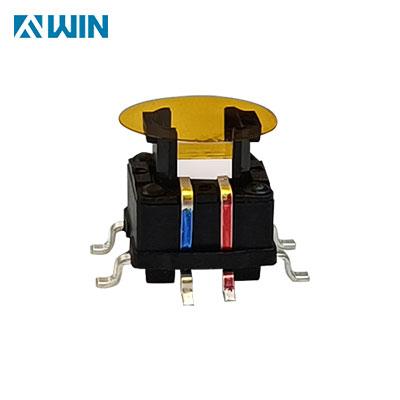

PCB RGB LED-illuminated Tact Button Switch 3
Img 3
PCB RGB LED-illuminated Tact Button Switch 4
Img 4
PCB RGB LED-illuminated Tact Button Switch 5
Img 5
