Description:

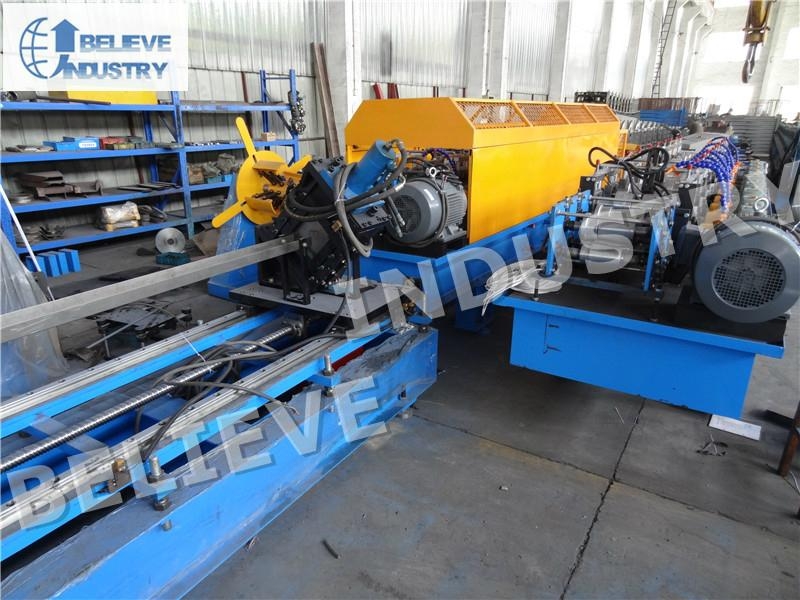

According to specific requirements of customers, we can manufacture stud & track forming machines with different specifications. Equipped with combined mould, one machine can manufacture studs and tracks with different width. The processing flow of this equipment is as follows: decoiling-guiding-forming-cutting. The stud & track forming machine mainly includes decoiler, roll former, cutter, hydraulic pump station, product table, and control cabinet, etc.

Properties:
The frame of this stud & track forming machine adopts formed steel construction and after welded, this machine utilizes integrity processing technology. It enjoys rational and beautiful structure, strong carrying ability, and stable and reliable performance. The forming roller of this machine is designed by professional technicists.

The machine undergoes high precision processing and heat treatment before chromeplate. So this machine is characterized by high forming precision and long service life. The main components of this device are from products of famous brands, thus ensuring the whole performance and quality. Controlled by PLC, this machine is easy to operate, thus workers without special training can operate it very well. This equipment is convenient to debug, and enjoys low noise and high efficiency.

Operation and Points That Need Attention:
The stud & track forming machine is totally controlled by PLC. So only by inputting related production data such as number of products, length and punching dimension, users can start this machine to do manufacturing. If users want to adjust this machine or something else, they have to stop the machine first and carry out relevant operation.

Maintenance and Lubrication:
Users should regularly do lubrication for chains, wheels, bearings and speed reducer, etc. And the forming rollers and machine should be kept clean.

Transportation and Packing:
This kind of machine should adopt nude packaging and sea shipping by container.

Parameters of the Machine:
1. Suitable material: cold rolling steel, hot rolled coils, galvanized coils and general carbon steel, etc.
2. Suitable thickness: 0.45-1.2mm, or other thickness
3. Forming specifications: depending on specific requirements of customers
4. Forming speed: 10-15m/min
5. Main motor power: 5.5-11Kw (depending on specific requirements of users)
6. Hydraulic punching: hydraulic cutting
7. Hydraulic station power: 3Kw (depending on specific requirements of users)
8. Control system: PLC systems from Mitsubishi and Panasonic products, electrical appliances of famous brands
9. Optional accessories: hydraulic uncoiler
