| Model: | HY0002 |
|---|---|
| Brand: | HY |
| Origin: | Made In China |
| Category: | Transportation / Vessel Parts |
| Label: | UHMWPE ROPE , MOORING ROPE , HIGH STRENGTH ROPE |
| Price: |
US $20
/ KG
|
| Min. Order: | 100 KG |
| Last Online:14 Mar, 2016 |
General Description

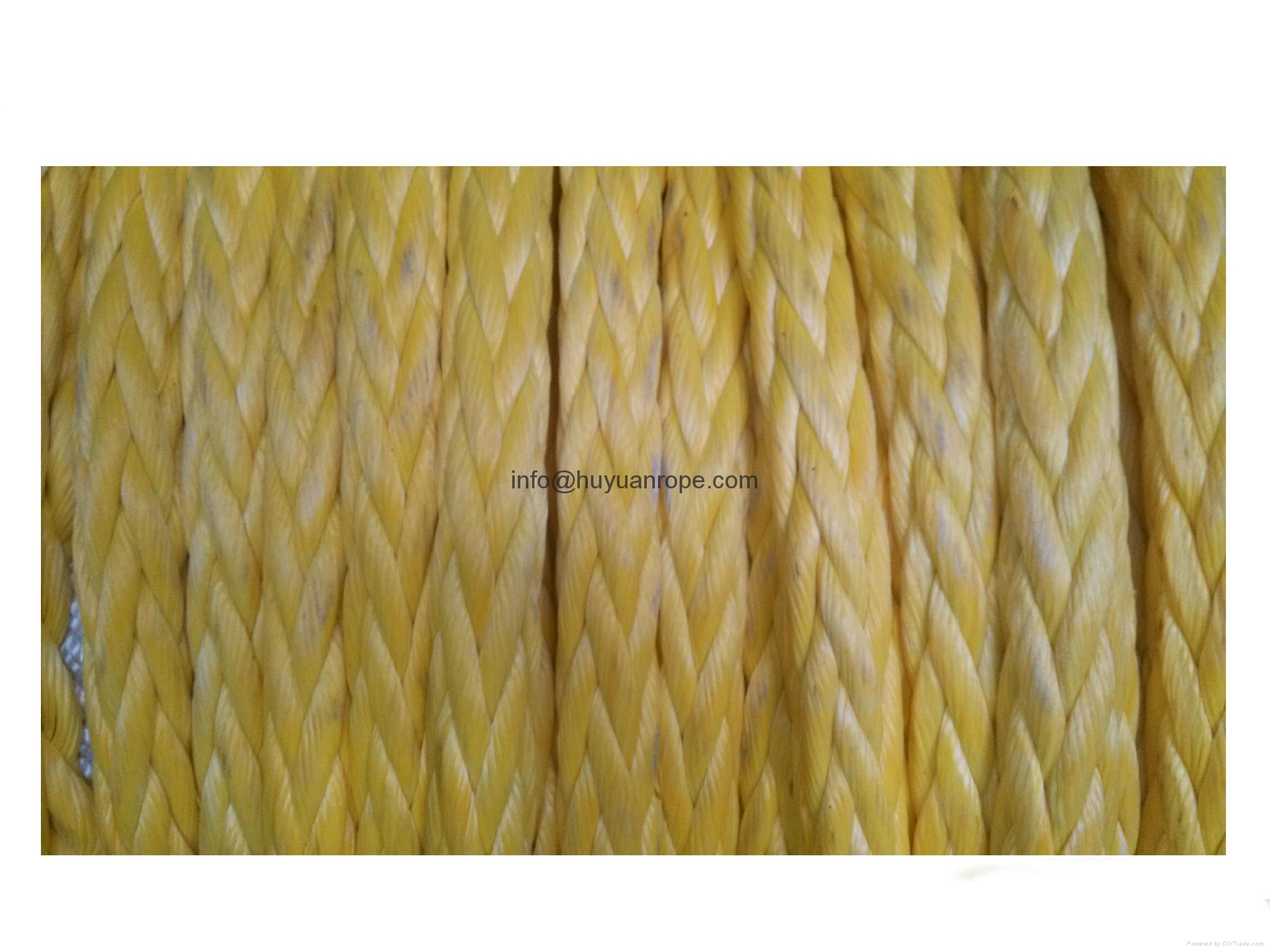

Products Description: It’s woven by separate six “S” and “Z” strands, which makes the rope does not occurred rotation, the rope is hollow woven. The characteristics of the rope is strong, widely used in the field of marine rescue, defense, ship industry, offshore operations, ship mooring and other fields.
Main Performance
Material:UHMWPE
Specific gravity: Density 0.975 floating
Melting point: 145 ℃
Application: marine, fishing, offshore, industry
Color: Yellow, blue, red, grey, ect.
Length per coil: 220m
Spliced strength: ±10% lower
Weight and length tolerance: ±5%
MBL: ISO 2307 standard
Other sizes can be customized
Parameter Table
| dia | cir | weight | mbl | ||
| mm | inch | kgs/100m | lbs/100ft | ton | kn |
| 6 | 3/4 | 2.3 | 1.5 | 3.16 | 31.6 |
| 8 | 1 | 4 | 2.5 | 5.18 | 51.8 |
| 10 | 1–1/4 | 6.1 | 37 | 7.94 | 79.4 |
| 12 | 1–1/2 | 8.7 | 5.3 | 13 | 130 |
| 14 | 1–3/4 | 11.7 | 7.1 | 15 | 150 |
| 16 | 2 | 15.1 | 9.2 | 19.6 | 196 |
| 18 | 2–1/4 | 19 | 11.6 | 24.3 | 247 |
| 20 | 2–1/2 | 23.2 | 14.3 | 30.2 | 302 |
| 22 | 2–3/4 | 28.1 | 17.2 | 35.9 | 359 |
| 24 | 3 | 33.1 | 20.4 | 42.1 | 421 |
| 26 | 3–1/4 | 38.4 | 24 | 48.3 | 483 |
| 28 | 3–1/2 | 44.5 | 27.8 | 55.1 | 551 |
| 30 | 3–3/4 | 50.6 | 31.8 | 61.9 | 619 |
| 32 | 4 | 57.5 | 36.2 | 70.3 | 703 |
| 34 | 4–1/4 | 64.8 | 40.8 | 77.8 | 778 |
| 36 | 4–1/2 | 72 | 45.8 | 84.2 | 842 |
| 38 | 4–3/4 | 79.8 | 51 | 93.6 | 936 |
| 40 | 5 | 88.1 | 56.5 | 102 | 1020 |
| 42 | 5–1/4 | 95.5 | 62.2 | 111 | 1090 |
| 44 | 5–1/2 | 106 | 68.3 | 118 | 1180 |
| 46 | 5–5/8 | 114.6 | 74.6 | 130 | 1280 |
| 48 | 6 | 125 | 81.3 | 138 | 1380 |
| 50 | 6–1/4 | 135.4 | 88 | 1746 | 1485 |
| 52 | 6–1/2 | 146 | 95.3 | 159 | 1590 |
| 56 | 7 | 169 | 111 | 183 | 1830 |
| 60 | 7–1/2 | 193 | 127 | 205 | 2050 |
| 64 | 8 | 220 | 144 | 230 | 2300 |
| 68 | 8–1/2 | 248 | 163 | 256 | 2560 |
| 72 | 9 | 278 | 182 | 285 | 2850 |
| 76 | 9–3/8 | 309 | 204 | 315 | 3214 |
| 80 | 10 | 343 | 225 | 355 | 3480 |
| 88 | 11 | 417 | 272 | 429 | 4210 |
| 96 | 12 | 497 | 324 | 510 | 5000 |
| Payment Terms: | TT/LC |
|---|---|
