| Model: | HY0007 |
|---|---|
| Brand: | HY |
| Origin: | Made In China |
| Category: | Transportation / Vessel Parts |
| Label: | synthetic winch rope , uhmwpe rope , pull rope |
| Price: |
US $30
/ KG
|
| Min. Order: | 10 KG |
| Last Online:14 Mar, 2016 |

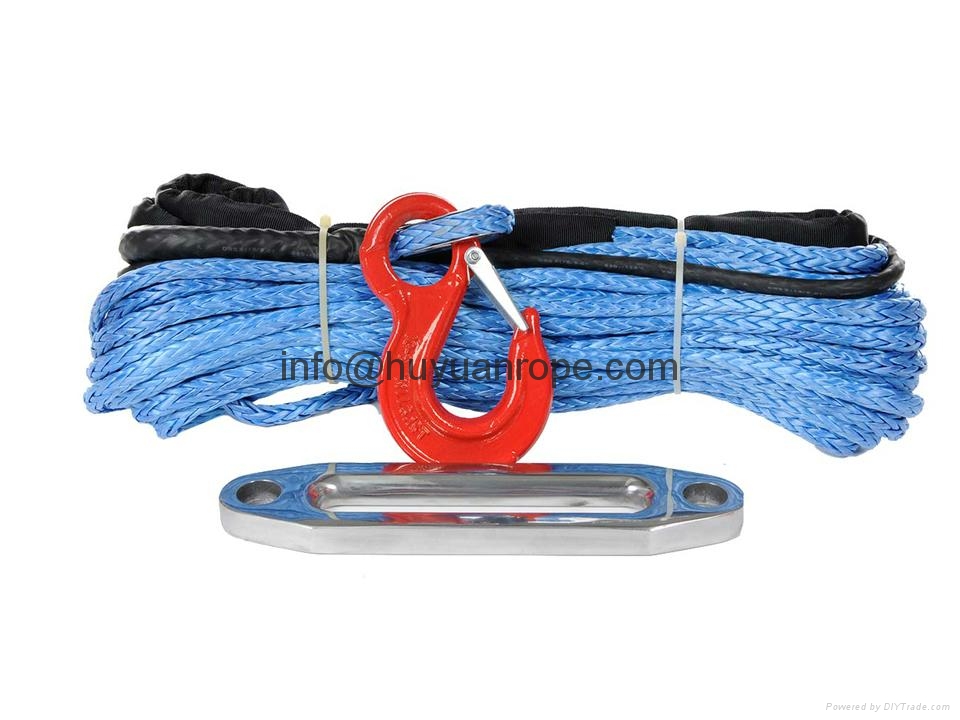

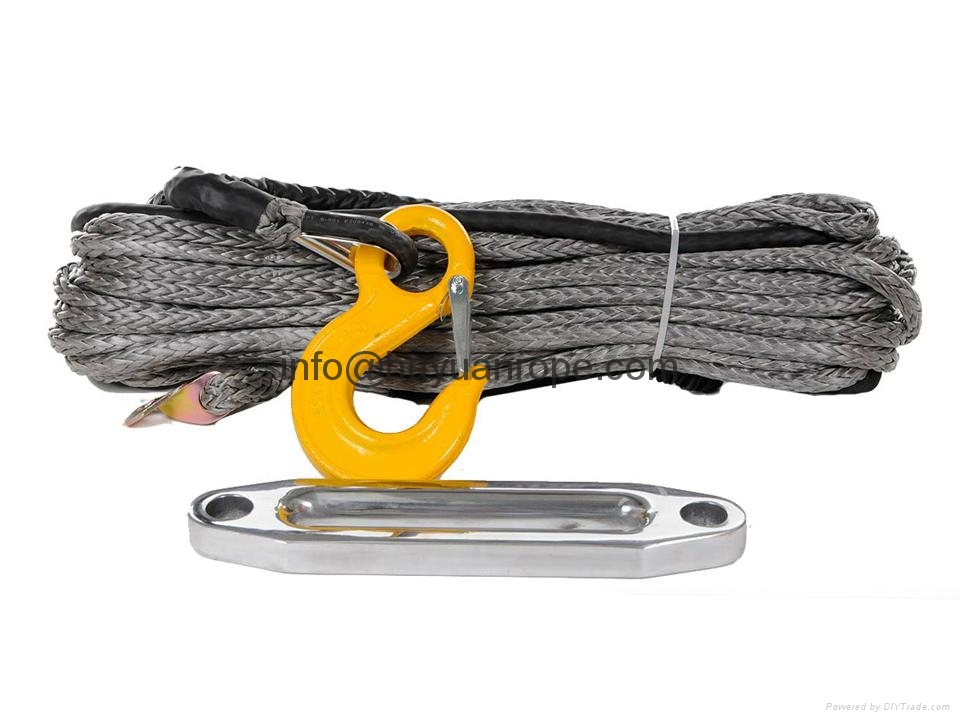

12 strand or double braided synthetic winch rope
Diamter from 4mm to 24mm
Length: 15m, 28m, 30m, 50m, 100m, 200m, 500m, 1000m, 2000m,etc.
Parts: thimble, hook, sleeve,lug
Color: red, blue, green, orange, yellow, gray, black, etc
.
| DIA | WT | B/L |
| MM | KG/100M | TON |
|
6 |
2.3 | 3.16 |
| 8 | 4 | 5.18 |
| 10 | 6.1 | 7.94 |
| 12 | 8.7 | 13 |
| 14 | 11.7 | 15 |
| 16 | 15.1 | 19.6 |
| 18 | 19 | 24.3 |
| 20 | 23.2 | 30.2 |
| 22 | 28.1 | 35.9 |
| 24 | 33.1 | 42.1 |
| Payment Terms: | TT/LC |
|---|---|
