High precision NFE255-11 French Standard Washer with ISO

Model:NFE25511
Brand:Rbo
Origin:Made In China
Category:Industrial Supplies / Machine Hardware / Nuts & Bolts
Label:French washer , lock washer , steel washer
Price: US $0.06 / pcs
Min. Order:1000 pcs
Inquire Now

Member Information

Detail

Product Description

Basic information

Model NO.: NFE25511

Material: Carbon Steel

Combination Washer Packaging: Half a Pack

Delivery Time: 3-20 Working Days

Surface Treatment: Dacromet ,Blue&White Zinc ,Black Finishing

Trademark: Rbo

Specification: DIN, ANSI, BS, UNI

Type: Spring Washer

Combination Washer Structure: Contact Washer

Spring Washer Type: Standard

Item: Nfe25511

Shipping Method: by Sea ,by Air or ClientsRequirements

MOQ: 1000 PCS

Transport Package: Standard Packaging

Origin: China

NFE25511 Dimension

d dc h H
Nominal Diameter Max Min Nominal Tolerance Nominal Tolerance Max Min
3 3.35 3.1 6 ±0.24 0.5 ±0.03 0.9 0.7
8 ±0.29 0.6 1 0.8
10 ±0.29 0.6 1.2 0.95
4 4.4 4.1 8 ±0.29 0.8 1.2 1
10 ±0.29 0.9 ±0.04 1.4 1.15
14 ±0.35 1 1.8 1.4
5 5.4 5.1 10 ±0.29 1 1.6 1.25
12 ±0.35 1.1 1.8 1.45
16 ±0.35 1.2 2.1 1.7
6 6.4 6.1 12 ±0.35 1.2 1.85 1.55
14 ±0.35 1.3 2.1 1.75
18 ±0.35 1.4 2.5 2.1
8 8.58 8.2 16 ±0.35 1.4 2.2 1.8
18 ±0.35 1.4 2.35 1.9
22 ±0.42 1.4 ±0.05 2.7 2.2
10 10.56 10.2 20 ±0.42 1.6 2.6 2.1
22 ±0.42 1.6 2.75 2.25
27 ±0.42 1.8 3.1 2.6
12 12.83 12.4 24 ±0.42 1.8 2.9 2.4
27 ±0.42 1.8 3.1 2.6
32 ±0.5 2 3.6 3.1
14 14.83 14.4 30 ±0.42 2.4 ±0.06 3.7 3.2
16 16.83 16.4 32 ±0.5 2.8 4.1 3.6
20 21.02 20.05 40 ±0.5 3.2 4.9 4.3

NFE25511 Material

Materials Our Advice For You Below :
Spring Steel:     65Mn ≤200°C,Under Normal Conditions
Stainless Steel:SS304、SS316 ≤300°C,Under Corrosive Conditions
             Customized As Per Client's Requirements

NFE25511 Surface Treatments

Dacromet , Gromet , Plated Zinc

NFE25511 Application

Widely used in electric control cabinet, electrical equipment, railway, subway, mechanical and electrical equipment, communication equipment, elevator, rolling stock assembly, medical machinery and equipment and special equipment assembly industry, etc..


Product Image

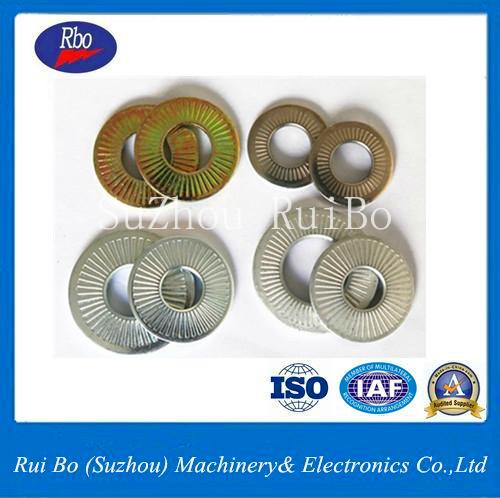

High precision NFE255-11 French Standard Washer with ISO 1
Img 1
High precision NFE255-11 French Standard Washer with ISO 2
Img 2
High precision NFE255-11 French Standard Washer with ISO 3
Img 3
High precision NFE255-11 French Standard Washer with ISO 4
Img 4
High precision NFE255-11 French Standard Washer with ISO 5
Img 5
