| Model: | NFE25511 |
|---|---|
| Brand: | Rbo |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Nuts & Bolts |
| Label: | washers , lock washer , retaining washers |
| Price: |
US $0.06
/ pc
|
| Min. Order: | 1000 pc |
| Last Online:20 Jan, 2020 |
Basic information

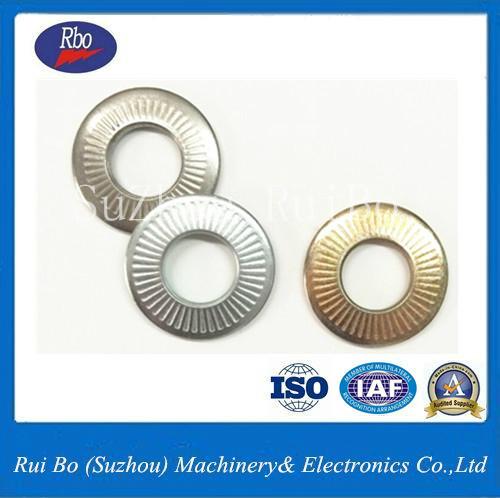

Name: NFE25511 French Standard Washer
Model NO.: M3-M20
Type: Lock Washer
Material: Spring Steel：65Mn Stainless Steel：SS304、SS316
Customized As Per Client's Requirements
Combination Washer Structure: A Type
Combination Washer Packaging: Half a Pack
Spring Washer Type: Standard
Size: M3-M20
Delivery Time: 3-20 Working Days
Production Ability: 5000000 PCS / Month
LoadingPort: Shanghai Port
ODM&OEM: Supported
MOQ: 1000 PCS
Payment Term: T/T,Westunion ,L/C
Surface Treatment: Dacromet , Gromet , Plated Zinc
Origin: China
 |
 |
 |
 |
NFE25511 Dimension
| d | dc | h | H | |||||
| Nominal Diameter | Max | Min | Nominal | Tolerance | Nominal | Tolerance | Max | Min |
| 3 | 3.35 | 3.1 | 6 | ±0.24 | 0.5 | ±0.03 | 0.9 | 0.7 |
| 8 | ±0.29 | 0.6 | 1 | 0.8 | ||||
| 10 | ±0.29 | 0.6 | 1.2 | 0.95 | ||||
| 4 | 4.4 | 4.1 | 8 | ±0.29 | 0.8 | 1.2 | 1 | |
| 10 | ±0.29 | 0.9 | ±0.04 | 1.4 | 1.15 | |||
| 14 | ±0.35 | 1 | 1.8 | 1.4 | ||||
| 5 | 5.4 | 5.1 | 10 | ±0.29 | 1 | 1.6 | 1.25 | |
| 12 | ±0.35 | 1.1 | 1.8 | 1.45 | ||||
| 16 | ±0.35 | 1.2 | 2.1 | 1.7 | ||||
| 6 | 6.4 | 6.1 | 12 | ±0.35 | 1.2 | 1.85 | 1.55 | |
| 14 | ±0.35 | 1.3 | 2.1 | 1.75 | ||||
| 18 | ±0.35 | 1.4 | 2.5 | 2.1 | ||||
| 8 | 8.58 | 8.2 | 16 | ±0.35 | 1.4 | 2.2 | 1.8 | |
| 18 | ±0.35 | 1.4 | 2.35 | 1.9 | ||||
| 22 | ±0.42 | 1.4 | ±0.05 | 2.7 | 2.2 | |||
| 10 | 10.56 | 10.2 | 20 | ±0.42 | 1.6 | 2.6 | 2.1 | |
| 22 | ±0.42 | 1.6 | 2.75 | 2.25 | ||||
| 27 | ±0.42 | 1.8 | 3.1 | 2.6 | ||||
| 12 | 12.83 | 12.4 | 24 | ±0.42 | 1.8 | 2.9 | 2.4 | |
| 27 | ±0.42 | 1.8 | 3.1 | 2.6 | ||||
| 32 | ±0.5 | 2 | 3.6 | 3.1 | ||||
| 14 | 14.83 | 14.4 | 30 | ±0.42 | 2.4 | ±0.06 | 3.7 | 3.2 |
| 16 | 16.83 | 16.4 | 32 | ±0.5 | 2.8 | 4.1 | 3.6 | |
| 20 | 21.02 | 20.05 | 40 | ±0.5 | 3.2 | 4.9 | 4.3 | |
NFE25511 Material
| Materials | Our Advice For You Below : |
| Spring Steel： 65Mn | ≤200°C，Under Normal Conditions |
| Stainless Steel：SS304、SS316 | ≤300°C，Under Corrosive Conditions |
| Customized As Per Client's Requirements |
NFE25511 Surface Treatments
Dacromet , Gromet , Plated Zinc
NFE25511 Application
Widely used in electric control cabinet, electrical equipment, railway, subway, mechanical and electrical equipment, communication equipment, elevator, rolling stock assembly, medical machinery and equipment and special equipment assembly industry, etc..
