I. Feeder paper department
1. The machine clutch:
1) The machine clutch electric control with alarm, moving last warning bell ring, ensure workers safety.
2) Pneumatic interlocking device.
3) The main motor adopts frequency conversion motor, frequency conversion controller, energy saving, stable starting, attached to the motor start protection device.
2. Lead Feeder paper system
1) The suction assist feeder paper, draught fan 7.5 kW, at different levels can be bent according to the board, air volume adjustment, ensure feeding smoothly.
2) Carry paper, fall paper adopt cylinder push, move quick and powerful.
3)Side panel for manual adjustment, front and back panel are manual adjustment (can options electrical adjustment).
4) Taiwan super resistance to lead feeding wheel, Perishable Wear Resistant.
5)Skip feeding paper device,(can choose according to need continuous or skip feeder paper).
6)Feeding counter, display production quantity.
3.Dust removal device
Paper brush dust removal device, can remove impurity on printing cardboard the surface, improve the quality of printing.
4. Feeder paper roller
1) Outer diameter: 140 mm, up roller.
2) 45# seamless steel tube, parcel wear-resisting rubber, and do dynamic balance correction.
3) Down roller, external diameter 140 mm, embossing and hard chromium plating, and do dynamic balance correction.
4) Feeder Paper roller gap dial manual adjustment, adjustment range 0-12mm.
5) The former feeder paper rubber roller (elastic rubber roller) for dynamic lift and fall, automatic voltage regulator, can reduce the strength fracture of the corrugated board
5. Computer device

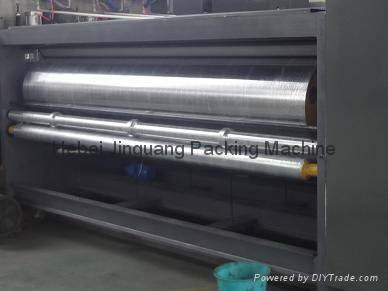

II. Printing department:
1.the outer diameter: 400mm
2.the steel tube surface grinding, hard chrome plating.
3.Do balance correction, steady operation.
4.Ratchet fixed volume edition axis.
5.Full Plate Hanging plate slot, suitable for 9 mm plate of the article.
6.Loading and unloading of the print plate , pedal switch of electric control forward and reversing.
7. The printing press roller: the outer diameter:156mm
8. Feeder paper up and down roller: up roller, the outer diameter of: 86mm, thick wall steel pipe, with four feeder paper roller. Down roller, the outer diameter: 156mm, thick wall steel pipe, surface grinding, hard chromium plating.
9.Steel anilox roller

III. Slotter part
1. The main body panels made of high quality cast iron, the large-scale machining center, precision work can finish it.
2. The main drive gear for helical gear, steel 45# steel, precision plating, grinding high frequency quenching.

3. The drive roller for high quality 45 # steel, after grinding, hard chrome plating, etc.

4. Electrical appliances: main parts for Schneider, Siemens and other imported components, to increase its stability, the main motor adopts the electromagnetic adjustable speed motor, high stability.

5. The tool is made in Qingdao, feng steel material is made of high quality, the forging, high frequency quenching process, precision machining, internal tooth type design (the teeth), the blade sharp and durable.
