Model: | Mini SC 1112 |
---|---|
Brand: | AVMATRIX |
Origin: | - |
Category: | Computers & AV Digital / AV Equipment / AV Peripheral |
Label: | SDI CONVERTER , HDMI CONVERTER , VIDEO CONVERTER |
Price: |
-
|
Min. Order: | 1 pc |
Last Online:16 Mar, 2017 |

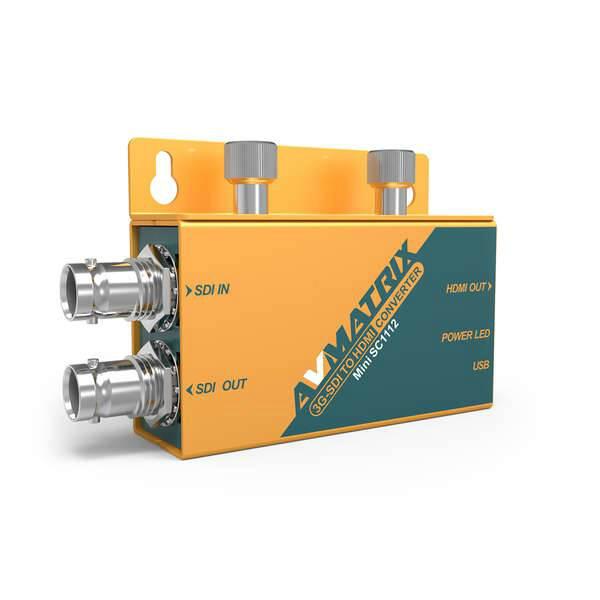

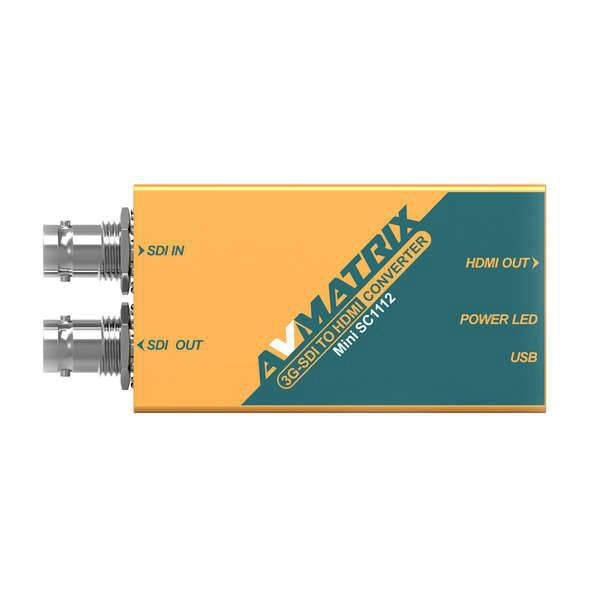

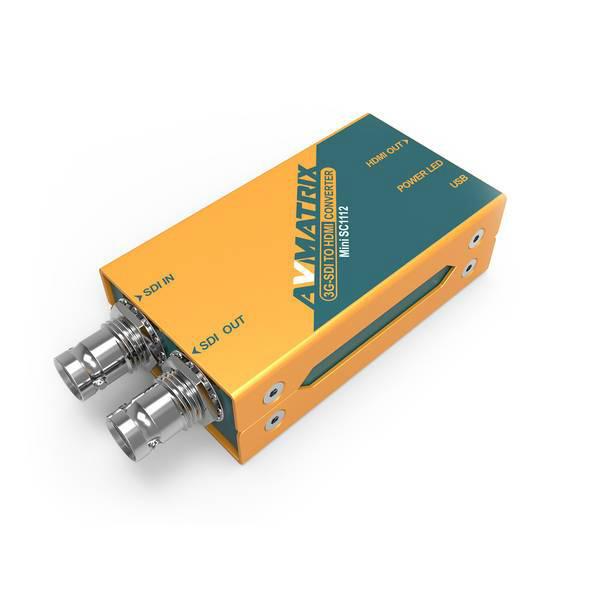

Mini SC1112
3G-SDI to HDMI Mini Converter
The Mini SC1112 is a Pocket-size broadcast Converter, it converts SDI input signal to HDMI signal and with SDI loop out. it is very convenient for users with the full size SDI and HDMI connectors.
Features
Born for Broadcast
Although it's a pocket-size converter, it is very convenient for users with the full size SDI and HDMI connectors; SD/HD/3G-SDI formats as well as level A and level B are also supported, up to 1080P 60Hz. Complying with EMC test, the steady and reliable performance makes it support 7×24h uninterrupted working without any lag or delay.
Powered Anywhere
Featured with universal USB power solution design, avmatrix mini converter can be powered by Micro USB connection; it can not only connect with DC power plug pack, but also get power from power bank, laptop or computer. The low power consumption is incredible, such as a 10,000mAh power bank can supply a more than 24-hour uninterrupted working time.
Pocket Size and Easy to Mount
Miniature design makes it portable for indoors and outdoors. It's possible to put into pocket and take to anywhere. With a convenient and detachable mounting bracket, it is also available in different application scenarios.
Tech Specs
INPUT
SDI Video Input
SD/HD/3G-SDI ×1
OUPUT
SDI Video Loop Output
SD/HD/3G-SDI ×1
HDMI Video Output
HDMI type A ×1
SDI FORMATS
SD Format Support
525i 59.94
625i 50
HD Format Support
720p 24/25/30/50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30
1080psf 23.98/24/25/29.97/30
1080p 50/59.94/60
SDI Video Rate
SD/HD/3G-SDI
SDI Compliance
SMPTE292M/SMPTE/259M/SMPTE 424M
SDI Color Space and Precision
YUV 4:2:2
SDI Auto Switching
Auto selects SD-SDI, HD-SDI and 3G-SDI on input
HDMI FORMATS
HDMI Format Support
480i 60
576i 50
720p 24/25/30/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/29.97/30
1080p 50/59.94/60
HDMI Color Space and Precision
YUV 4:2:2
POWER
Power
Micro USB
Power Consumption
1.5W
Voltage Range
3.3V~5V
SIZE(W×D×H)
74mm × 41mm × 23mm
ENVIRONMENT
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Relative Humidity
0%~90% non-condensing
WARRANTY
3 year limited warranty
Accessories
Mini SC1112×1, Bracket×1, Power Adapter×1, Micro USB cable×1
Payment Terms: | TT/LC |
---|---|
