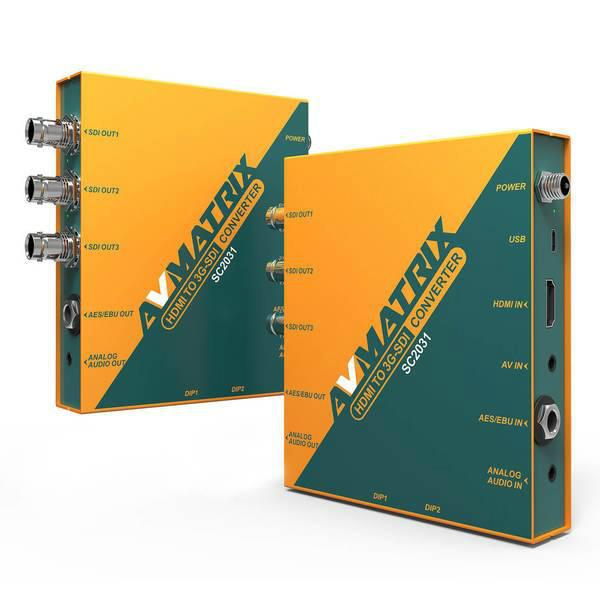

SC2031

HDMI/AV to 3G-SDI Scaling Converter

SC2031 is an exquisite and professional converter to convert HDMI or AV signals to triple SDI signals up to 1080P60Hz. The format of the output can realize pass through or up/down scaling and frame rate conversion. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC1120 is your ideal choice for broadcasting and AV post production applications.

• FEATURES
•
• TECH SPECS
•
• ACCESSORIES
•
• SEND INQUIRY

Features

• Input: HDMI×1, AV×1, AES/EBU×1,analog audio×1
• Output: 3G-SDI×3, AES/EBU×1, analog audio×1
• Up/down scaling and frame rate conversion
• AES/EBU or analog audio Embedding & De-embedding
• Input signal automatic detection and configuration
• LED indicators for power and signal lock
• Control easily via the DIP switches
• Remote control for PC via USB
• Threaded locking power connector

Up/down Scaling and Frame Rate Conversion

SC2031 features converting HDMI or AV signals to SDI signal. And the format of output can realize pass through or up/down scaling and frame rate conversion. It can support up to 1080p 60Hz.

Audio Embedding and De-embedding

It features embedding an external AES/EBU or analog audio or HDMI embedded audio to SDI output. Also it can de-embedding audio from SDI input signal to external AES/EBU and analog audio. There is no need for users to purchase custom cables when adopting standard 1/4" (6.3mm) TRS audio jack and 1/8" (3.5mm) audio jack.

Triple SDI Outputs

Transmitting and splitting the input signal to triple SDI outputs for three different connecting devices at the same time.
It supports a long distance and stable transmission without loss of signal quality.

Easy Control over DIP Switches

Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.

Tech Specs

Accessories

SC2031×1, Bracket×2, Power Adapter×1, Micro USB Cable×1
