| Model: | FD20T |
|---|---|
| Brand: | Maximal |
| Origin: | Made In China |
| Category: | Transportation / Logistics / Forklifts, Pallet Trucks |
| Label: | forklift truck , diesel forklift |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:17 May, 2017 |

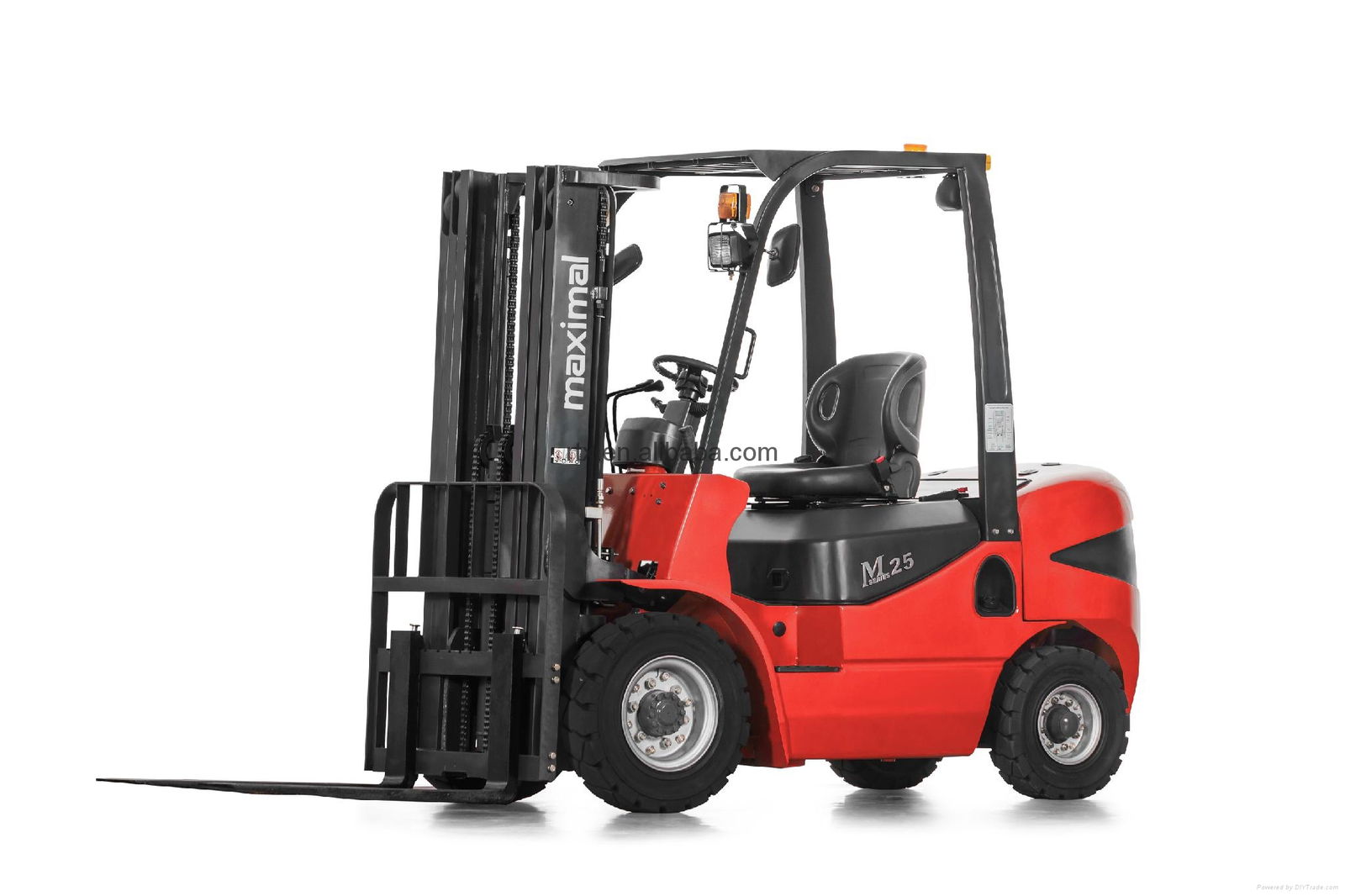

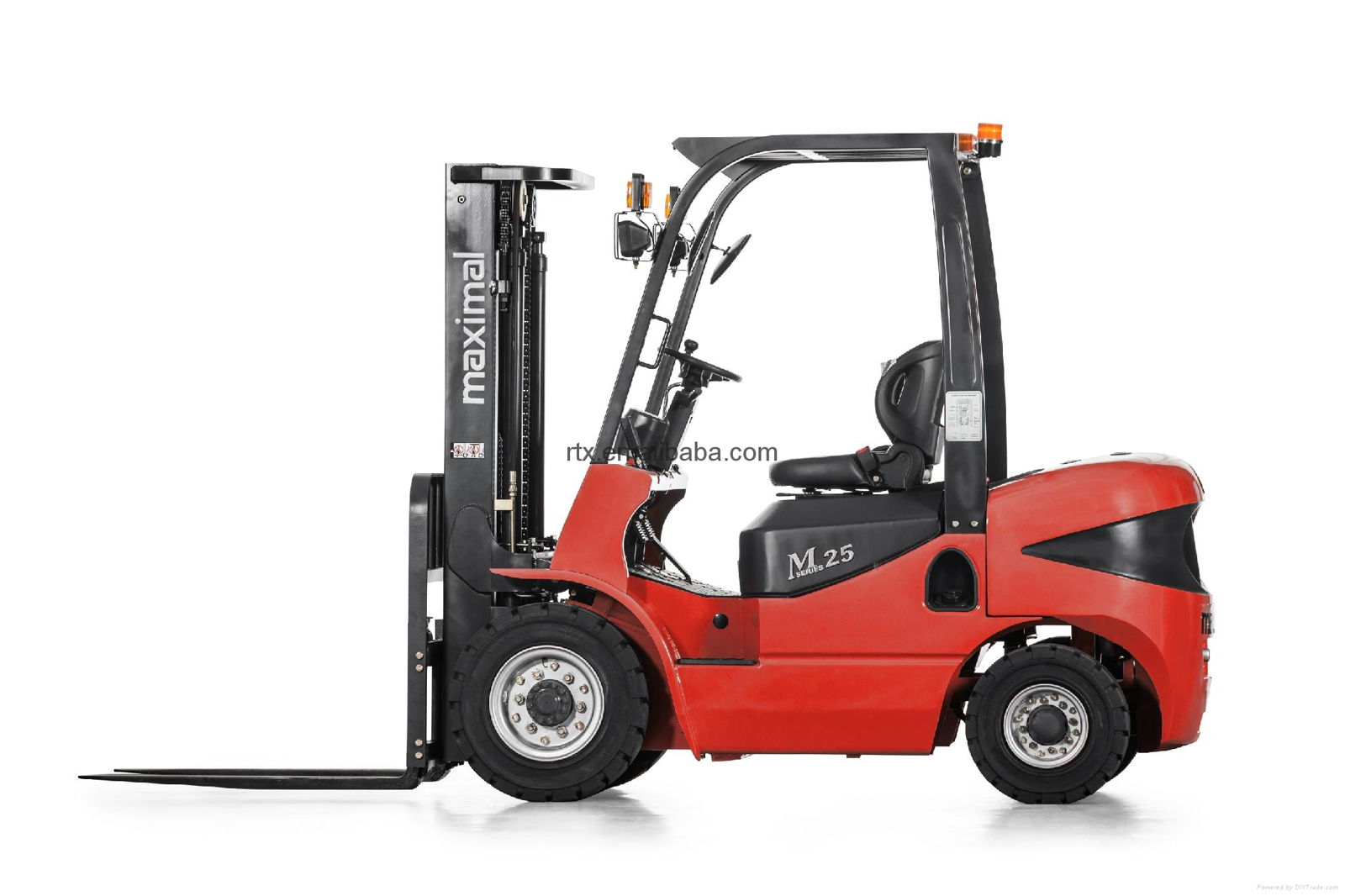

2.0 ton capacity diesel forklift truck
| General | 1 | Basic Model | FD20T-M2 | ||||
| 2 | Power type | Diesel | |||||
| 3 | Rated capacity | kg | 2000 | ||||
| 4 | Load centre | mm | 500 | ||||
| Characteristic&Dimension | 5 | Lift height | mm | 3000 | |||
| 6 | Free lift height | mm | 160 | ||||
| 7 | Fork size | LxWxT | mm | 1070x122x40 | |||
| 8 | Fork regulating range | Min./Max. | mm | 250/1040 | |||
| 9 | Mast tilt angle | F/R | Deg | 6°/12° | |||
| 10 | Front overhang | mm | 465 | ||||
| 11 | Rear overhang | mm | 492 | ||||
| 12 | Min.ground clearance(Bottom of mast) | mm | 125 | ||||
| 13 | Overall dimensions | Length to face of fork(without fork) | mm | 2510 | |||
| 14 | Overall width | mm | 1150 | ||||
| 15 | Mast lowered height | mm | 2010 | ||||
| 16 | Mastextended height(with backrest) | mm | 3990 | ||||
| 17 | Overhead guard height | mm | 2145 | ||||
| 18 | Turning radius(outside) | mm | 2180 | ||||
| 19 | Min.right angle aisle width(add load length and clearance) | mm | 1940 | ||||
| Performance | 20 | Speed | Travel(Unladen) | km/h | 19 | ||
| 21 | Lifting(Laden) | mm/s | 510 | ||||
| 22 | Lowering(Laden) | mm/s | 450 | ||||
| 23 | Max.Drawbar pull(Laden/unladen) | KN | 17/15 | ||||
| 24 | Max.Gradeability(Laden) | % | 20 | ||||
| Chassis | 25 | Tyre | Front | 7.00-12-12PR | |||
| 26 | Rear | 6.00-9-10PR | |||||
| 27 | Tread | Front | mm | 970 | |||
| 28 | Rear | mm | 980 | ||||
| 29 | Wheelbase | mm | 1600 | ||||
| 30 | Fuel tank capacity | L | 60 | ||||
| 31 | Self weight | kg | 3320 | ||||
| Weight | 32 | Weight Distribution | Laden | Front Axle | kg | 4650 | |
| 33 | Rear Axle | kg | 670 | ||||
| 34 | Unladen | Front Axle | kg | 1500 | |||
| 35 | Rear Axle | kg | 1820 | ||||
| Battery | 36 | Battery | Voltage/Capacity | V/Ah | 12/90 | ||
| Transmission | 37 | Transmission | Manufacture | China | |||
| 38 | Type | Powershift | |||||
| 39 | Stage | F/R | 1/1 | ||||
| 40 | Operating pressure(For attachments) | Mpa | 17.5 | ||||
