| Model: | FD18T |
|---|---|
| Brand: | Maximal /RUNTX |
| Origin: | Made In China |
| Category: | Transportation / Logistics / Forklifts, Pallet Trucks |
| Label: | 1.8 ton forklift , maximal forklift , forklift price |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:17 May, 2017 |

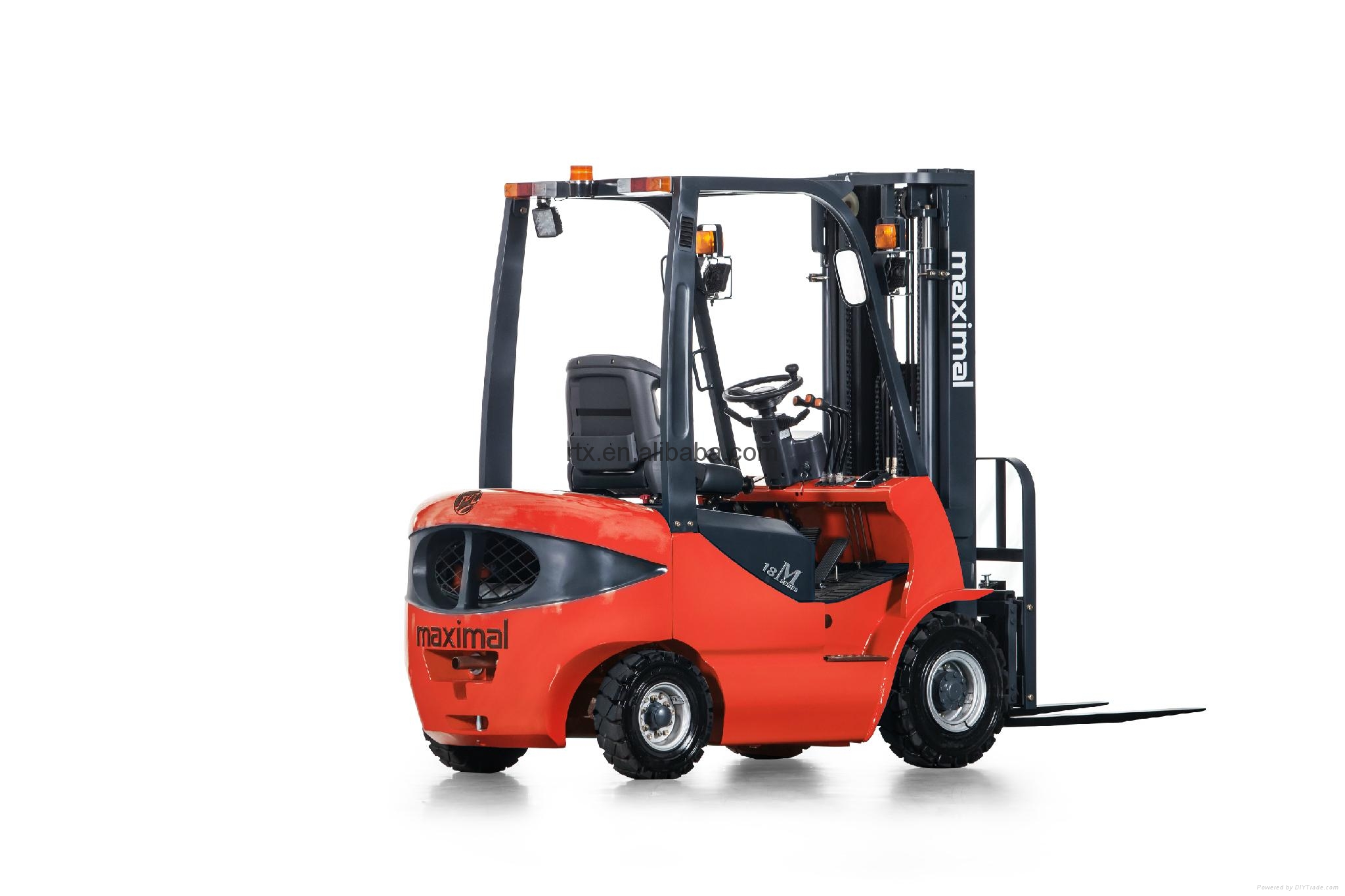

1.8 Tonne diesel forklift truck
| General | 1 | Basic Model | FD18T-M2 | ||||
| 2 | Power type | Diesel | |||||
| 3 | Rated capacity | kg | 1800 | ||||
| 4 | Load centre | mm | 500 | ||||
| Characteristic&Dimension | 5 | Lift height | mm | 3000 | |||
| 6 | Free lift height | mm | 135 | ||||
| 7 | Fork size | LxWxT | mm | 920x100x35 | |||
| 8 | Fork regulating range | Min./Max. | mm | 200/890 | |||
| 9 | Mast tilt angle | F/R | Deg | 6°/12° | |||
| 10 | Front overhang | mm | 400 | ||||
| 11 | Rear overhang | mm | 510 | ||||
| 12 | Min.ground clearance(Bottom of mast) | mm | 130 | ||||
| 13 | Overall dimensions | Length to face of fork(without fork) | mm | 2300 | |||
| 14 | Overall width | mm | 1070 | ||||
| 15 | Mast lowered height | mm | 2015 | ||||
| 16 | Mast extended height(with backrest) | mm | 3984 | ||||
| 17 | Overhead guard height | mm | 2110 | ||||
| 18 | Turning radius(outside) | mm | 2075 | ||||
| 19 | Min.right angle aisle width(add load length and clearance) | mm | 1857 | ||||
| Performance | 20 | Speed | Travel(Unladen) | km/h | 14.5 | ||
| 21 | Lifting(Laden) | mm/s | 460 | ||||
| 22 | Lowering(Laden) | mm/s | 450 | ||||
| 23 | Max.Drawbar pull(Laden/unladen) | KN | 18/16 | ||||
| 24 | Max.Gradeability(Laden) | % | 20 | ||||
| Chassis | 25 | Tyre | Front | 6.50-10-10PR | |||
| 26 | Rear | 5.00-8-8PR | |||||
| 27 | Tread | Front | mm | 890 | |||
| 28 | Rear | mm | 920 | ||||
| 29 | Wheelbase | mm | 1400 | ||||
| 30 | Fuel tank capacity | L | 50 | ||||
| 31 | Self weight | kg | 2800 | ||||
| Weight | 32 | Weight Distribution | Laden | Front Axle | kg | 3950 | |
| 33 | Rear Axle | kg | 650 | ||||
| 34 | Unladen | Front Axle | kg | 1260 | |||
| 35 | Rear Axle | kg | 1540 | ||||
| Battery | 36 | Battery | Voltage/Capacity | V/Ah | 12/90 | ||
| Transmission | 37 | Transmission | Manufacture | China | |||
| 38 | Type | Powershift | |||||
| 39 | Stage | F/R | 1/1 | ||||
| 40 | Operating pressure(For attachments) | Mpa | 14.5 | ||||
We also offer 1.5 tonne, 2.0 tonne, 2.5 tonne, 3.0 tonne and 3.5 tonne, small load capacity diesel forklift,
with lifting height 3000 mm to 6000 mm.
side shift, solid tire, fork position, four wheels on front are available.
Welcome to contact me.
Thank you.
