Model: | SM6-4050E |
---|---|
Brand: | LC |
Origin: | Made In China |
Category: | Industrial Supplies / Plate Making & Printing Machine |
Label: | Screen printer , silk printer , screen machine |
Price: |
US $1900
/ pc
|
Min. Order: | 1 pc |
Last Online:24 Dec, 2024 |

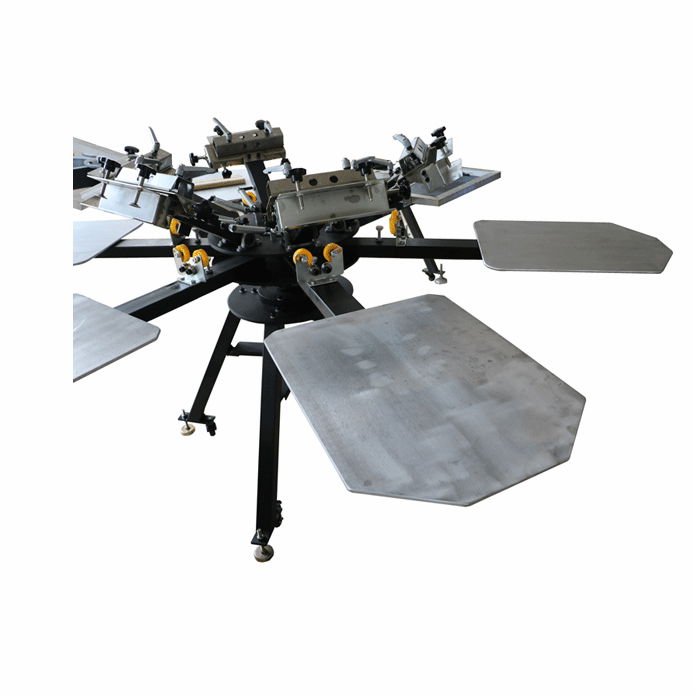

Manual economical printing machine
Generally, it is composed of multiple aluminum plate workbenches and corresponding screen structures around the central axis. Both the workbench and the screen can be rotated manually. When the clothes rotate to the bottom of the corresponding screen, the screen is pressed down and mechanically positioned, and printing can be carried out.
Structure
• Printing table: It is usually a special aluminum alloy high-temperature resistant printing table. The size can be customized according to customer requirements. It will not deform when overheated to ensure printing accuracy. It can also be equipped with a suction table to complete the production of transfer paper.
• Screen: Generally, nylon screen is stretched on a metal or wooden rectangular frame. The pattern on the screen is partially hollowed out to allow ink to pass through.
• Scraper: It is used to squeeze the ink so that the ink can be transferred to the substrate through the mesh. The material, hardness and angle of the scraper will affect the printing effect.
• Transmission device: Both the screen and the workbench can rotate around the central axis, without the need for electricity and air source, and there is no energy cost.
• Fine-tuning device: After the screen is fixed, the knob of the fine-tuning system can be used to make fine adjustments to the printing head in the front, back, left, right, up and down directions to achieve precise alignment and control of the screen tension.
• Bracket: The cheaper structure is welded with angle steel, and the more solid structure can be processed with seamless steel pipes.
SM6-4050E Manual 8-color Garment screen printing machine//Usage and characters |
|
Guide |
|
Application |
|
SM6-4050E Manual 8-color garment screen printing Machine //Parameters |
|
Technical parameters |
SM6-4050E 8-colour Manual rotating flat screen printing machine
|
