Features:
High strength
Good air permeability
High speed rotating without damage
Acid resistant
Stable structure
Smooth surface
low thermal shrinking
Application:
Polyester Mesh belt is widely used in paper making and drying,such as Pulp making,Sulplate pulp packing and cardboard pulp
sludge dewatering ,coal,salt and mine separation and sieving ,
foodstuff processing.
Fiberboard plants,
Process hides,shoe-making,clothing,ceramics ,Medicine,printing,drying industry as conveyor belt

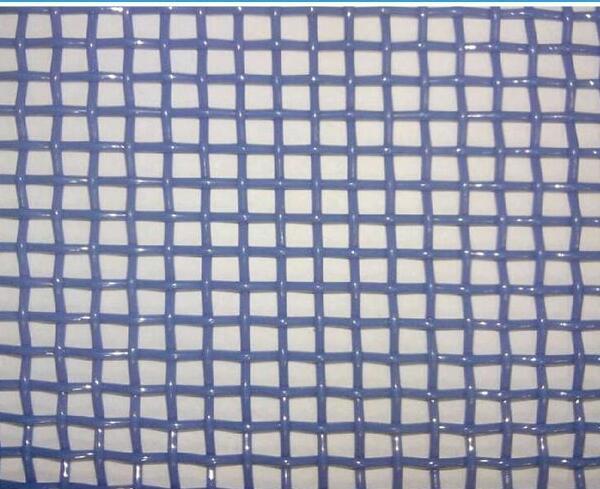

Polyester mesh belt have the following types:
Polyester Plain weave mesh belt
Polyester Spiral wire Mesh belt
Polyester Spiral wire Press-filter mesh belt
Polyester Sludge dewatering mesh belt
Polyester dryer mesh belt
Polyester Forming Mesh Belt:
Polyester Plain weave mesh belt is mainly used in paper making machines,such as paper pulps making,sulplate pulp packing ,caidboard pulp,fiberboard noodle papers plants.
Polyester Spiral wire mesh belt are used as the dryness part of paper machine , printing dyeing machine and horizontal delt machine
Polyester Spiral wire mesh belt is also used as conveyor belt in coal washing,food,medicine industry.
Polyester Spiral Wire Press-filter Fabrics is a kind of polyester spiral fabric which is filled wad into spiral fabrics to reduce the air permeability,so orifice change to compact,reduce matter running out from fabrics,transverse erect.
Polyester Spiral Press-filter Fabrics are also used as conveyor industry ,such as printing and dying,food,salt industry,pharmaceutical,environment protection,process hides,shoe-making,clothing,pottery and so on
Sludge Dewatering Fabrics are specially designed for wastewater treatment plants as sludge dewatering mesh belt.
Specifications:
.
| Type |
Warp |
Weft |
Warp |
Weft |
Weight |
Thickness |
Air Permeability (m3/m2h) |
| 22503 |
0.5 |
0.5 |
24 |
12 |
1.06 |
2.0 |
8000 |
| 24503 |
0.5 |
0.5 |
25 |
12 |
1.26 |
2.1 |
7000 |
| 22504 |
0.4 |
0.5 |
24 |
12 |
1.26 |
2.1 |
12000 |
| 24504 |
0.5 |
0.5 |
24.5 |
12 |
1.3 |
2.1 |
11000 |
| 4106-1 |
0.5 |
0.3 |
22.8 |
12.4 |
1.3 |
1.80 |
8000 |
| 4106-2 |
0.37/0.62 |
0.5 |
19.6 |
15.2 |
1.1 |
1.55 |
5000 |
| 16904 |
0.291/1.06 |
0.9/0.68 |
15.2 |
8.6 |
1.33 |
1.54 |
1920 |
| 18688 |
0.3/0.58 |
0.35/0.68 |
20 |
18.5 |
1.2 |
1.4 |
1600 |
| 90110 |
10 |
0.90 |
0.9 |
1.1 |
1.64 |
3.03 |
20000 |
| 6890A |
8 |
0.68 |
0.9 |
|
1.30 |
2.45 |
18000 |
| 6890B |
7 |
0.68 |
0.9 |
|
1.40 |
2.45 |
16000 |
| 5080 |
5.2 |
0.50 |
0.80 |
|
1.0 |
1.85 |
15000 |
