Product Descriptions:

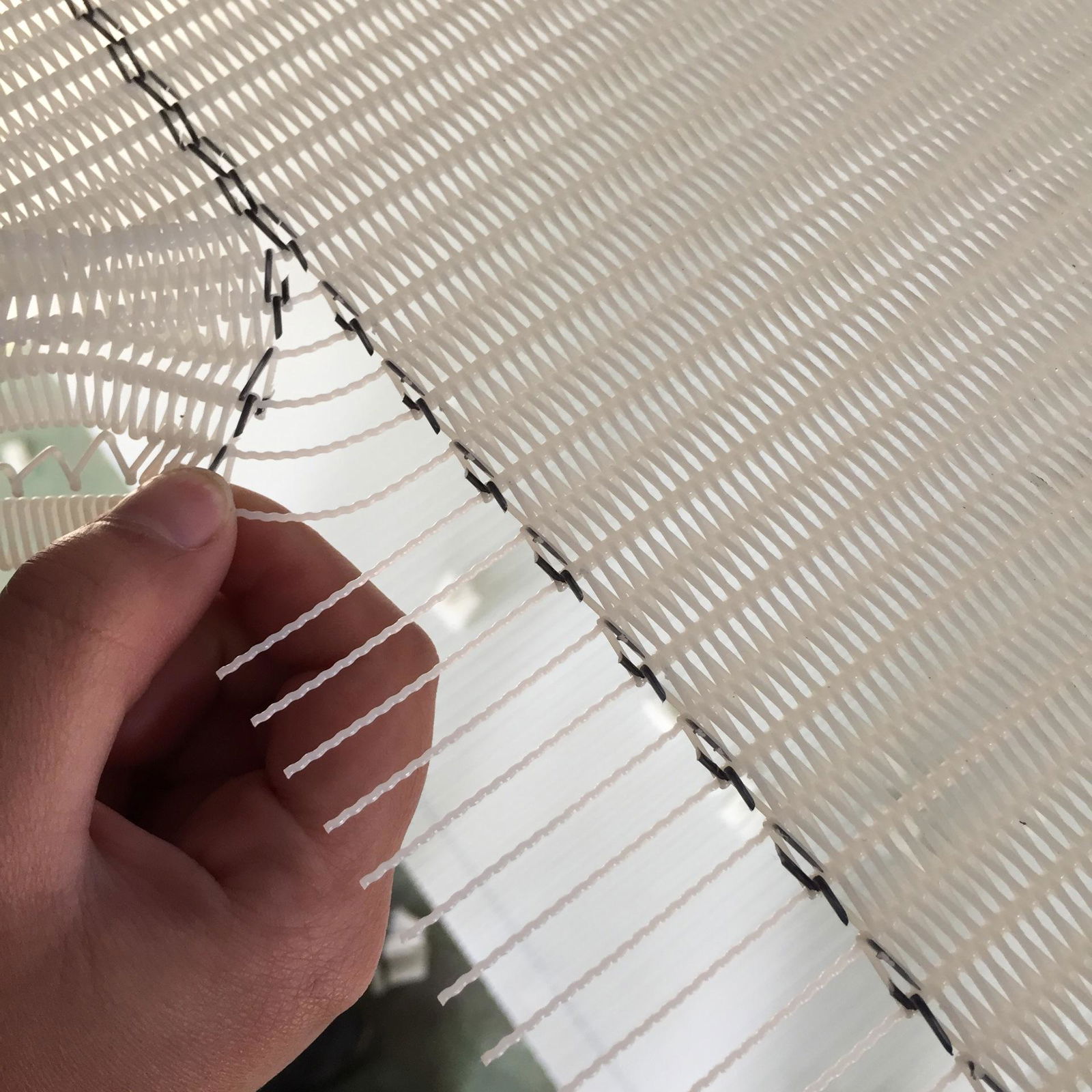

Spiral dryer fabrics are commonly used in the papermaking industry for transporting and drying the aqueous media there found. More broadly, spiral fabrics are used as filter media for wet, dry, hot and cold solutions and dispersions. Spiral dryer fabrics provide the best resistance to abrasion.
Spiral dryer fabrics are available in a broad air permeability range. Air permeability reductions can be achieved by inserting cross-directional yarns into the open area of the spiral. There is no weak link since spiral fabrics do not have traditional seams like woven fabrics. In addition, spiral constructions offer higher levels of wear and damage resistance and are very suitable for challenging positions. In the past, spiral designs were used extensively on brown paper applications. However, through processing and material improvements, spiral fabrics today have no applications.
Specifications:
Spiral dryer fabric
|
Type |
Width of loop(mm) |
Monofilament diameter(mm) |
Mesh weight(kg) |
Air permeability(m3/m2h) |
|
Supper large loop |
10 |
0.9 |
1.64 |
20000 |
|
Large loop |
8 |
0.68 |
1.31 |
18000 |
|
Medium loop |
7.15 |
0.68 |
1.40 |
16000 |
|
Small loop |
5.2 |
0.5 |
1.0 |
15000 |
Filter press spiral dryer fabric
|
Type |
Width of loop(mm) |
Filler wire(mm) |
Mesh weight (kg) |
Air permeability(m3/m2h) |
|
Large loop |
8 |
0.8*4 |
2.0 |
6080 |
|
Medium loop6890B1 |
7.15 |
0.9*4 |
1.9 |
5760 |
|
Medium loop6890B3 |
7.15 |
Flat wire2.1*0.8 |
1.8 |
9000 |
|
Small loop5080 |
5.2 |
0.6*3 |
1.5 |
4480 |
FAQ
Q1. Can I have a sample order for product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. Do you have any MOQ limit for product order?
A: Low MOQ, 30 square meters is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our s estions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on packing of product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity for defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
