| Model: | PZ2016/PZ3016 |
|---|---|
| Brand: | Auten |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | cnc plate drilling , cnc flange drilling , cnc drilling machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Last Online:08 Mar, 2022 |
Application Industry:

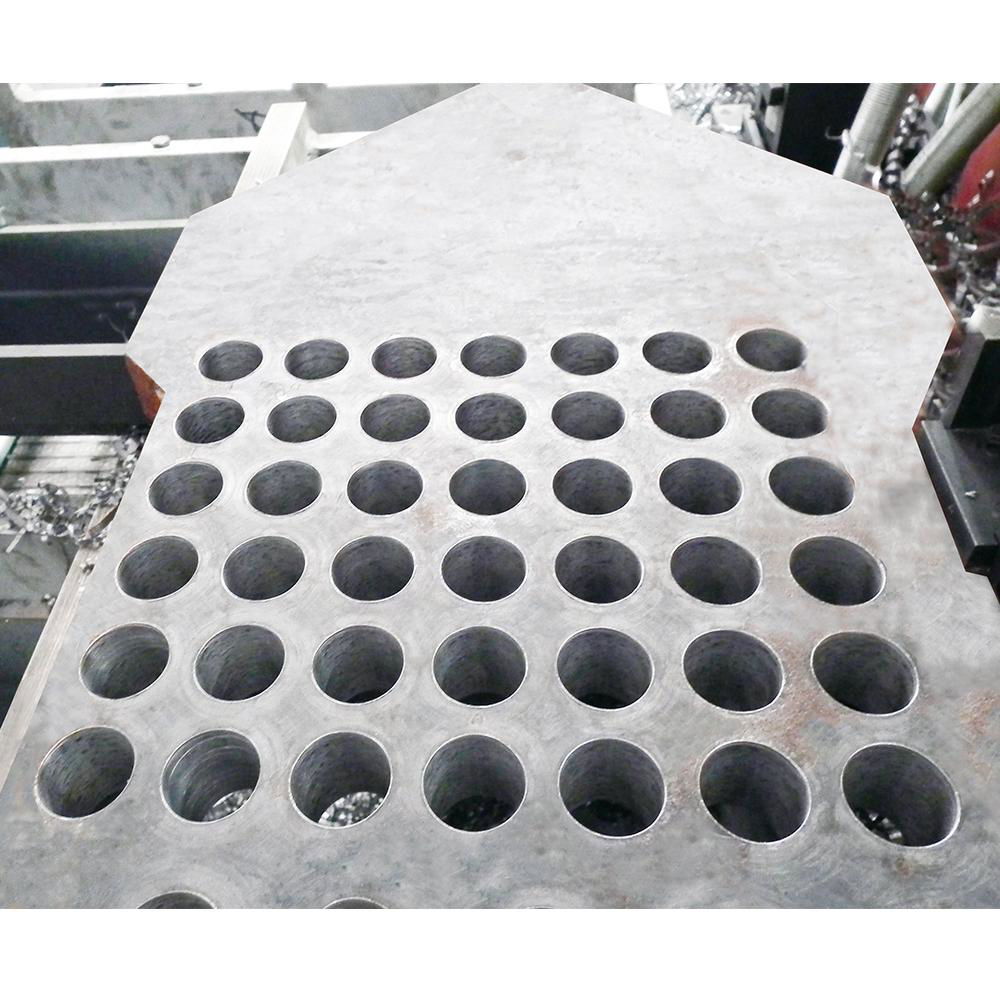

It is used for drilling metal plates and flanges of building, bridge, steel tower and steel structure industries.
Product feature:

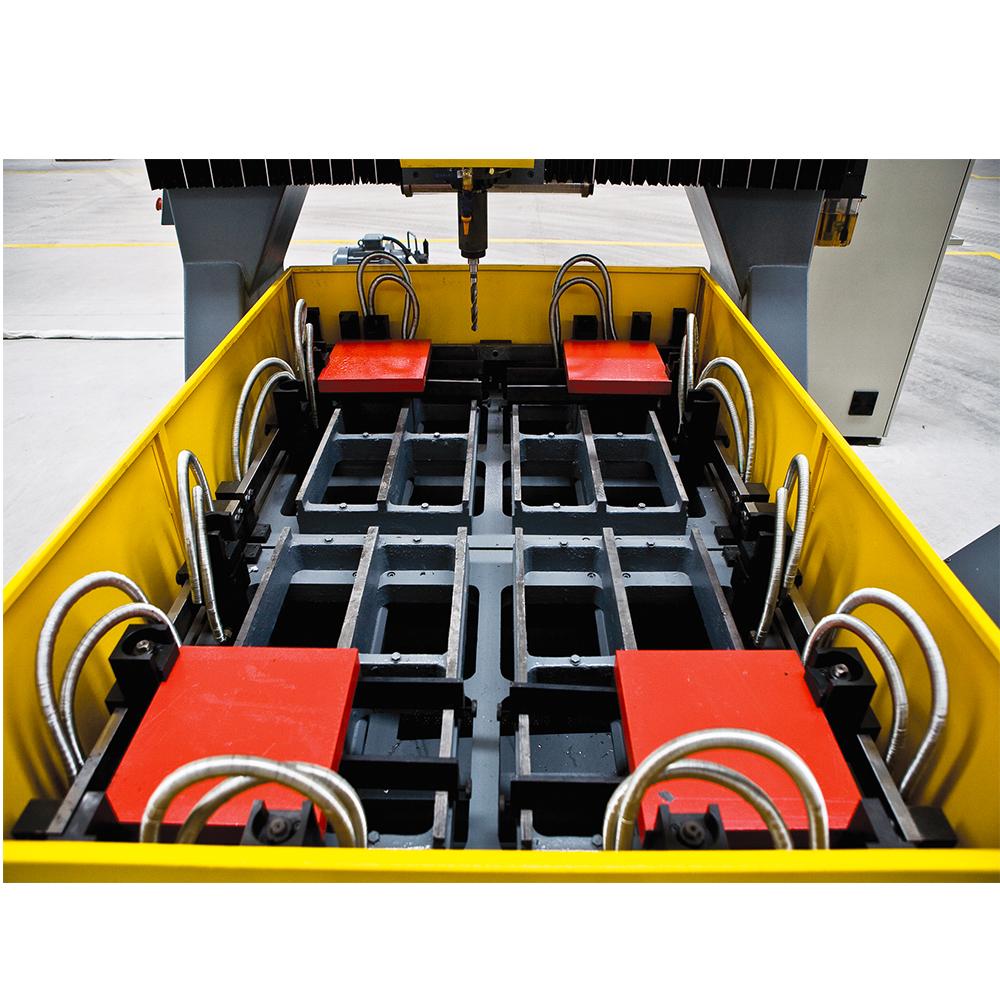

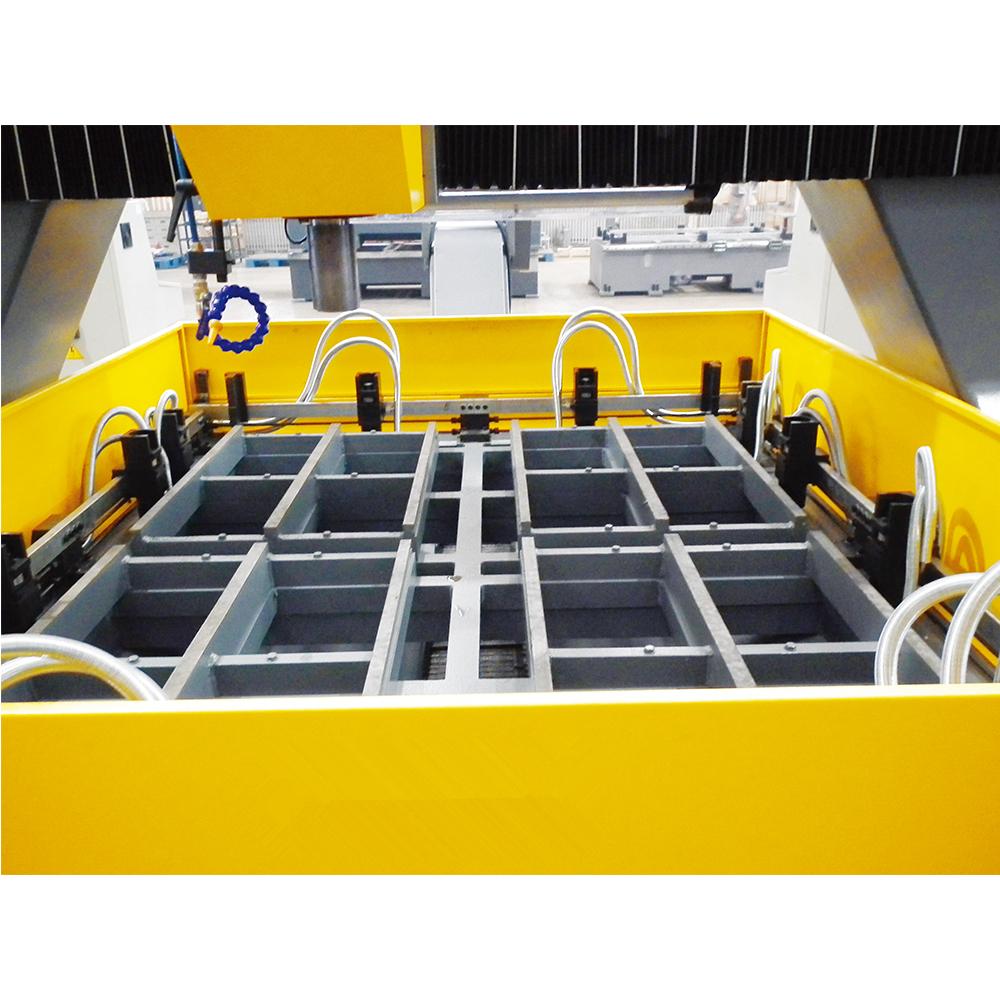

1. The machine can clamp 4 work-pieces at the same time.
2. Chip removal automatically, cooling liquid recycling used.
3. Drilling head has stroke self-controlled function, it can automatically convert from fast feeding to normal feeding without setting the thickness of work-piece and the length of the drilling head.
4. Electrical control adopts upper computer plus PLC control, direct conversion of CAD/CAM. It also can process NC file which generated by TEKLA.
Specifications：
|
Model |
PZ2012 |
PZ2016 |
PZ3016 |
||
|
Max size of work piece(mm) |
one piece |
2000×1000 |
2000×1600 |
3000×1600 |
|
|
two piece |
1000×1000 |
1600×1000 |
1600×1500 |
||
|
four piece |
1000×500 |
800×500 |
1500×800 |
||
|
Max. thickness of work piece |
100mm, can overlap processing for thinner plates |
||||
|
Morse taper |
#4 |
||||
|
Max. drilling diameter |
Φ50mm |
||||
|
Drilling spindle |
Rotating speed(rpm) |
120－560( Stepless speed adjustment) |
|||
|
Max. feed stroke(mm) |
350 |
||||
|
Motor power(kW) |
5.5 |
||||
|
No. of champs |
12 |
||||
|
Motor power(kW) |
Servo motors |
X axis |
1.3 |
||
|
Y axis |
1.3 |
||||
|
Z axis |
0.85 |
||||
|
Weight(t) |
About 5.3 |
About 6.3 |
About 7 |
||
|
Overall dimensions(L×W×H)(m) |
About 4.5x2.2x2.8 |
About 4.5x2.6x2.8 |
About 5.5x2.6x2.8 |
||
