1-5KG Automatic Weigh Filling Capping Line

Model:FM-ASW/5KG-2
Brand:High Accuracy Fi
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:automatic oil filler , filling line , weigh filling line
Price: US $31000 / SET
Min. Order:1 SET
Inquire Now

Member Information

Detail

Product Description

Automatic Weigh Filling + Lids Feeding +

Lids Screwing Production Line

FM-ASW/5KG-2+ FC-AVG+FC-A/1S

【APPLICATION

FM-ASW Series High Fi Weighing filling machine, the principle is that setting weight under control of PLC program of weighing load cell platform. It owns high accuracy & technology, it’s a new type machine integrating mechanism, electricity and instrument. It changed unmeasurable defect of traditional flow meter type filling accuracy for high viscosity liquid. It’s the ideal equipment that combine weighing and filling after civilized production and nationally stipulated elimination of level scales. Net filling each time. This weighing filling machine is suitable for various liquid with viscous、non-viscous、corrosive、non-corrosive、non-foaming liquid.

High Fi Automatic Weigh Filling Capping Production Line Working Process,

Manually put bottles on conveyor-Conveying automatically-Automatic weigh filling-Automatic lids vibrating feeding- Automatic lids screwing- Automatic aluminum foil sealing (optional)-Automatic Labeling (optional)-Automatic conveying (optional).



【FEATURE

 1. Control System: PLC / Electronic – Pneumatic

 2. Operational Panel: Intelligent Colorful LCD touch screen panel.

 3. Filling Accuracy: ±0.2

 4. Filling Model: filling from top (above liquid)

 5. Volume Adjustment: via automatic weighing sensor

 6. Pails Conveying: Painted steel structure, Stainless steel chain plate belt, with photoelectric

   sensors and industrial program controlled valve

7.      Automatic control system:against splattering, against dripping

8.      Full automatic control system:  no filling when no pail or lack pail

  1. Full automatic control system  computer control, electronic weighing sensing adjustment

10. Full automatic control system  position-searching, filling, conveying

  11. Full automatic control system  air-exhausting, capping

  12. Full automatic control system  alarming and safe guarding

  13. With painting carbon steel frame, with plexiglass of safe operation safety mask.

  14. Have function of filling weight digital display, can fill various filling weight setting

  15. With automatic tare function, filling with net weight

  16. With vacuum withdrawing & no dripping function

  17. Have manual & auto-adjustment in control system

  18. With fast & fine filling control function, avoid splashing

  19. Have emergency treatment to prevent misuse and power-off protection.

  20. Material direct contact part: SUS304

  21. Seal with silicone rubber (wear resistance, high temperature, acid, corrosion),

      fluorine rubber (wear resistance, strong acid, strong corrosive).

Provide suitable seals according to different temperature or

viscosity of different liquid material.





【TECHNICAL PARAMETER

Model

FM-ASW/5KG-2

+FC-AVG+

FC-A/1S

FM-ASW/5KG-4

+FC-AVG+

FC-A/1S

FM-ASW/5KG-6+

FC-AVG+

FC-A/1S

FM-ASW/5KG-8+

FC-AVG+

FC-A/1S

Filling Nozzle Qty.

2 Nozzles

6     4 Nozzles

6     6 Nozzles

6     8 Nozzles

Capping Head Qty.

1pc

4       2pcs

4      2pcs

4      3pcs

Weighing Range

                                       1-5KG

Filling Accuracy

                                      ±0.2

Liquid In-feed Port Pressure

0.3-0.5MPa

Air Supply Pressure

0.4-0.6MPa

Air Consumption

 0.3m³/min

Power Supply

                                  220V/380V, 50HZ

Filling Speed
(Barrel/hour)

 (Take water as testing liquid

300-450

600-900

900-1300

1200-1800

Whole line

   Dimension(L×W×H mm)

6000×1250×1950

8000×1250×1950

10000×1250×1950

12000×1250×1950

Approximate Weight

600KG+100KG

+300KG

 700KG+100KG

+350KG

850KG+100KG

+350KG

1000KG+100KG

+450KG

Above is standard data, different product working status/environment/material viscosity may effect above data.

● Auto lids vibrating & screwing equipment should be designed & produced according to High

  Fi company customer’s actual bottle & lids samples.

● Whole conveying line width scan be designed based on actual bottle sample size, conveyor length can be DIY designed according to High Fi company customer’s actual workshop requirement.


Payment Terms:50% downpayment in advance, and balance before delivery
Embed HTML Code:

Product Image

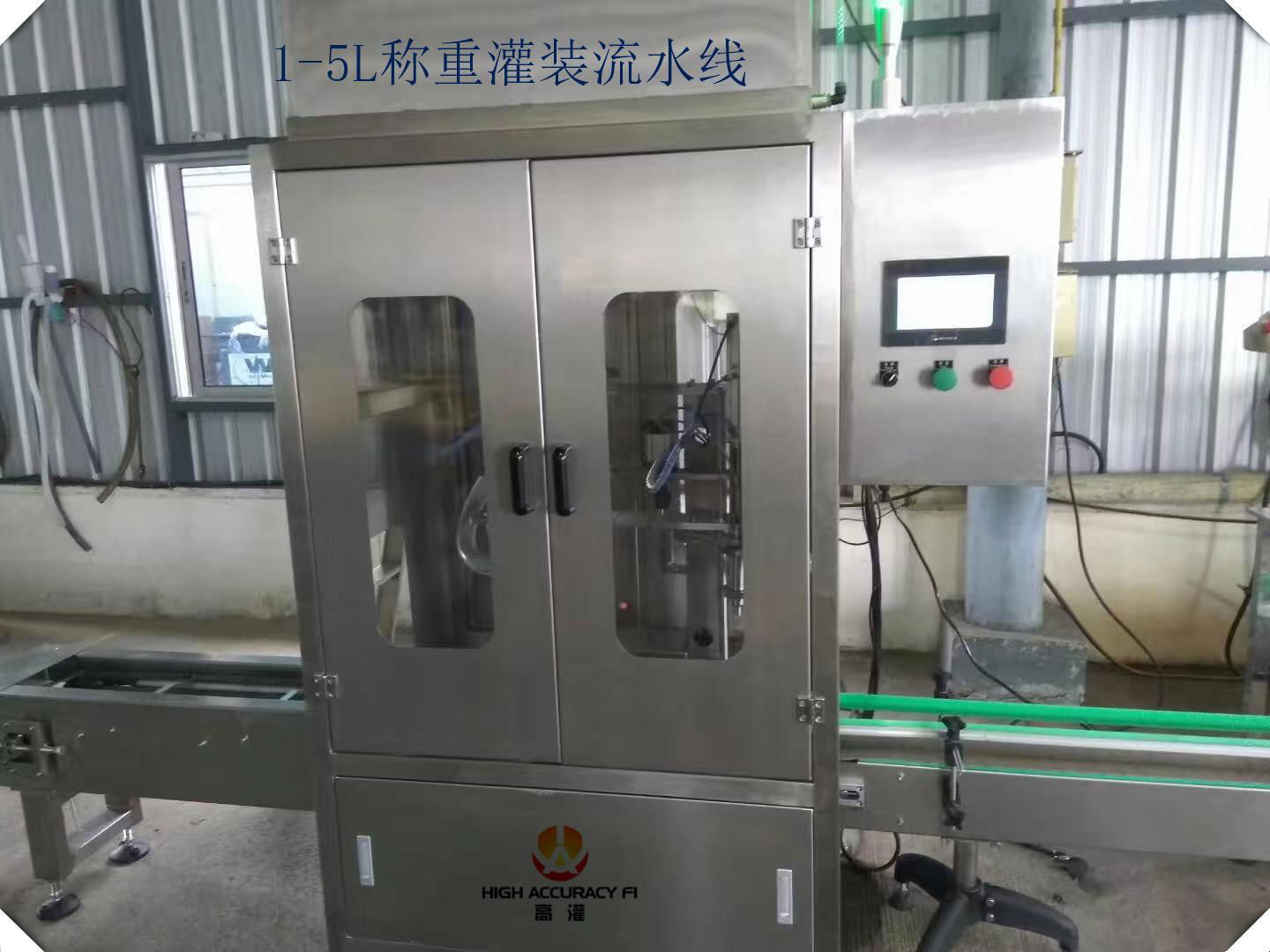

1-5KG Automatic Weigh Filling Capping Line 1
Img 1

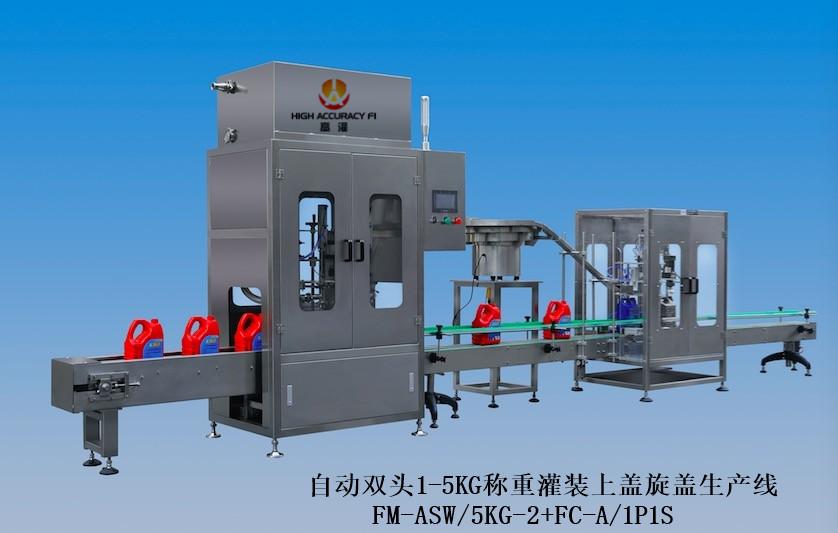

1-5KG Automatic Weigh Filling Capping Line 2
