Automatic Lids Climbing Feeder Linear Spindle Capping Machine

Model:FC-ASG FC-ACG
Brand:High Accuracy Fi
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:capping machine , lids feeding machine , lids spindle machine
Price: ¥17200 / SET
Min. Order:1 SET
Inquire Now

Member Information

Detail

Shanghai High Fi Intelligent Equipment Co.,Ltd.

Free MemberShang Hai - China
Last Online:04 Nov, 2019

View all products. (20)

Product Description

Automatic Lids Climbing Feeder + Linear Spindle Capping Machine

FC-ASG+FC-ACG

【APPLICATION】

It is flexible, durable and works with most containers and caps including flat caps, sport caps, metal lids and many others. It’s built on a heavy duty, tight welded, stainless steel frame with anodized aluminum plate construction to provide durability in almost any packaging environment. The modular design lets you start with just a cap tightener and easily add capabilities when you need them.

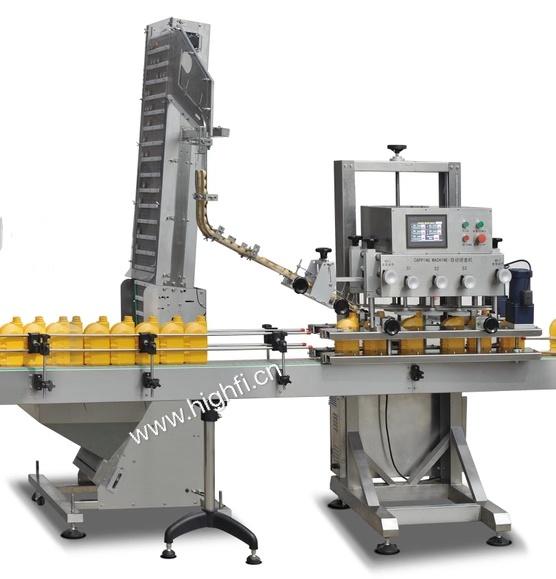

capping machine with cap sorting elevetor.png

【FEATURE】

  • Power height adjustment
  • Comprehensive universal cap chute and escapement
  • Hand-wheel operated
  • Gripper Belt height and width adjustment
  • Variable speed AC motors 4, 6 or 8
  • Spindle Wheels Spindle Wheel adjustment knobs, with lock nut hand wheel
  • No change parts required for a wide range of containers
  • Sanitary 304 stainless steel drive shafts and adjustment support shafts
  • Timing belt power transmission for Spindle Wheels
  • Bottom screw changeover on Spindle Wheels
  • 1/2” aluminum mounting plates and 1/2” hard coat anodized supports on Cap Feed Chute
  • Designed for easy integration with most conveyor configurations (sold separately )
  • Intrinsically Safe
  • Removable dual gripper belts
  • Trigger spray cap rails
  • Special electrical requirements

Touch Screen



  • 3 Couple of wheels for capping
  • Each Wheel is individually adjustable
  • The wheels can run in opposite direction to make cap fitting bottles well if necessary.



capper details.jpg

  • The two belt height is adjustable to fit different sizes of bottles.
  • The capping wheel is soft to prevent caps from damage
  • The capping wheel is horizontally adjustable for different sizes of caps
  • The capping wheel is vertically adjustable for bottles of different heights


9 Motors

6 motors for 6 capping wheels        2 motors for bottle clamping belt       1 motor for machine up and down





Meter Index for Mechanical Adjustment





Two Level Clamping Belts                                    Easy Adjustment between each level









5 Danfoss Frequency Converters            Schneider Relay















Cap Sorting Elevator

Cap Sorting Elevator is our most common and economical Sorting System capable handling a wide variety of flat caps up to 110mm. Correctly positioned caps are carried up the universal, cleat belt and blown down into the Capper chute for application. Our Elevator can also be upgraded to handle caps larger than 110mm

  • The angle of cap-falling area is adjustable for different sizes of caps
  • One machine suitable for various sizes of caps
  • Accuracy up to 99.9%
  • High speed, up 220pcs/min
  • Speed is adjustable
  • Auto-start & stop when caps are insufficient and full












【TECHNICAL SPECIFICATION】

Name/Model

Automatic Lids Climbing Feeder F-ASG+

 Automatic Lids Spindle Machine FC-ACG

Capacity

0-160

 bottles/min (based on bottle & lid size)

Lids Size

Φ15-70mm

Bottle Diameter

Φ35-140mm

Bottle Height

38-300mm

Air Supply

0.3-0.5Mpa

Power Supply

AC220V 50/60Hz

Power

1600W

Dimension

1080×896×1620mm(FC-ASG)

2000×600×1620mm(FC-ACG)

Weight

200KG, 400KG



Hyaline PC cover position adjustment(As picture 1 below)

The distance between the inner side of hyaline PC cover and the convey chain shall 2-6mm more than the height of the caps.



Picture 1 (Hyaline PC cover position adjustment)

2. Oblique bar adjustment(As picture 2 below)

The distance between the oblique bar and the elevate bar is 1-3mm. The ideal status is there is no rubs between the oblique bar and elevate bar while operation.

Picture 2 (Oblique bar adjustment)


Payment Terms:50% downpayment in advance, and balance before delivery

Product Image

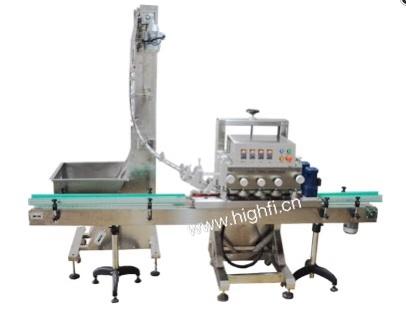

Automatic Lids Climbing Feeder Linear Spindle Capping Machine 1
Img 1

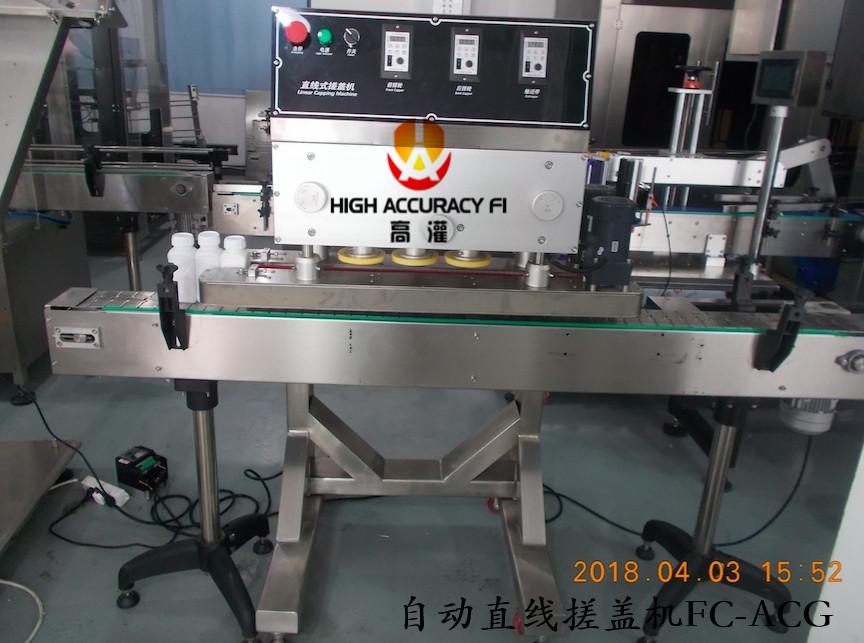

Automatic Lids Climbing Feeder Linear Spindle Capping Machine 2
Img 2

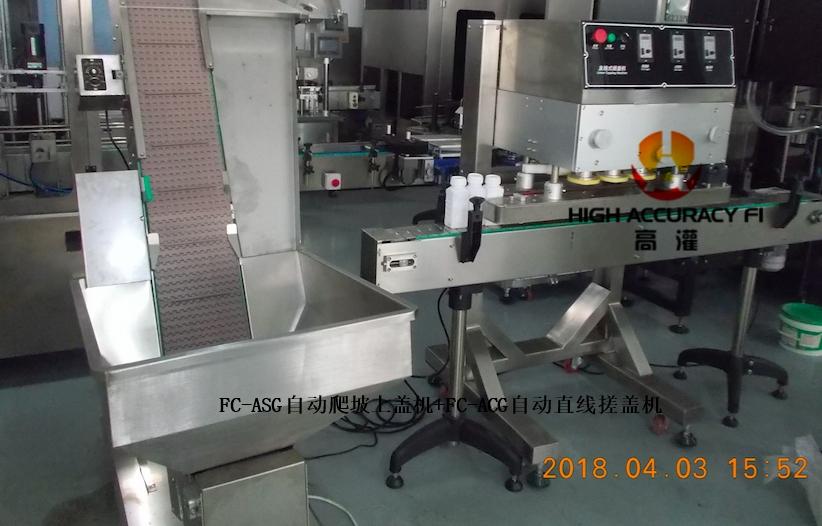

Automatic Lids Climbing Feeder Linear Spindle Capping Machine 3
