| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | cnc router , wood cnc router , 1325 cnc router |
| Price: |
US $30000
/ set
|
| Min. Order: | 1 set |
| Last Online:26 Nov, 2019 |
Product Description
Machine Application industry
-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing
video game cabinets and panels,computer table and Plate furniture auxiliary processing.
-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety
of materials advertising the production of decorative products.
-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,
plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Machine configuration and parameters
| Control system | RichAuto DSP A11 Control system |
| Spindle | China CC brand 4.5kw air cooling,ER32,speed 6000-18000rpm/min |
| Machine body and gantry | Heavy duty metal welding,Quenching and sandblasting,Twice painting |

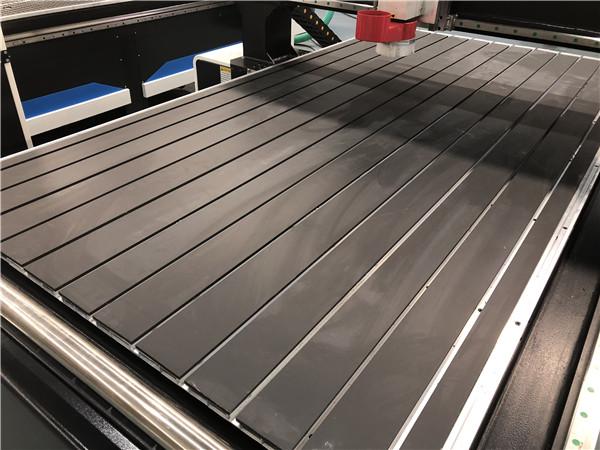

| Table | Aluminum alloy T Slot with PVC |
| Driving system | Stepped motor and Yako2811 driver |
| X, Y Axis structure | Wuxi Xinyue 1.25M helical rack and Japan SHIMPO Reducer |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Original Taiwan HIWIN brand 25 square rails |
| Inverter | Fuling Brand 5.5kw |
| Electric parts | France Schneider |
| Limited switch | Japan Omron |
| Machine cable | German Siemens OEM factory cable |
| Oil lubrication | Hand control with Aluminum oil pipe |
| Machine working size | X Axis-1300mm ,Y Axis-2500mm ,Z Axis-200mm |
| Machine Size | Length 3200mm ,Wide 2280mm ,High 1800mm |
| Machine Max.travel speed | 30m/min |
| Machine Max.working speed | 20m/min |
| Machine Voltage | 3PH ,380V ,50/60HZ |
| Machine weight | 1500kg |
