| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | 2030 4-axis cnc rout , cnc router , 4 axis cnc router |
| Price: |
US $30000
/ set
|
| Min. Order: | 1 set |
| Last Online:26 Nov, 2019 |
Product Description
Machine Application industry
-woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing
video game cabinets and panels,computer table and Plate furniture auxiliary processing.
-The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety
of materials advertising the production of decorative products.
-die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,
plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

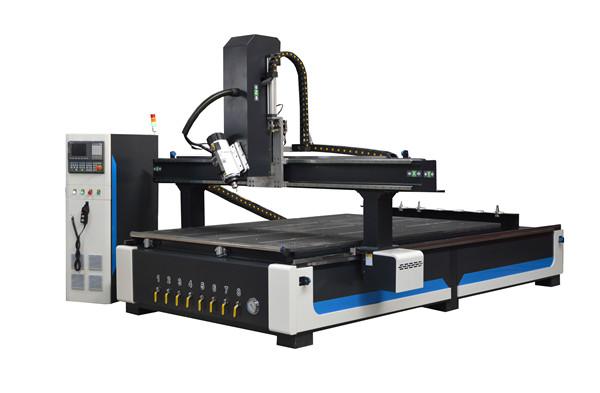

Machine configuration and parameters

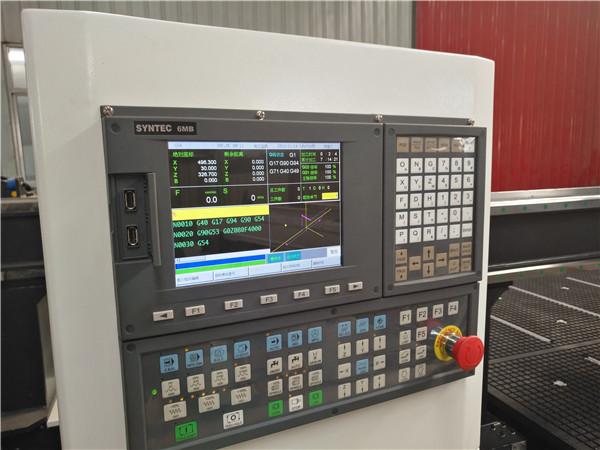

| Control system | Taiwan Syntec system with RTCP |

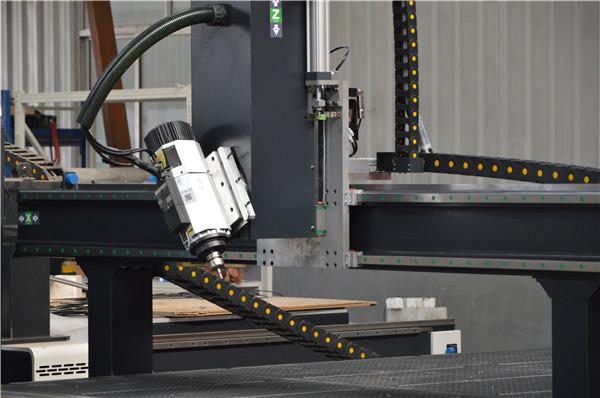

| Spindle | China CC brand 9KW Air cooling with 8 tools Linear ATC |
| Machine body and gantry | Heavy duty metal welding,Quenching and sandblasting,Twice painting |

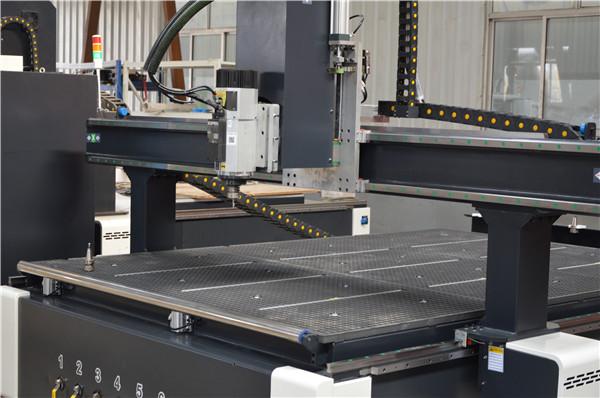

| Table | Vacuum & T Slot |
| Driving system | Taiwan Syntec 850W Servo |
| X, Y Axis structure | 2M helical rack and Japan SHIMPO Reducer |
| Z Axis Structure | Original Taiwan TBI ball screw |
| X Y Z Axis Square rails | Original Taiwan HIWIN brand 30 square rails |
| Inverter | Fuling Brand 11kw |
| Electric parts | France Schneider |
| Limited switch | Japan Omron |
| Machine cable | German Siemens OEM factory cable |
| Oil lubrication | Automatic control with Aluminum oil pipe |
| Machine working size | X Axis-2000mm ,Y Axis-3000mm ,Z Axis-450mm |
| Machine Size | Length 4300mm ,Wide 2280mm ,High 2500mm |
| Machine Max.travel speed | 50m/min |
| Machine Max.working speed | 20m/min |
| Machine Voltage | 3PH ,380V ,50/60HZ |
| Machine weight | 2200kg |
