Paint bucket Cylinder hot stamping machine

Model:H-TC300K
Brand:KC
Origin:Made In China
Category:Industrial Supplies / Packaging Related Machine
Label:hot stamper , hot stamping machine , hot foil stamping
Price: US $10500 / pic
Min. Order:1 pic
Inquire Now

Member Information

Detail

Dongguan KC Printing Machine Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

Product Description

Curved hot stamping machine for large-size plastic barrels:

Body structure

Shuttle workbench: used to place large-size plastic barrels to be hot stamped. The plastic barrels will keep rotating at a constant speed while moving in a shuttle manner.

Hot stamping system

• Hot stamping head: The hot stamping head is generally a flat structure with a heating tube inside. The hot stamping head can be raised and lowered under the drive of the cylinder. The hot stamping head will be installed with a hot stamping plate, and the plate will be engraved with patterns or texts that need to be hot stamped.

• Heating device: The heating tube inside the hot stamping head will generate heat when powered on, causing the hot stamping plate to heat up. The temperature setting is based on the nature of the substrate. The heating device has an automatic temperature control function. When the actual temperature is lower than the set temperature, the heating tube continues to heat up. When the actual temperature is equal to or greater than the set temperature, the heating tube automatically shuts down. The heating device must ensure a relatively stable temperature.

• Pressure system: generally composed of cylinders, hydraulic cylinders or mechanical levers, etc., to provide uniform and appropriate pressure between the hot stamping plate and the plastic barrel, ensure that the electrochemical aluminum foil fits tightly with the surface of the plastic barrel, and transfer the hot stamping pattern to the plastic barrel completely and firmly. The pressure can be adjusted according to the material, shape and hot stamping pattern requirements of the plastic barrel.

Transmission system

• Motor: as a power source, it provides power for the operation of the fixture.

• Drive belt or drive chain: connect the motor and other components, and transmit the power of the motor to the workbench, which can drive the plastic barrel to move and rotate.

• Rotating device: for the hot stamping of curved surfaces of large-sized plastic barrels, the machine is usually equipped with a rotating device, which can make the plastic barrel rotate around its own axis during the hot stamping process, and cooperate with the movement of the hot stamping plate to ensure that all parts of the curved surface of the plastic barrel can be evenly hot stamped, so as to obtain a complete and continuous hot stamping pattern.

Control system

• Temperature control: accurately control the temperature of the heating device to ensure the stability and accuracy of the temperature during the hot stamping process to obtain the ideal hot stamping effect.

• Pressure control: According to different hot stamping requirements, the pressure of the pressure system is accurately adjusted to ensure that the pressure between the hot stamping plate and the plastic barrel is uniform and moderate.

• Motion control: Control the movement speed, direction and stroke of the transmission system to coordinate the movement of the hot stamping plate and the plastic barrel to achieve efficient and accurate hot stamping operations. In addition, the control system may also have automatic control functions, such as automatic feeding, automatic receiving, automatic counting, etc., to improve production efficiency and processing accuracy.

H-TC300K Pneumatic Flat-cylinder hot stamping Machine//Structure

Working table

Shuttle working table, Max stamping diameter: 300mm

Stamping Head drive

Pneumatic drive

Foil collecting method

Motor-drive , Collecting time adjustable

Press adjustment

Up-down of Stamping head

Temperature control

Heating tube heat up,Automatically temperature controlling, temperature free setting

Foil collecting

Motor drive, Automatically collecting

Stamping plate size

150*300mm.

H-TC300K Pneumatic cylinder hot stamping machine //Usage and characters

Guide

  • Stamping circular diameter of 100mm, widely used in cosmetic packaging, stationery, manufacturing, process gifts,
  • Gilding - paper, leather, wood, plastic,
  • Flat-object stamping machine , Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Electron products;
  • Automatic feed foil, automatic temperature controlling ensures stamping quality.
  • Pneumatic drive,;
  • Suitable for bottle, cosmetic case cap.

Application fields

  • Paper Gilding, Leather Impression,
  • Plastics Bronzing
  • Leather bronzing and Molding;
  • Small diameter cylinder

H-TC300K Pneumatic cylinder hot stamping Machine //Parameter

Technical parameters

  • Size of stamping plate: 150×300 mm;
  • Heater Wattage: 2000W;
  • Stamping height adjustable range =500 mm;
  • Max. stamping diameter: For whole circle: 100mm For partial circle: 300mm;
  • Stamping temperature adjustable range: 0 -300oC;
  • Stamping foil pulling length: =300 mm;
  • Stroke of stamping plate: 300 mm;
  • Max. stamping pressure: 3500 kgf (7bar);
  • Max. stamping speed: 300 pcs/h;
  • Power: 110/220V, 60/50Hz;
  • Air consumption: 186 litre/min.

Works supply

  • 110V-220VPower supply;
  • 5-7Bar compress air

Package list

  • Package size: 1.70*1.00*1.750m;
  • Gross weight: 565kg;
  • CBM:2.975

H.S.Code

8443198000

Certificate

CE

H-TC300K Pneumatic cylinder hot stamping machine //Advantage

Function

  • Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
  • Relays for process control, stable operation, easy maintenance;
  • The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
  • leveraged cylinder pressure, the pressure is uniform and strong;
  • The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
  • Motor to control the delivery of the gold foil , resin length can be flexibly adjusted according to the size of the stamping area;
  • Using high strength steel, gilt plate and table, has a very high flatness;
  • Heating tube for heating, heat supply is stable, easy to replace;
  • Safe protection device installed;
  • The stamping head height adjustable;
  • Shuttle stable shift ensure stamping cylindrical workpiece;
  • Stamping flat workpiece while uninstall the shuttle;
  • With oil - gas shift cylinder, ensuring a more stable pressure bronzing.

Product Image

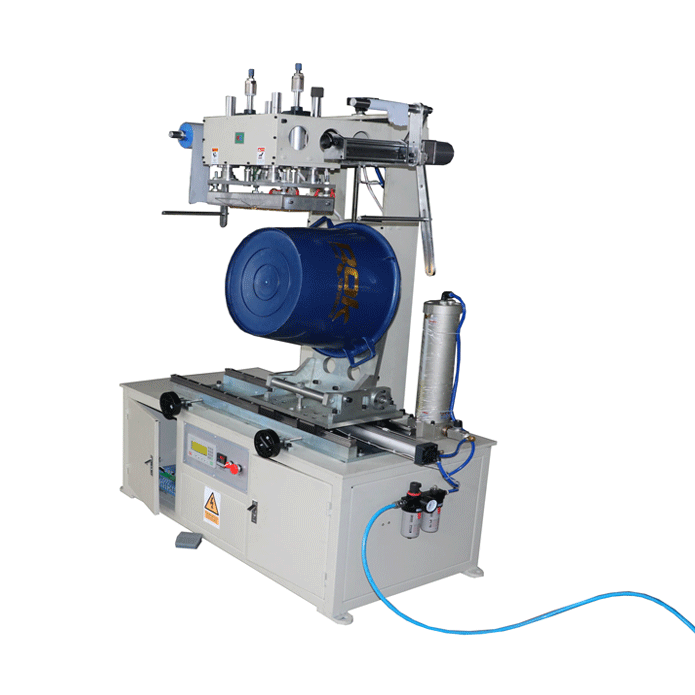

 Paint bucket Cylinder hot stamping machine 1
Img 1

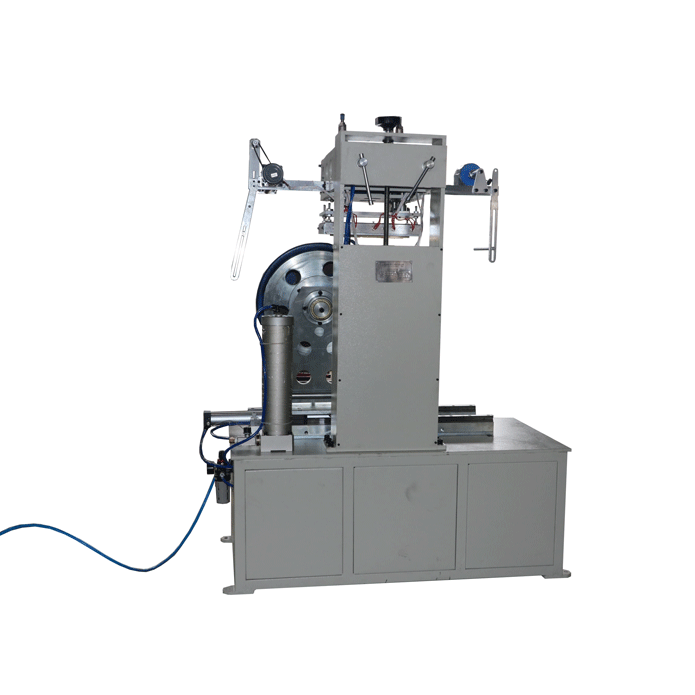

 Paint bucket Cylinder hot stamping machine 2
