Safety Flame treatment machine

Model:F2B
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Flame machine , PP treatment machine , Bottle treater
Price: US $2535 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

Product Description

Working Principle

• Flame treatment part: The flame treatment machine generates high-temperature flames through a double flame gun. When the flame contacts the surface of bottles and cups made of PP (polypropylene) and PE (polyethylene) materials, the molecular structure of the material surface will change. The surface of these materials is usually low in surface energy and non-polar. Flame treatment can introduce polar groups such as hydroxyl and carboxyl groups on the surface, thereby increasing the surface energy of the material and improving the surface wettability and adhesion.

• Conveyor belt part: The stainless steel conveyor belt is driven by a motor to transport plastic products such as bottles and cups to the position where the flame gun is treated. It can stably transport items and ensure the continuity of the flame treatment process.

• Rotating fixture part: The rotating fixture can fix the bottle or cup and rotate it during the flame treatment process. This ensures that the entire surface of the bottle or cup can be evenly flame treated to avoid the situation where the part is not treated or overtreated.

• Key panel operation: The flame size of the flame gun, the speed of the conveyor belt, the rotation speed of the rotating fixture and other parameters are controlled through the key panel. Operators can flexibly adjust these parameters according to the requirements of different PP and PE material products, such as the size, shape, and degree of treatment of bottles and cups.

• Safety shield: It is mainly to prevent operators from being exposed to flames or being burned by high temperatures, and also to avoid splashes that may be generated during flame treatment from causing damage to the surrounding environment and personnel.

Application scenarios

• Packaging industry: During the production process of plastic bottles and plastic cups, their surfaces are flame treated for subsequent printing, labeling and other processes. For example, after flame treatment of beverage bottles, cosmetic bottles, disposable plastic cups and other products, labels or printed patterns can be better attached to the surface, improving the appearance quality of the product.

• Plastic product processing: For some PP and PE plastic products that need to be coated or bonded to other materials, flame treatment is an effective pretreatment method that can enhance the bonding between different materials.

Advantages

• Uniform treatment effect: Due to the cooperation of the rotating fixture and the conveyor belt, the surface of products such as bottles and cups can be evenly flame treated, ensuring the consistency of treatment quality.

• Easy to operate: Through the key panel operation, various parameters can be adjusted simply and quickly to meet different production requirements.

• High safety: The safety shield effectively ensures the safety of operators and the surrounding environment, reducing the possibility of accidents.

 Cylinder Flame treatment Machine//Usage and characters

Guide

  • Mainly used for pre-treatment of polyethylene and polypropylene plastic products;
  • The better ink adhesion is available after the pre-treatment;
  • Cylinder bottles made by PP PE fit.;
  • The normal use of the flame treatment Machine in addition to prepare compressed air, but also to prepare a combustible gas, the machine itself an excuse to set the compressed air and combustible gas.

Application fields

  • Electron, Hardware, Auto, Toys, Gifts, Plastics parts,
  • Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .

LC-F2 Cylinder flame treatment Machine//Parameter

Technical parameters

  • Flame width:250mm;
  • Burning Gas:LPG gas;
  • Conveyor speed:0~10m/min;
  • Outline dimension:2000X450X850mm;
  • Conveyor size:2000X340mm;
  • Combustion gas:Compressed air 8kg/cm2 ;
  • Bottle mouth diameter: 25mm;
  • Distance between Support seat: 100mm;
  • Max Bottle diameter: 100mm.

Works supply

  • Power: 1 phase 220V;
  • 5-7bar compress air;
  • Combustible gas

Package list

  • Dimension: 2.330×0.650×1.100m;
  • Gross weight; 190KG;
  • 1.60CBM.

H.S.Code

8443198000

Certificate

CE

 Cylinder Flame treatment Machine//Advantage

Function

  • Mainly used for the surface pretreatment of PE and PP plastic products;
  • Micro motor imported from Japan, stepless speed timing mode is adequate for different workpiece requirement;
  • The machine is two sides equipped with baffle-boards to improve the heat efficiency;
  • Advanced gushing nozzle is design generates a good combustion result, it is a product that saves energy;
  • According to the size of your product that is to be printed, replace the taper support to meet the different requirement of workpiece

Main configuration

  • Main Motor:zhejiang Motor/reducer;
  • Feeding Motor: Zhejiang Motor-31K15RGN-C/15W;
  • Contactor:Shanghai;
  • Relay : Shanghai;
  • Transport speeder :STS/AUS22-15W;
  • Cooling fan: SUNON/DP200A.

Accessories included

  • Operation instruction in English;

Cylinder flame treatment Machine//Technical support

Printing elements

To achieve the Machine capabilities, Please notice

  • Please test with pp bottles before normal production;
  • Please test PP PE bottles with Blue flame;
  • Please ask Master professional electrician to maintain and repair Flame treatment Machine;
  • Please record the transport speed, flame width, flame angle to get best treat parameter.

Summary: Polyolefin material has excellent chemical resistance and good processing properties, which is why it is used as the main container manufacturing material. However, polyolefin materials are non-polar molecules with low surface tension and poor affinity for ink, so the printability is not good, and the ink is easy to fall off. For this reason, polarizing the surface of the polyolefin material becomes a pre-press treatment An important step, there are many methods for polarizing treatment at present: flame treatment, high frequency treatment, plasma treatment, and chemical oxidation treatment. Flame treatment is the most effective and simplest method for polarizing container polyolefin materials. When you buy a semi-automatic screen printing machine and find that the ink adhesion is not good, you may wish to consider the flame treatment procedure. Nowadays, many users buy fully automatic screen printing machines, which basically regard flame treatment as standard configuration, so you don't need to worry too much.
Embed HTML Code:

Product Image

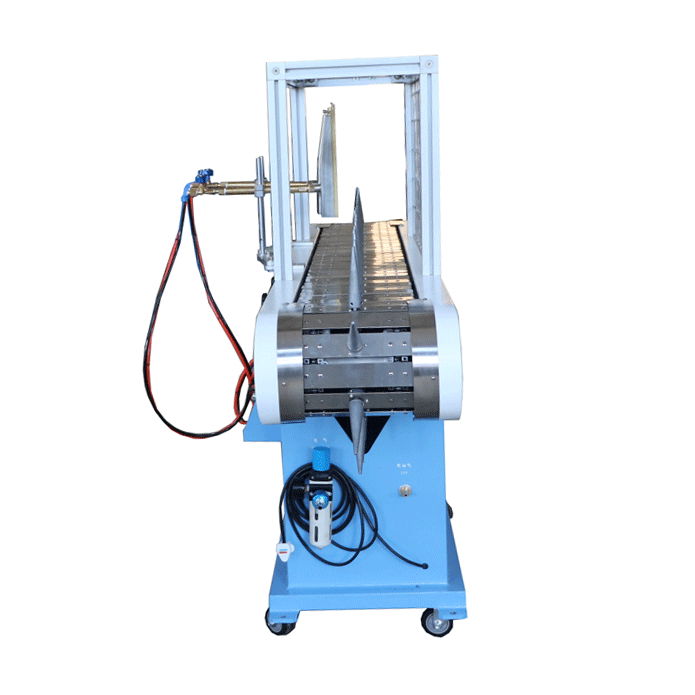

Safety Flame treatment machine 1
Img 1

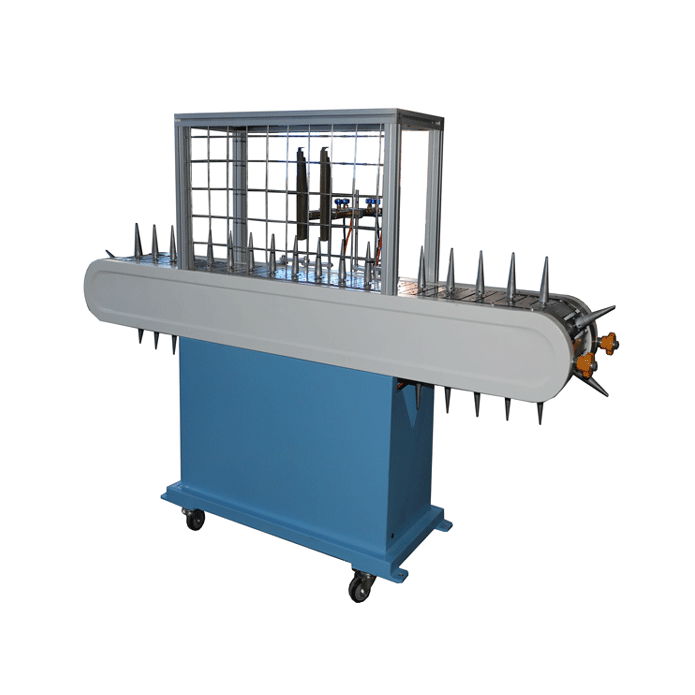

Safety Flame treatment machine 2
Img 2

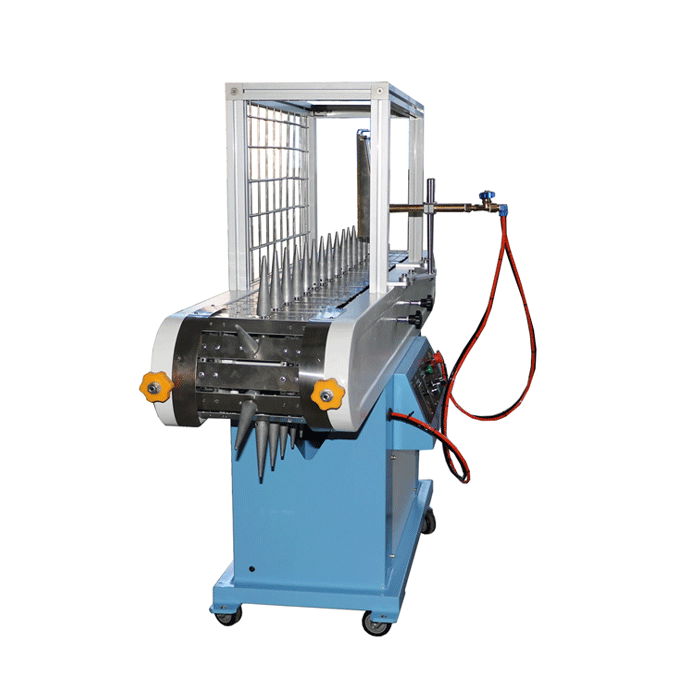

Safety Flame treatment machine 3
Img 3

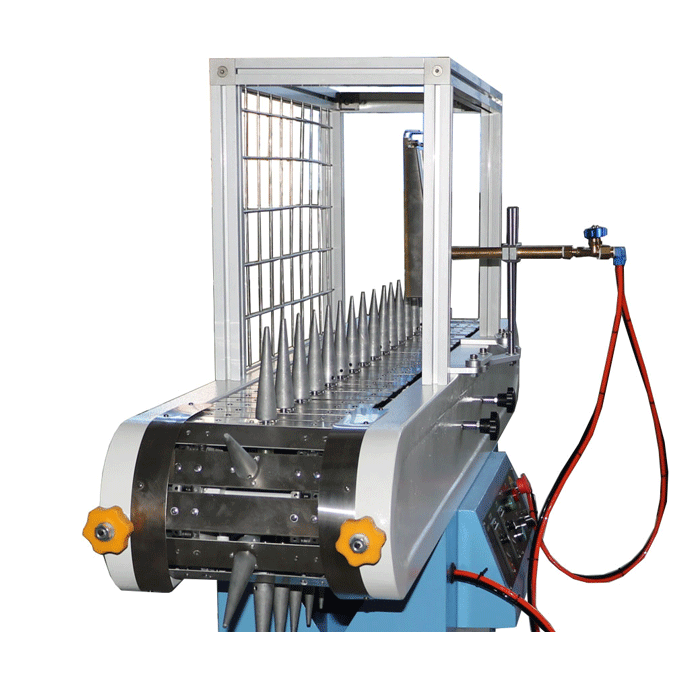

Safety Flame treatment machine 4
Img 4

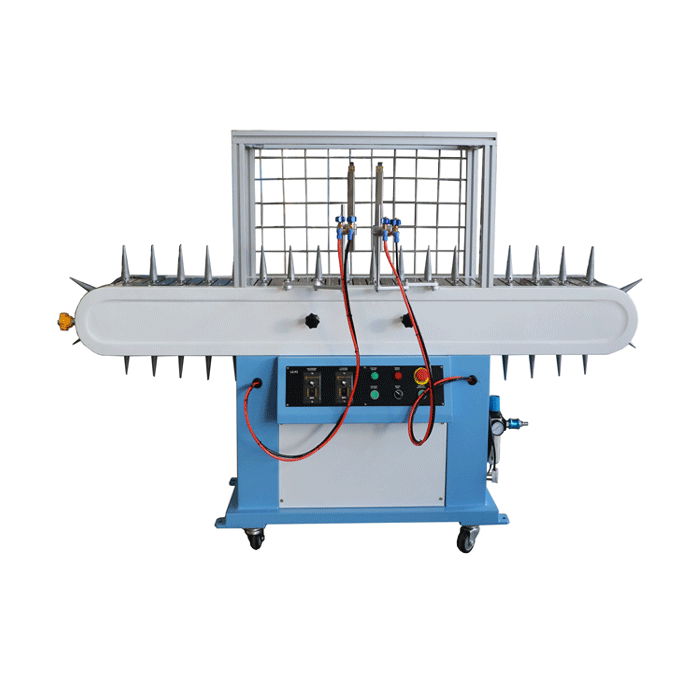

Safety Flame treatment machine 5
