Shuttle pad printer( SPM4-200L/2P)

Model:	SPM4-200L/2P
Brand:	LC
Origin:	Made In China
Category:	Industrial Supplies / Plate Making & Printing Machine
Label:	Pad printer , pad press , pad printing machine
Price:	US $5970 / pc
Min. Order:	1 pc

Inquire Now

Member Information

LC industrial company Limited

Biz MemberGuang Dong - China

Last Online:24 Dec, 2024

Product Description

This four-color shuttle pad printing machine is equipped with a steel plate with a width of 150mm, and the printing size has been significantly expanded. At least it can print patterns of more than 130mm in the length direction and width direction. Pad printing machines are more suitable for printing small-area products, but there are also many products with large dimensions and large printing areas. At this time, the steel plate of the pad printing machine must be enlarged. It is easier to expand in the vertical direction, and it is easier to expand in the horizontal direction. More difficult, expanding in the lateral direction will mean that the shuttle table needs a cylinder with a larger stroke. While the printing area expands, the pressure of the cylinders above and below the corresponding rubber head also needs to be greater.

4 colors pad printer with shuttle//Structure
Working table	4-station shuttle-type working table
Shuttle stroke	200mm
Ink supply system	Open inkwell ink supply system
Plate type and size	10mm steel plates/ plate. Size :150*150mm.
Pad dropping control	Double-cylinder , Continue pressing
Ink drying	Heat air
four colors pad printer//Usage and characters
Guide	Print both one color to 4 colors with shuttle worktable, overprint is more precision. With inkwell to store ink, ink adjustment more simple ; With coin aluminum structure ensure more stabilization and long life. Can print almost small size objects. So sold very nice in the world. Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations. Completely printing solution including ink and thinner, fixtures, steel plates, rubber pads provided when you send us samples to send. Independent Balance blade Technology Ensure ink removing easily . Make min Pressure to remove ink and prolong the life of steel plate; Installing large ink tray for printing more bigger area
Application fields	Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.
4 colors pad printer with shuttle//Parameter
Technical parameters	SPM4-150L/2P
	Max. plate size: 150×150 mm; Max. worktable area: 200×125mm; Max. printing area:130×130mm; Max. printing speed: 550pcs/h; Printable colour :4; Shuttle stroke: 200mm; Max product dimension: 300×260mm
	SPM4-200L/2P	SPM4-250L/2P
	Max. plate size: 150×200 mm; Max. worktable area: 200×125mm; Max. printing area:130×170mm; Max. printing speed: 550pcs/h; Printable colour :4; Shuttle stroke: 200mm; Max product dimension: 300×260mm.	Max. plate size: 150×250 mm; Max. worktable area: 200×125mm; Max. printing area:130×220mm; Max. printing speed: 550pcs/h; Printable colour :4; Shuttle stroke: 200mm; Max product dimension: 330×260mm.
Works supply	110V-220VPower supply; 5-7Bar Compress air;
Package list	Package dimension:1.050×0.990×1.460M Gross weight: 260kg; CBM: 1.5177
H.S.Code	8443198000
Certicate	CE
4 colors pad printer with shuttle //Advantage
Function	Microcomputer program controlling operating technique ; Streamline design ensure dexterous Appearance impressions; Coin aluminum structure frame coated Gross-Green color paint; Shuttle working table installed to get more precision overprint; Independency pressure adjustment of pad press-printing and picking up ink; Either testing or running mode to operate ; Inkwell to store and coating ink , ink adjustment more simple; Automatism digital count function; 4 colors pad printing with drying through blowing hot air: Ten grade printing speed setting, auto, semi-auto, testing operation mode setting; Auto balanced doctor blade available for efficient ink scraping; Widen ink-tray installed to print more larger dimension.

Summary:	This four-color shuttle pad printing machine is equipped with a steel plate with a width of 150mm, and the printing size has been significantly expanded. At least it can print patterns of more than 130mm in the length direction and width direction. Pad printing machines are more suitable for printing small-area products, but there are also many products with large dimensions and large printing areas. At this time, the steel plate of the pad printing machine must be enlarged. It is easier to expand in the vertical direction, and it is easier to expand in the horizontal direction. More difficult, expanding in the lateral direction will mean that the shuttle table needs a cylinder with a larger stroke. While the printing area expands, the pressure of the cylinders above and below the corresponding rubber head also needs to be greater.
Production Advantage :	.

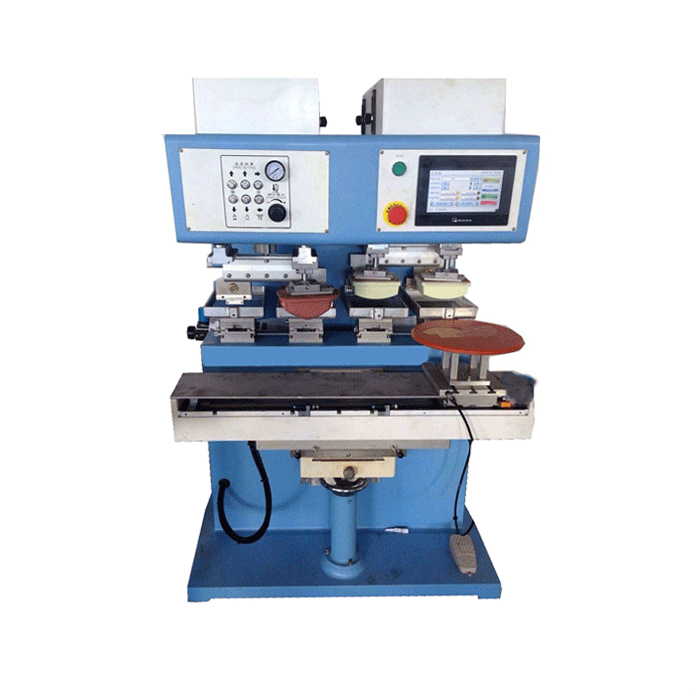

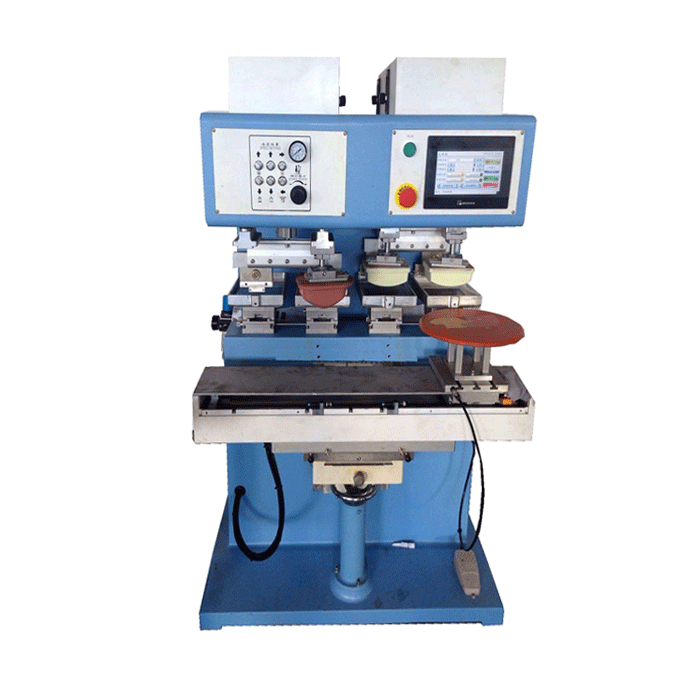

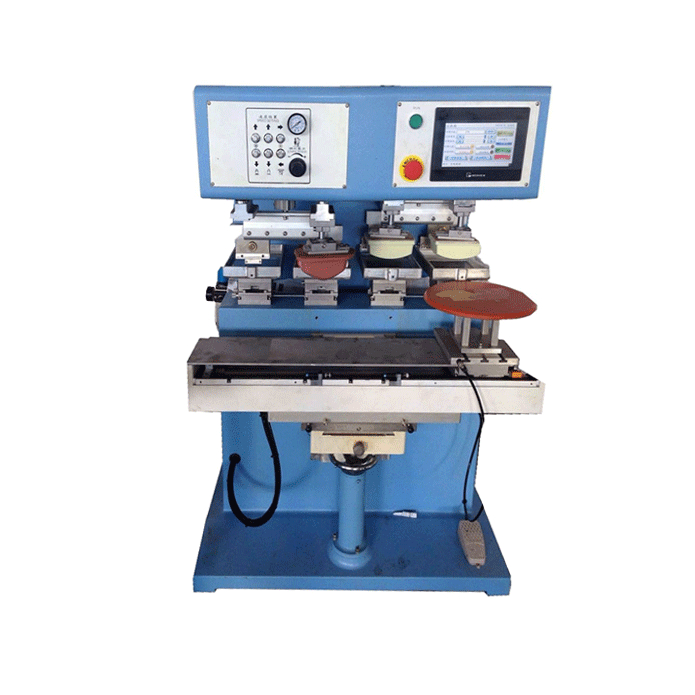

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5
