Description

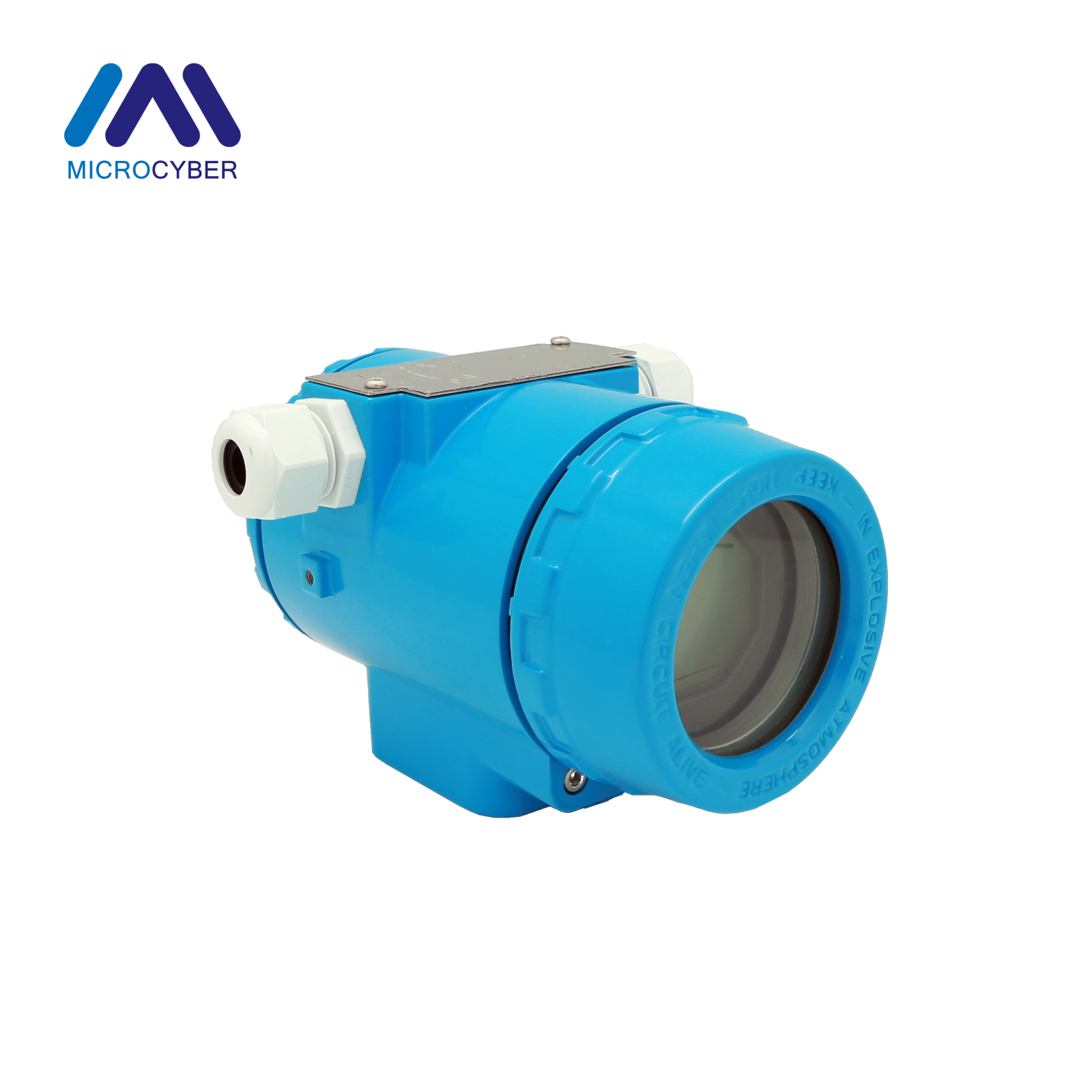

NCS-TT105 temperature transmitter is a new generation of smart transmitter with FF Hl, PROFIBUS PA or HART technology. NCS-TT105 transmitter integrates abundant function blocks and realizes not only normal measurement function but also complicated control strategy.

NCS-TT105 uses digital technology, so it can connect with many types of thermocouple and thermo resistive sensors. It has wide range and simple interface between field and control room, which reduces the expense of installation, operation and maintenance.

NCS-TT105 supports HART, FF, and PA protocols. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.

NCS-TT105 temperature transmitter uses resistive temperature detectors (RTD) or thermocouple and converts to fieldbus signal in order to measure temperature.

Features

Excellent Performance:

--- High precision: ±0.05% full range

--- Low temperature drift: < 50 PPM / ℃

Flexibility:

--- Sensor Type: resistance---Pt100, Cu50, Cu100, 0~50Ω, 0~2000Ω

--- Thermal resistance supports 2, 3 wire connection mode

--- Thermocouple can enablethe cold-end compensation function

Multi-Protocol

--- Number of channels: 2

--- Supports HART, FF, and PA protocols

Number of channels: 2

Sensor type: resistance---Pt100,Cu50,Cu100,0-SOOn, 0-20000

Current consumption (static）：≤14mA

Support multiple thermal resistances and thermocouples

Thermal resistance support 2/3-wire connection mode

Thermocouple can use cold end compensation function
