| Model: | 2040 |
|---|---|
| Brand: | FORSUN CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | cnc plasma cutter , plasma cutter |
| Price: |
US $12000
/ set
|
| Min. Order: | 12000 set |
| Last Online:29 Oct, 2020 |
Main Description of CNC Plasma Drilling & Cutting Machine with Flame Torch
FORSUN CNC plasma drilling cutting machine can resolve many problems caused by drilling steel plates after being cut by plasma or flame. It combines cutting and drilling to reduce process steps. Raw material becomes finished part by proceeding at one time. The efficiency and precision are increased significantly. And the cost of delivery, power, and human resources is reduced.
Combined with cold process drilling and thermal plasma and flame cutting, with only one programming, the machine can achieve drilling and cutting automatically. The design and development of the table-type CNC plasma drilling and cutting machine fully consider the two different processing technology features of CNC cutting and CNC drilling to ensure the rigidity and stability requirements during drilling. Drilling with high accuracy, drilling thickness can be up to 25mm, drilling diameter 1-20mm.
The CNC Plasma Cutting Machine is configured with a rigid welded frame that avoids vibration and with excellent cutting precision.
Fast cutting speed, high precision, and low cost.
The cutting incision is thin and tidily and can avoid the second processing.
High configurated CNC system, auto arc-striking, and stable performance.
Suitable Material of CNC Plasma Drilling Cutting Machine
FORSUN plasma cutting machine is suitable for cutting kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. It is applied to iron plates, aluminum plates, galvanized sheets, white steel plates, titanium plates, and other sheet metals.
CNC Plasma Cutter Project

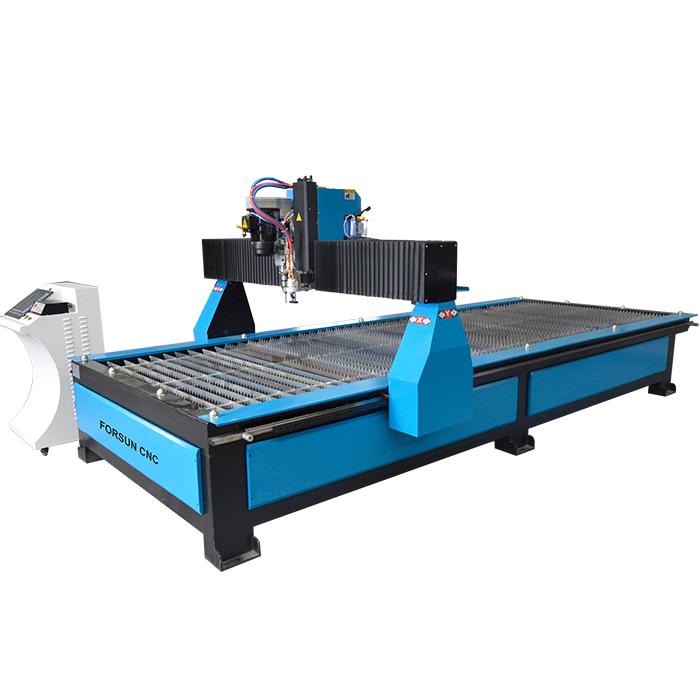

Machine Pictures of CNC Plasma Cutting Machine with Flame Torch
Benefits of CNC Plasma Cutting Machine
The CNC plasma cutting machine is equipped with a strong welding frame, which can avoid vibration and has excellent cutting accuracy. The rack and pinion have been quenched, which greatly improves the toughness and hardness of the running parts. All quenched and finely ground parts are treated with imported chemical anti-rust oil, and precision tools are automatically matched and meshed. It has the characteristics of high strength, high precision, and no deformation.
It can cut 1mm-20mm holes, and the drilling thickness can reach 25mm. It adopts air-cooling, water-cooling, and other cooling methods, and is equipped with imported metal cutting torches as standard, which completely solves the problem of easy burning of cutting torches. With built-in arc pressure adjustment, slit compensation, arc suppression reset, anti-collision system, it can work continuously for 24 hours.
Digital control of the drive, optional Japanese Panasonic servo motor, and drive, walking self-feedback system, strong anti-interference, fast response speed, high running precision, closed-loop control without losing step length, and long service life.
Technical Data of this Plasma Cutter
| Model Name | Plasma Cutting Machine FSP2040 |
| X, Y-Axis Travel | 2000X4000mm, Option: 600*900mm, 1300X2500mm(4X8ft), 2000X3000mm. 1300X2500mm(5X10ft). |
| Z Axis Travel | 200mm, Option; 300mm,400mm, 500mm,600mm. |
| Rotary Axis（Option） | 200mm(diameter)*2500mm |
| Plasma Power | 63A,100A,105A,120A,160A,200A |
| Power Source Brand | Hypertherm, Thermadyne, Victor, LGK |
| Drive System X, Y and Z axis | German Helical Rack and Pinion for X and Y-axis. And Z-axis with TBI ball screw |
| Transmission X, Y and Z axis | HIWIN/THK Rail Linear guide and bearings. |
| Motor for X, Y, and Z | Stepper motor / AC Servo motor |
| Machine Structure | Thicken weld steel tube machine body. Rigid gantry and side support, Professional Plasma cutter table |
| Working Voltage | 220V/50HZ/60HZ,3PH or 380V/50HZ/60HZ,3PH |
| Command Language | G Code & M Code |
| Operating System | Start controller / DSP Handheld Controller/ NC studio/Mach3 |
| Lubrication | Automatic lubrication system |
| Max. Rapid Travel Speed | 40000mm/min |
| Max. working Speed | 25000/min |
| Machining Function | carbon steel 0-50mm cutting thickness and stainless steel 0-20mm cutting thickness |
| Compatible Software | FastCam, Ucannest |
| Other Names | CNC plasma cutter, CNC plasma cutting machine, plasma CNC machine, CNC plasma cutter price, cheap CNC plasma cutter, small CNC plasma cutter, CNC plasma for sale, CNC plasma router, best CNC plasma cutter, CNC plasma machine for sale, mini CNC plasma cutter, CNC plasma cutting machine manufacturer |
| Suitable Materials | Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc |
| Applications | Sheet metal, kitchenware, components, decorations industry |
| Gross Weight | 2200 KGS |
| Package Size | 3700*2250*1850mm |
Why Choose Us:
Professional CNC Router manufactured with more than 10 years experience in CNC Router design, manufacture, machining, inspection, etc
All the spare parts are a world-famous brand like Siemens controller from Germany, Yaskawa servo motors from Japan, Igus cable from Germany, ABB from Switzerland, and so on.
All the machine bodies are through whole welding, heat treating, sandblasting and three times painting to make sure the machine body will be never out of frame or painting problem. It will make your machine always work in high precision, fast speed like the new machine.
7*24 hours service after the sale with English, Russia, Spanish or Portuguese, etc.
3 years warranty for main spare parts while easy broken parts are 1.5 years.
About FORSUN CNC:
Jinan FORSUN CNC Machinery Co., Ltd., one of the professional Wood CNC Router manufacturers and suppliers in China, has been focusing on providing high-quality CNC Router Machines and solutions for worldwide customers for 20 years. Main computerized CNC machine types: Wood CNC Router, 3d CNC carving machine, Wood CNC machine, ATC CNC router, Basic beginner CNC router, Mini desktop CNC router, Multi-Tool CNC machine, Rotary axis CNC engraver, 4/5 Axis CNC milling machine, CNC marble stone engraving machine, CNC plasma cutter, CNC foam cutting machine, CO2 laser cutting machine, fiber laser cutter, etc.
Forsun CNC Router helps you stay productive. We have the right CNC Router Machine tools for your application and we’re supporting you every step of the way.
