| Model: | 1228ATC |
|---|---|
| Brand: | FORSUN CNC |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | atc cnc router , cnc wood router , cnc router machine |
| Price: |
US $12000
/ set
|
| Min. Order: | 1 set |
| Last Online:29 Oct, 2020 |
ATC CNC Wood Router with Auto unloading
This ATC CNC wood router machine has a stronger frame and is equipped with an automatic tool changer and an automatic feeding device. This design is mainly for improving efficiency.
1. The design of the machine control interface is human-oriented. Operators can be trained easily without skilled workers. The machine moves quickly and efficiently, helping you to achieve a leap in productivity.
2. 9KW HQD ATC Spindle: Used for grooving and clamping different tools, used for cutting and engraving. The machine Always has a more firm and reasonable structure, It is easy to operate and durable for long-time heavy-duty work.
3. The machine adopts the combination of the vacuum table, which can strongly absorb materials in different parts.
4. Automatic Pusher Device: Automatically pushes the material after the whole machine is finished, and pushes the material to open the dust on the table.
5. Linear type Auto tool changer magazine: The use of a 12-tool rotating conveyor belt can speed up tool changes, thereby ensuring faster cycle times, thereby increasing throughput.
6. 1000W Servo motor: It has the advantages of high accuracy, fast speed, and long service life. In addition, it has a strong anti-overload capability and can withstand a load that is three times the rated torque. When running at high speed, it has the advantages of stable operation and low noise.
Applications of ATC Wood CNC Router:
This CNC Router Machine was made especially for industries such as Foam mold making, Cabinet-making, plastic sheeting processing, and sign making, aluminum cutting, etc.
1. Panel furniture, custom furniture, cabinet wardrobes, office furniture, tatami mats, computer desks, wooden speakers, wooden cabinets, cabinet doors, sliding doors, plastic doors, interior doors, wooden doors, and other different processing.
2. Advertising: advertising signs, logo making, acrylic cutting, plastic molding, and engraving on various advertising decoration materials.
3. Other industries: relief sculpture, widely used in the craft gift industry, aluminum industry, cutting aluminum, aluminum composite panel, aluminum honeycomb panel, aluminum profile, 3D decorative engraving process, wave board production, LED, neon sign cutting, plastic mold Make a lightbox, acrylic, copper board, PVC board, artificial stone, MDF board, and other sheet processing.
Parameter Data
| Model Name | FS1228ATC |
| X, Y-Axis Travel | 1200X2800mm, Option:1300X2500mm(4X8ft), 2000X3000mm. 1500X3000mm(5X10ft), 2000X4000mm |
| Z-Axis Travel | 200mm, Option: 300mm,400mm,500mm,600mm |
| Spindle Power | 9.0KW ATC Spindle with 24000RPM, ISO30, ER32 |
| Auto Pusher | Auto Pusher |
| Tool Magazine | Linear type Auto tool changer magazine, Option: Carousel Tool Magzine. |
| Motor for X, Y, and Z | 1000W YAKO Servo motor |
| Operating System | FORSUN Controller Option: Syntec, NC Studio controller. SIEMENS Controller, DSP |
| Drive System X, Y, and Z-axis | Helical Rack and Pinion for X and Y-Axis, High precision ball screw for the Z-axis. |
| Transmission X, Y, and Z-axis | HIWIN/THK Rail Linear guide and bearings. |
| Machine structure | Cast steel table structure and side support, aluminum T-Plate Extrusion Combined vacuum table |
| Working Voltage | 220V/50HZ/60HZ,3PH 380V/50HZ/60HZ,3PH |
| Command Language | G Code & M Code |
| Collet | ISO30,φ4，φ6,1/8,1/9 |
| Lubrication | Automatic lubrication system |
| Tool Calibration | Automatic tool sensor |
| Dust collector system | 3.0KW Dust collector system with 2 bags |
| Max. Rapid Travel Speed | 80000mm/min |
| Max. working Speed | 45000/min |
| Repeatability | +/-0.04mm/300mm |
| Working Accuracy | +/-0.03mm/300mm |
| Other Names of the CNC Router | CNC Wood Router, CNC Router Machine, Router Machine, Wood CNC Machine, CNC Cutting Machine, CNC Wood Carving Machine, CNC Engraver, Best CNC Router, CNC Router Price, Wood Router, Wood CNC Router, 3D CNC Router, Router CNC, Aluminum CNC Router. CNC Engraving Machine, CNC Milling Machine, CNC Drilling Machine, 4×8 CNC Router, Cheap CNC Router, ATC CNC router, |
| Machining Function | 2D Machining, 2.5D Machining, 3D Machining |
| Compatible Software | Type3, UcancCAM, ArtcCAM, AlphCAM, Vectric, Enroute, MasterCAM Cabinet Vision, etc |
| Gross Weight | 2500 KGS |
| Package Size | Plywood Package 4000*2250*1900mm |

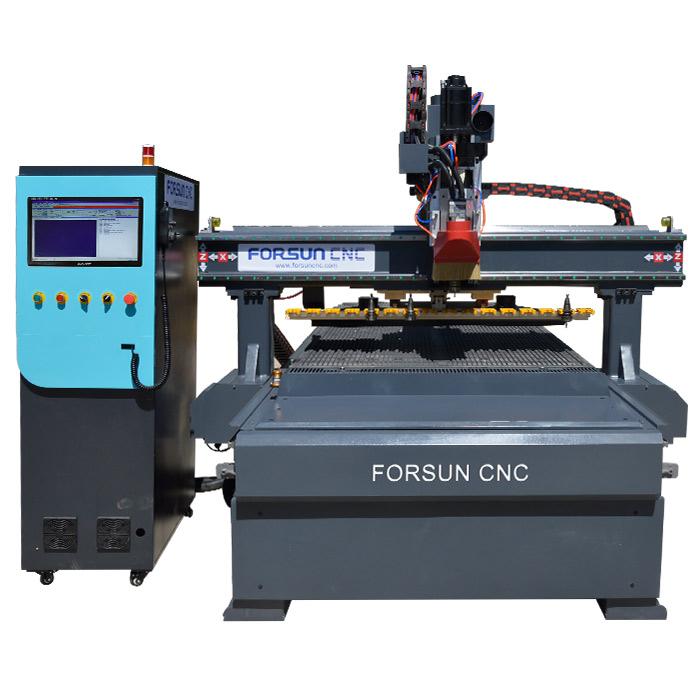

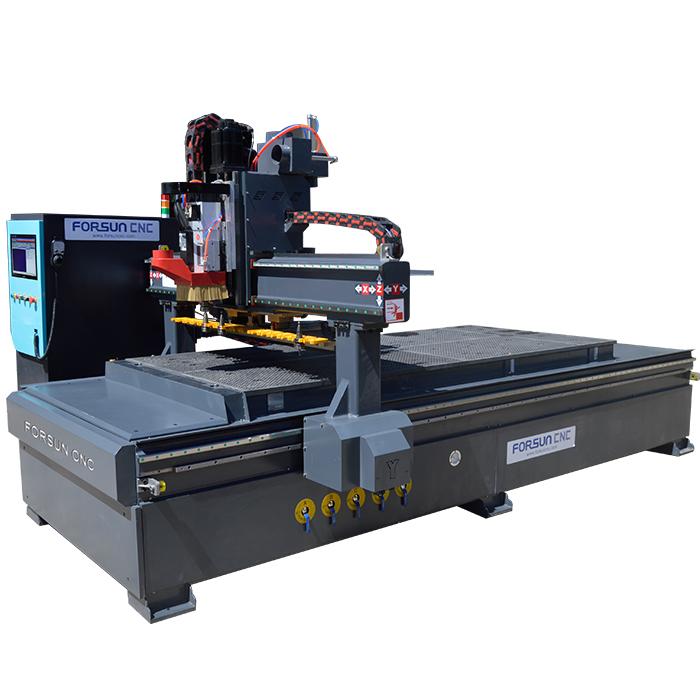

ATC CNC Router Machine Gallery
Wood Cutting Machine Projects Gallery
