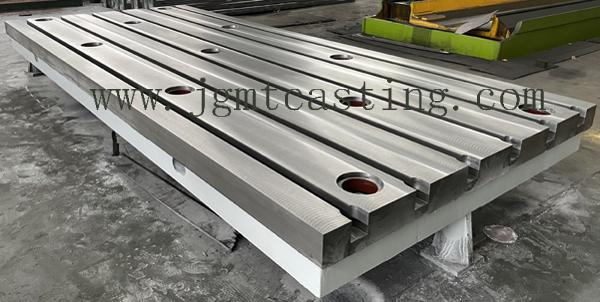

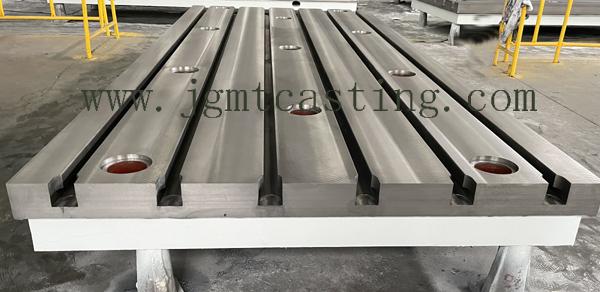

The Cast Iron T-slot Plates are industrial measuring tool mainly used to secure work piece. The workers utilize it for deb ing, installing, and maintaining the equipment. This kind of product could be manufactured with precision grade 1, 2, 3 or fine machining.
Materials and processing
The raw material of the cast iron T-slot plates is the high-strength cast iron GG20-30(HT200-300). After two times annealing treatment, the cast iron surface plate has the features of steady precision and abrasion resistance.
Specification
The size range is from 100mm*100mm to 3000mm*8000mm. For the larger one, it can be used by the splicing method. In our factory, we also can make the special sized product according to your requirement.
Application
Motor assembly test, Vibration test, Rail locomotives installation, Ship fitting, etc.
Standard sizes for reference:
|
No. |
Sizes (mm) |
Surface accuracy (according to DIN876) |
|
1 |
2000*2000*300 |
I/II/III |
|
2 |
2500*2000*300 |
I/II/III |
|
3 |
3000*2000*300 |
I/II/III |
|
4 |
3500*2000*300 |
I/II/III |
|
5 |
4000*2000*300 |
I/II/III |
|
6 |
4500*2000*300 |
I/II/III |
|
7 |
5000*2000*300 |
I/II/III |
|
8 |
5500*2000*300 |
I/II/III |
|
9 |
6000*2000*300 |
II/III |
|
10 |
6500*2000*300 |
II/III |
|
11 |
7000*2000*300 |
II/III |
|
12 |
8000*2000*300 |
II/III |
Other sizes and surface accuracy on request!
