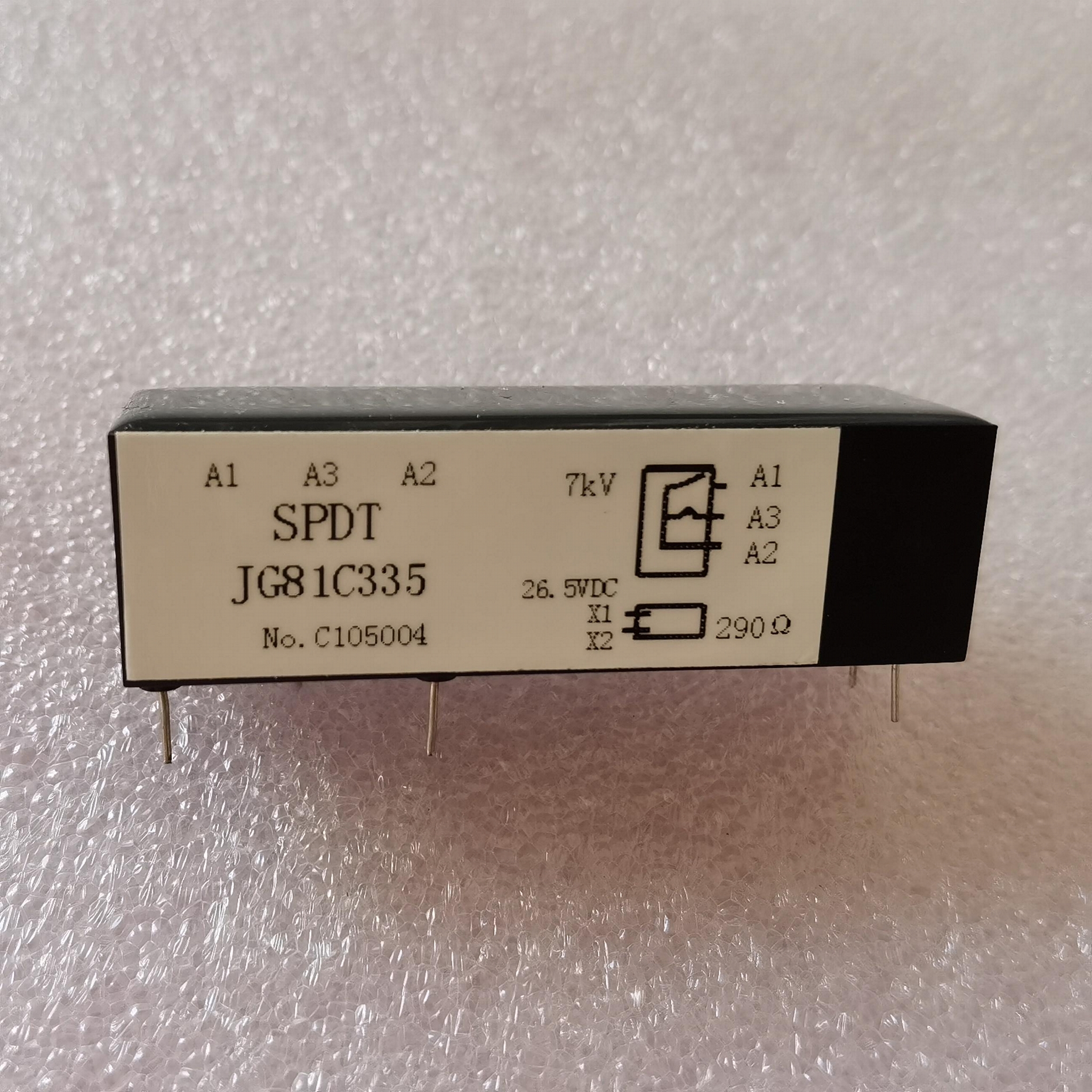

| Model: | JG81C |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Relay & Contactor |
| Label: | ceramic vacuum relay , vacuum relay , HV vacuum relay |
| Price: |
¥1150
/ pc
|
| Min. Order: | 1 pc |
| Last Online:20 May, 2024 |
Contact form: SPDT
Working voltage: 7kV
Carrying current: 30A
Wire pack working voltage: 12Vdc/26.5Vdc/115Vdc
Features: mounted with PCBs, sealed structure
|
Nominal specifications |
Unit |
JG81C235 |
JG81C245 |
|
Contact type |
|
C |
C |
|
Contact form |
|
SPDT |
SPDT |
|
Test voltage max. (15μA leakage max.) |
KV peak |
8 |
8 |
|
Operating voltage max. (leakage I≤15μA) |
|
||
|
DC or 50Hz/60Hz |
KV peak |
7 |
7 |
|
2.5MHz |
KV peak |
- |
- |
|
16 MHz |
KV peak |
- |
- |
|
32 MHz |
KV peak |
- |
- |
|
Continuous carrying current |
|
||
|
DC or 50Hz/60Hz |
Amps |
5 |
30 |
|
2.5MHz |
Amps |
- |
- |
|
16 MHz |
Amps |
- |
- |
|
32 MHz |
Amps |
- |
- |
|
Coil breakdown voltage (50Hz/60Hz, v rms) |
V |
500 |
500 |
|
Resistance contact max. (1A, 28 vdc) |
ohms |
0.02 |
0.02 |
|
Max operating time |
ms |
10 |
10 |
|
Max release time |
ms |
10 |
10 |
|
Nominal weight |
g |
72 |
72 |
|
Vibration frequency (sine, 55~500Hz, peak) |
G’s |
10 |
10 |
|
Shock grade (11ms, 1/2 sine, peak) |
G’s |
30 |
30 |
|
Working ambient temperature |
℃ |
-55~+85 |
-55~+85 |
|
Coil Specifications (25℃ sea level) |
||||
|
Nominal voltage, vdc |
12 |
|
26.5 |
115 |
|
Max pickup voltage, vdc |
8 |
|
16 |
80 |
|
Drop out voltage, vdc |
0.5-5 |
|
1-10 |
5-50 |
|
Coil resistance (Ω ± 10%) |
70 |
|
290 |
4700 |
