Ceramic Vacuum Relay JGA-20

Model:JGA-20
Brand:-
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Relay & Contactor
Label:ceramic vacuum relay , vacuum relay , HV vacuum relay
Price: ¥2500 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Product Description

Contact form: SGST-NO

Working voltage: 35kV

Carrying current: 110A

Wire pack working voltage: 12Vdc/24Vdc/26.5Vdc/115Vdc

Features: ceramic shell, high withstand voltage, good carrying capability.

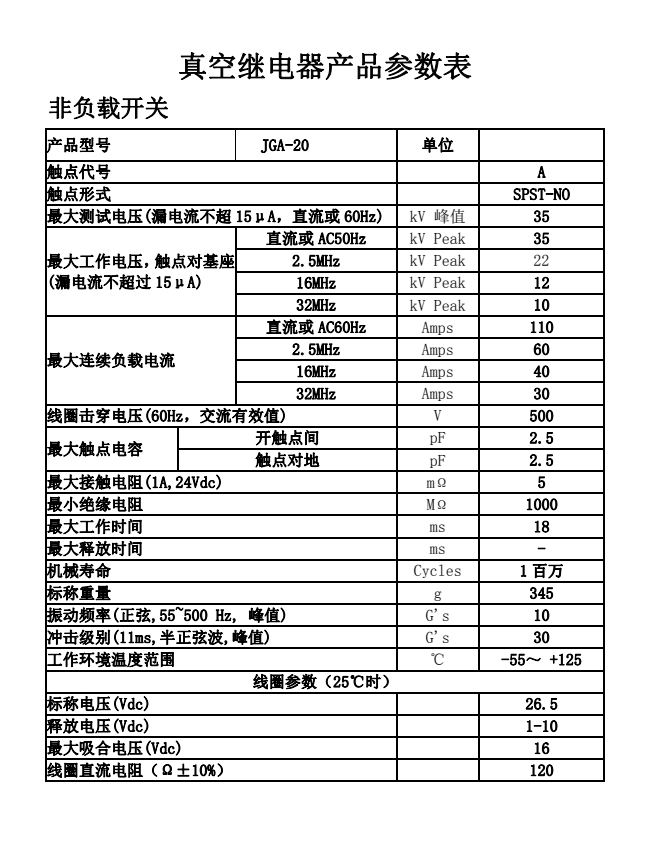

JGA-20

Contact number



A

Contact form



SPST-NO

Test voltage max.

(15μA leakage max., DC or 60Hz)

KV peak

35

Operating voltage max.

(contact to base, leakage I≤15μA)

DC or AC 50Hz

KV peak

35

2.5MHz

KV peak

22

16 MHz

KV peak

12

32 MHz

KV peak

10

Continuous carrying current max.

DC or AC 60Hz

Amps

110

2.5MHz

Amps

60

16 MHz

Amps

40

32 MHz

Amps

30

Coil breakdown voltage

(50Hz/60Hz, v rms)

V

500

Contact capacitance max.

Across open contacts

pF

2.5

Contacts to ground

pF

2.5

Resistance contact max. (1A, 24 vdc)

5

Insulation resistance min.

1000

Max operating time

ms

18

Max dropout time

ms

-

Mechanical life

Cycles

1 million

Nominal weight

g

345

Vibration frequency

(sine, 55~500Hz, peak)

G’s

10

Shock grade (11ms, 1/2 sine, peak)

G’s

30

Working ambient temperature

-55~+125

Coil Specifications (25℃)

Nominal voltage, vdc

26.5

Max pickup voltage, vdc

16

Drop out voltage, vdc

1-10

Coil dc resistance (Ω ± 10%)

120


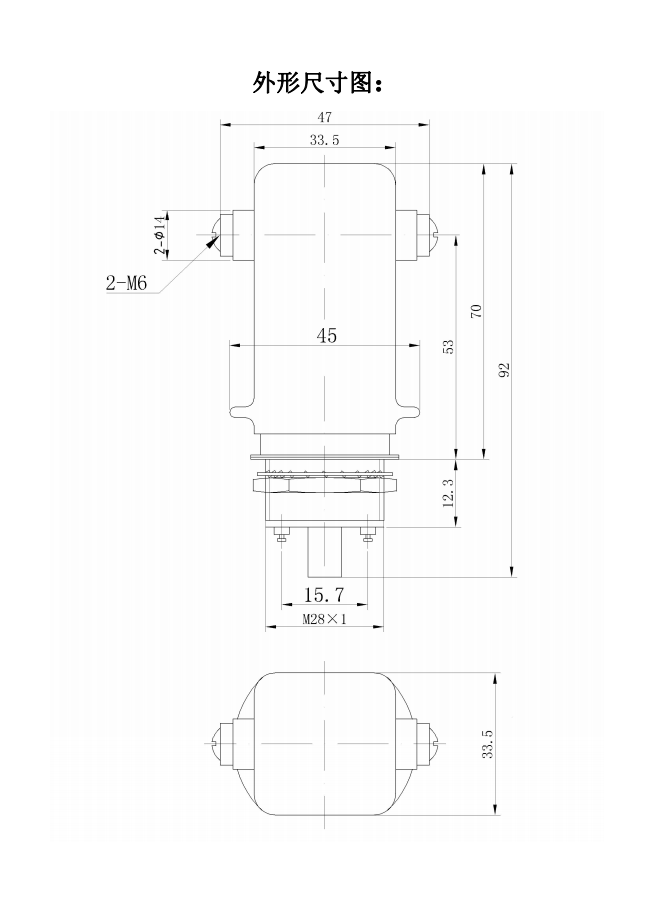

Product Image

Ceramic Vacuum Relay JGA-20 1
Img 1
Ceramic Vacuum Relay JGA-20 2
Img 2
Ceramic Vacuum Relay JGA-20 3
Img 3
Ceramic Vacuum Relay JGA-20 4
Img 4
Ceramic Vacuum Relay JGA-20 5
Img 5
Ceramic Vacuum Relay JGA-20 6
Img 6
Ceramic Vacuum Relay JGA-20 7
Img 7
Ceramic Vacuum Relay JGA-20 8
Img 8
