| Model: | - |
|---|---|
| Brand: | SEGMENsensor |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Sense Organ |
| Label: | level sensor , liquid indicator , level measurement |
| Price: |
-
|
| Min. Order: | - |
| Last Online:12 Aug, 2024 |

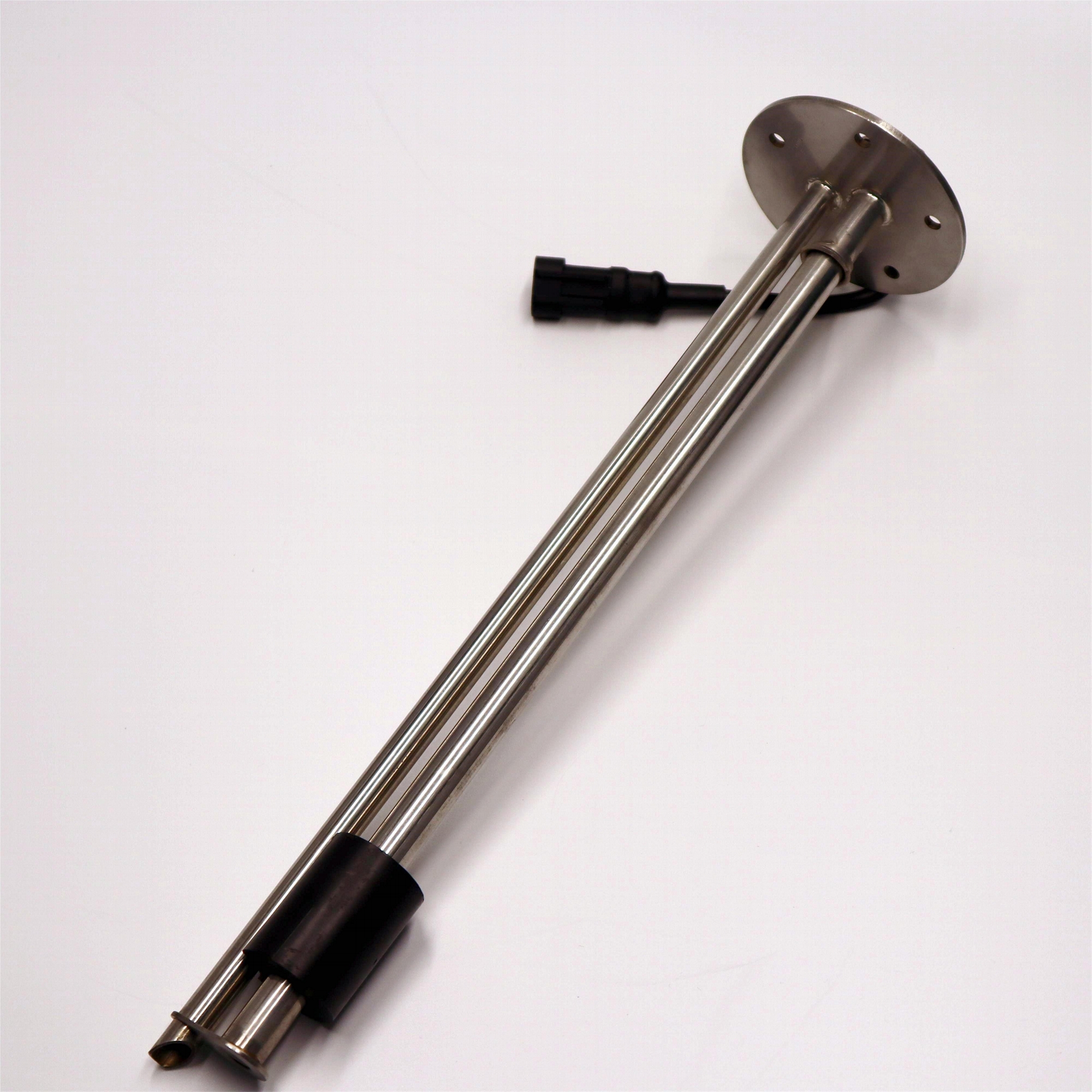

*Assembly: SAE standard 5 holes, BSP or NPT thread.
Ability to operate at very hot and cold
temperatures in an under the hood environment
• Low cost
• Housing vapor sealed
• Different headers available for different vehicles
• Millions of reliable switching operations
• Accurate control of the open and closure points
II. Stand Electrical Parameter
Parameter：
| Type | 1 | 2 | 3 |
| Maximum switching power | 10W | 50W | 5W |
| Max. switching voltage (DC) | 200V | 350V | 175V |
| Maximum Switching Voltage (AC） | 140V | 300V | 125V |
| Maximum Switching Current (DC) | 0.5A | 0.7A | 0.4A |
| Maximum Switching Current (AC) | 0.5A | 0.5A | 0.28mA |
| Minimum Breakdown Voltage | 250V DC | 500V DC | 200V DC |
| Maximum Load Current | 1.0A | 2.5A | 0.5A |
| Maximum contact impedance | 200mΩ | 500mΩ | 200mΩ |
| Minimum Insulation Resistance | 10^8mΩ | 10^8mΩ | 10^8mΩ |
| Operating Temperature Range | -40℃~+85℃ | -40℃~+85℃ | -40℃~+85℃ |
*Can be customized temperature to 200℃。
Working principal
The reed switch principle is commonly used in level sensors to detect the level of a liquid or solid material. Reed switches consist of two flexible metal reeds that are hermetically sealed within a glass capsule containing an inert gas1.
