Product Description

1、When the product is printed, it is moved to the LED lamp for drying and curing, which                 greatly reduces the damage to the screen frame

2、Full touch screen man-machine dialogue control mode, simple operation and safe for workers

3、It is suitable for multi-color overprinting of bottles without registration points for round              shaped products

4、This is a high precision and high efficiency surface screen printing machine, left and right,              rotation, shuttle full servo control, up and down using three-phase frequency conversion              motor control, printing balance vibration is small, high precision, stable operation, multi-              color overprinting accurate; Adopting double column structure, sanling 5UPLC system,                  running smoothly at high speed.

5、The left and right movements of the printing head are driven by linear guide rails. Double             guide column left and right mesh clamping arm, at the same time install plate distance                 adjustment device, printing accuracy: ± 0.03mm, running speed can reach 1800 times per             hour.

6、Emergency stop automatic rise alarm shutdown device, more humanized, higher safety factor.

Specification

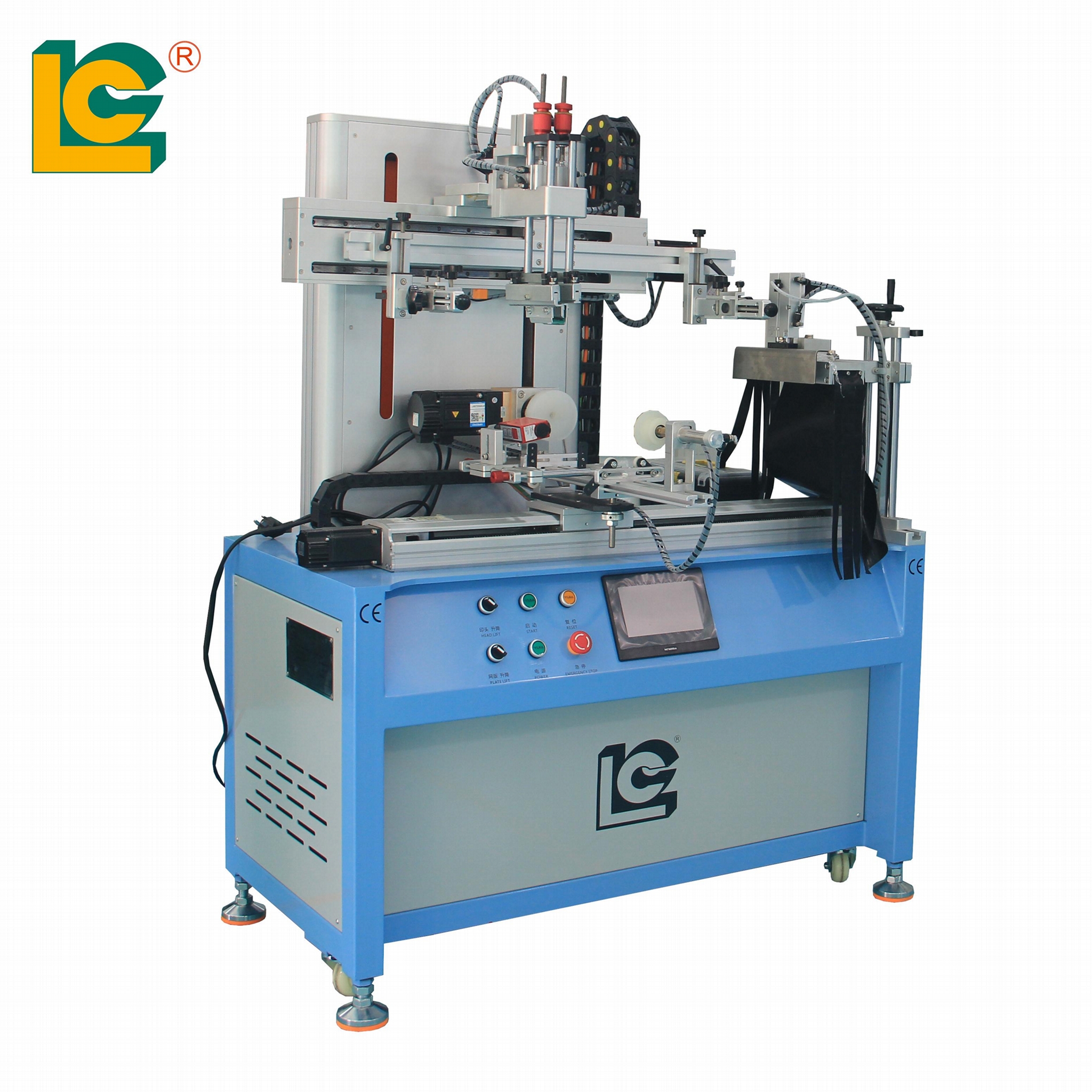

1.Model number: LC-400ES+UV

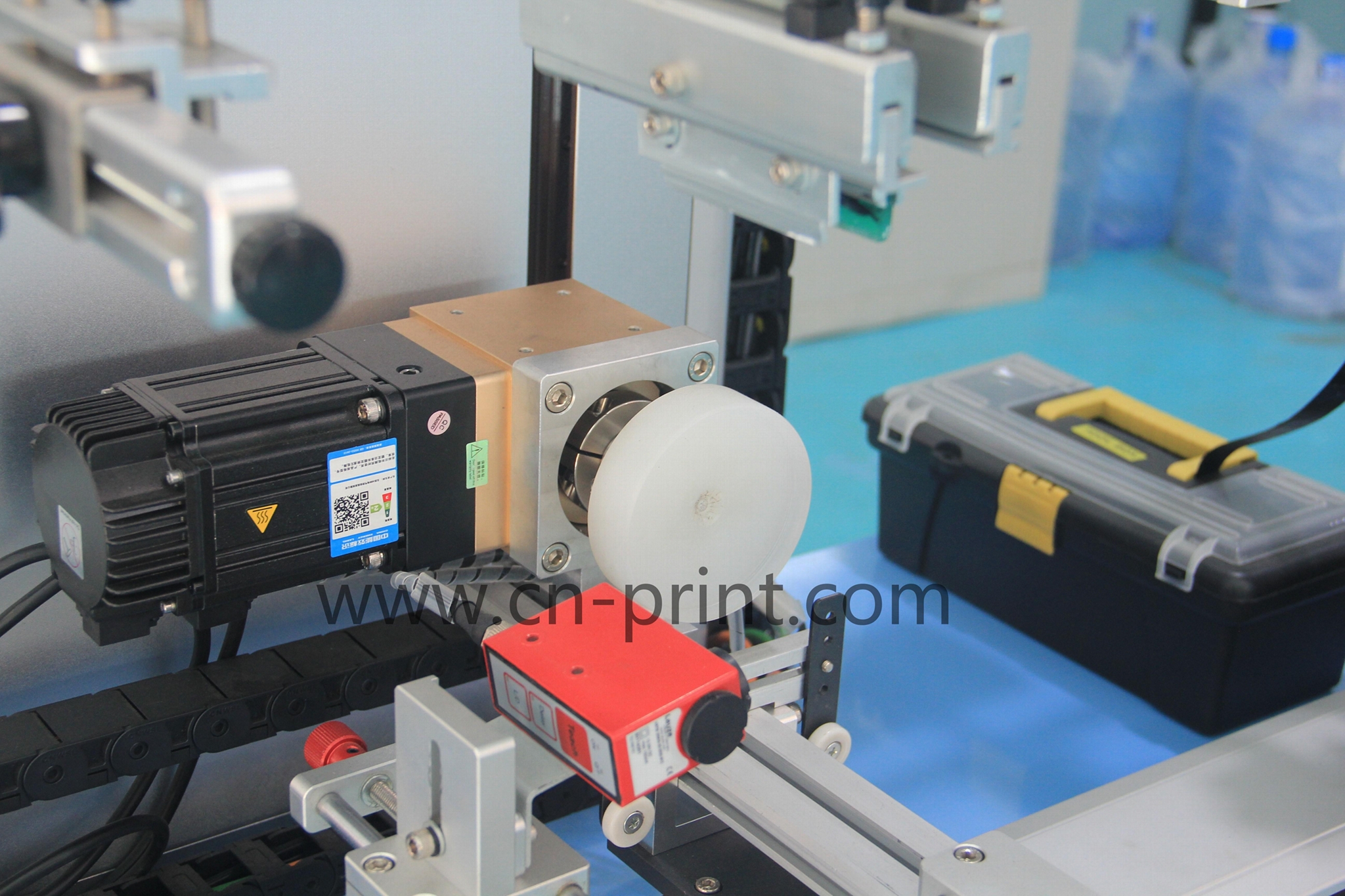

2.3 set ABB Swiss SERVO Motor & PLC

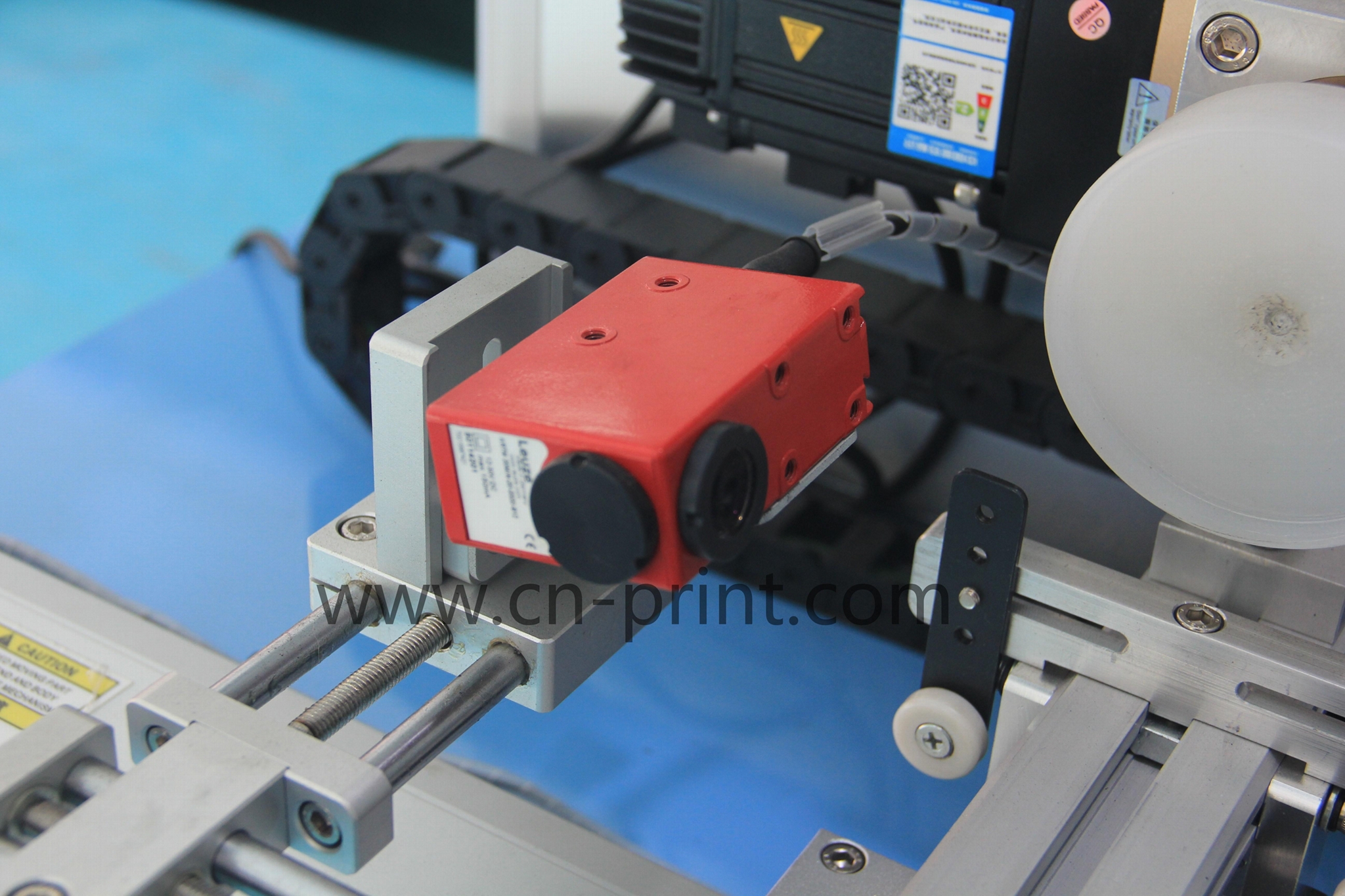

3.Germany LEUZE Brand Color Sensor
4.Product appearance: Round
5.Minimum printing diameter: φ10mm
6.Maximum printing diameter: φ120mm
7.Maximum printing area: L375m*W220mm
8.Printing Speed: 1800PC/Hr
9.Machine weight: 420kg
10.Air pressure: 0.5Mpa
11.Power: 3KW
12.Voltage power: 220V/50Hz

LED Lamp parameter:
1.Wave length: 395nm
2.Electric power: 1.4KW
3.Optical power: 20W/CM2
