Continuous sintering furnace, multi temperature zone chain furnace

Model:CL
Brand:chenli
Origin:Made In China
Category:Industrial Supplies / Electrical & Electronic Product Equipment
Label:tunnel furnace , Mesh belt furnace , Continuous sintering
Price: ¥320000 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

Qingdao Chenli Electronics Co., Ltd

Biz MemberShan Dong - China
Last Online:21 Dec, 2024

Product Description

Characteristics of Chain Sintering Furnace:
This equipment is an atmosphere protection furnace, and the protective atmosphere includes hydrogen, nitrogen, argon, etc.
The equipment has continuous operation to ensure production efficiency.
The combination of a unique air curtain and a mechanical curtain ensures that the furnace is isolated from the air.
Multi temperature zone control of furnace temperature facilitates adjustment of process curve.
The chain belt speed is infinitely and continuously adjustable.
Humidifiers can be equipped according to user requirements.

Main technical indicators of chain sintering furnace

Bandwidth: 90~350 mm

Furnace height: 100~200 mm

Furnace width: 100~370 mm

Cooling section length: 1000~3000 mm

Temperature range: 300~1050℃

Isothermal zone length: 600~1500 mm

Control accuracy: ±2℃

Number of control segments: 4-10 segments

Belt speed: 20~500 mm/min

Heating time: 90~240min

Heating power: 20~120 KVA


Product Image

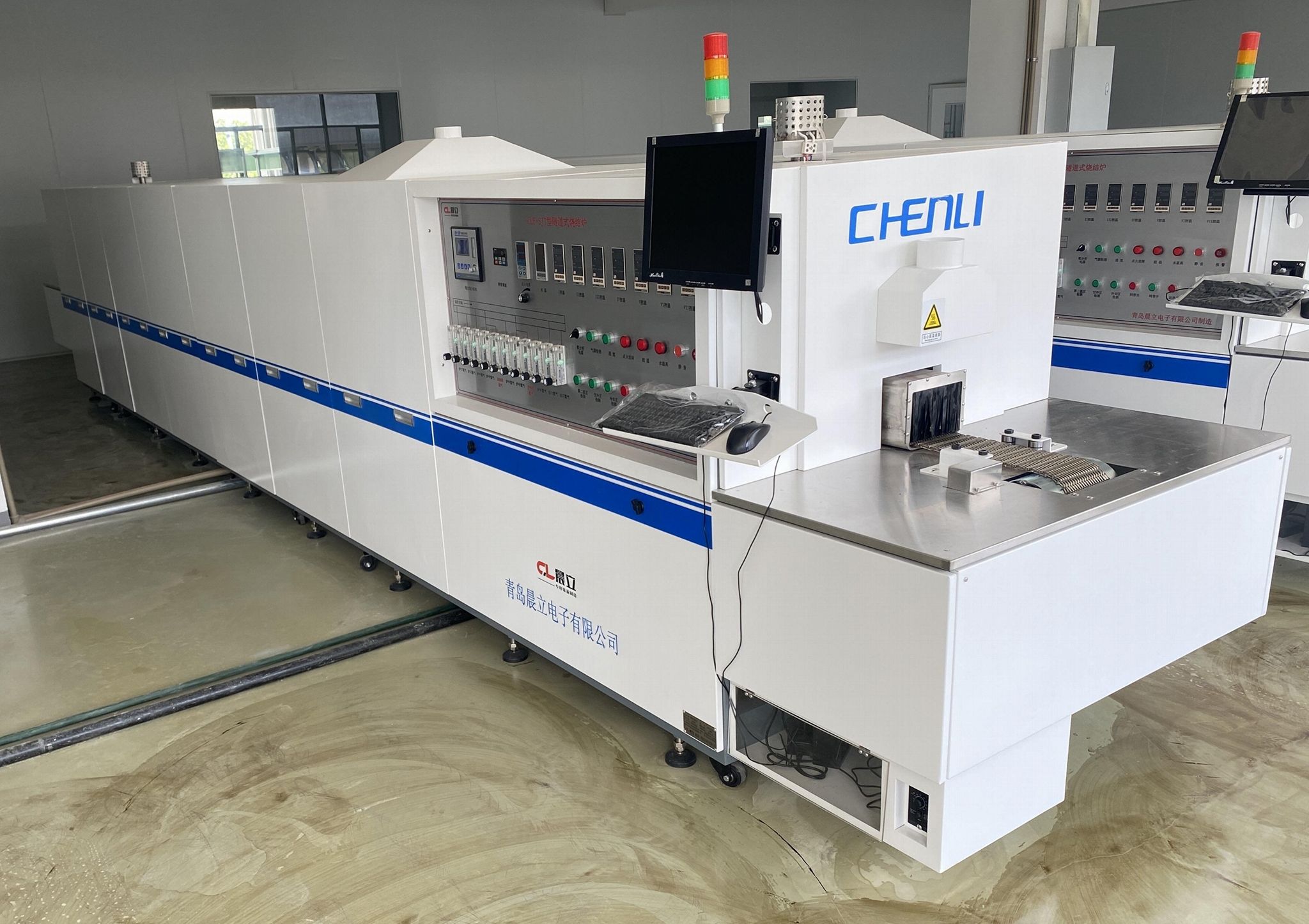

Continuous sintering furnace, multi temperature zone chain furnace 1
Img 1
Continuous sintering furnace, multi temperature zone chain furnace 2
Img 2
Continuous sintering furnace, multi temperature zone chain furnace 3
Img 3
Continuous sintering furnace, multi temperature zone chain furnace 4
Img 4
Continuous sintering furnace, multi temperature zone chain furnace 5
Img 5
