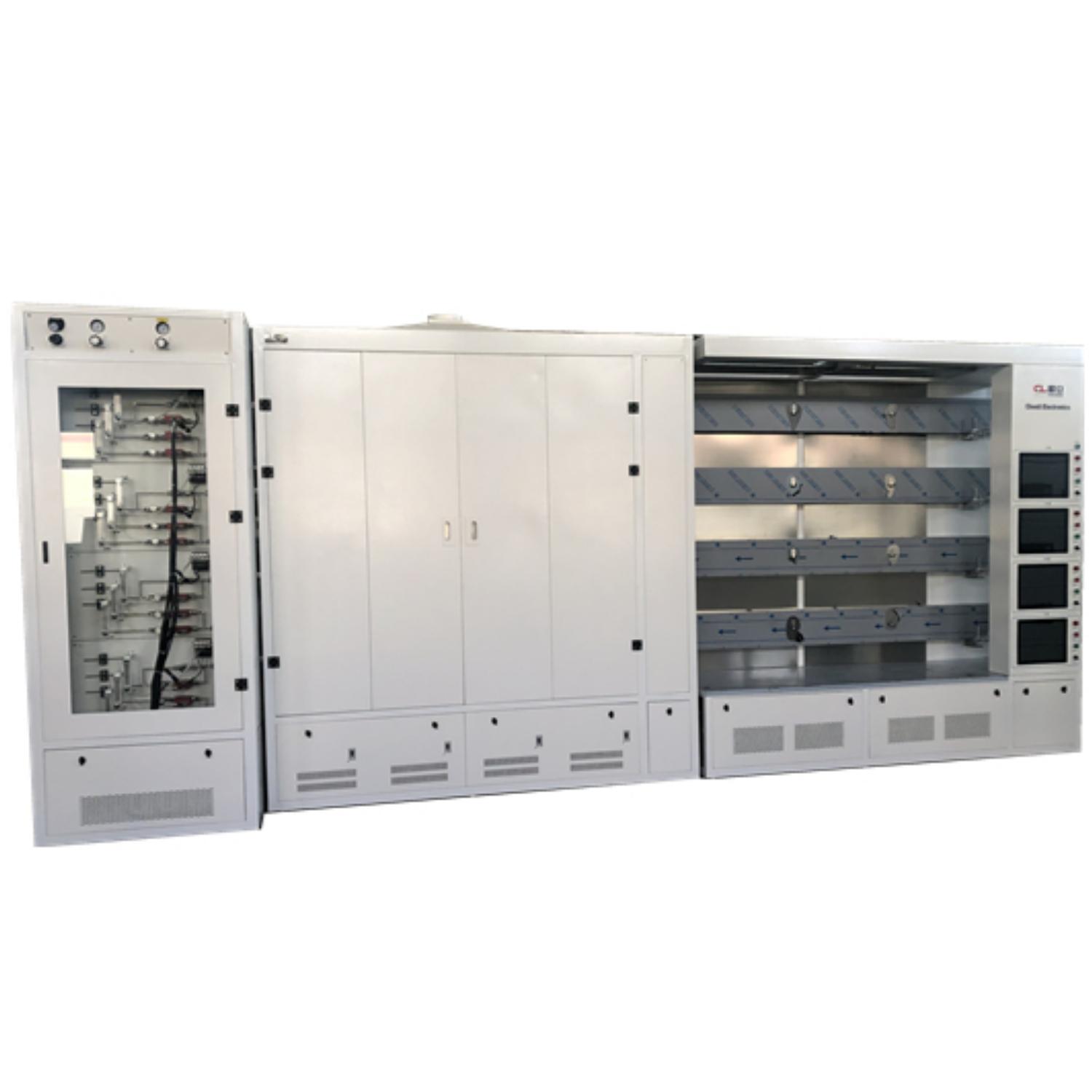

Double tube programmable diffusion furnace manufacturer, TEL diffusion furnace

Double tube programmable diffusion furnace manufacturer, TEL diffusion furnace 1

Double tube programmable diffusion furnace manufacturer, TEL diffusion furnace 2

Double tube programmable diffusion furnace manufacturer, TEL diffusion furnace 3

Double tube programmable diffusion furnace manufacturer, TEL diffusion furnace 4

Model:	CL
Brand:	chenli
Origin:	Made In China
Category:	Industrial Supplies / Electrical & Electronic Product Equipment
Label:	Diffusion furnace , Programmable diffusi , TEL diffusion furnac
Price:	¥250000 / pc
Min. Order:	1 pc

Inquire Now

Member Information

Qingdao Chenli Electronics Co., Ltd

Biz MemberShan Dong - China

Last Online:27 Dec, 2024

Product Description

Number of furnace tubes: 1-4 tubes

Process pipe diameter: Φ 90-360 mm (3-12 inches)

Length of constant temperature zone: 760～1000 mm±1.0℃ (300～800℃) 760～1000 mm±0.5℃(800～1280℃)

Single point stability: ±1.0℃/24h (300～800℃) ±0.5℃/24h (800～1280℃)

Number of gas sources: ≤ 7, can be equipped with constant temperature source bottle and hydrogen oxygen synthesis igniter

Gas Control: Float/Mass Flow Meter

Cantilever boat parameters: speed: 20-1000 mm/min Travel: 2000 mm Positioning accuracy: ± 1 mm Load: 17 Kg

Ultra clean workbench: Purification level: 100 level (10000 level factory building)

Noise: ≤ 62dB（A）

Vibration: ≤ 3μm

Product Image

Img 1

Img 2

Img 3

Img 4

Img 5

Img 6
