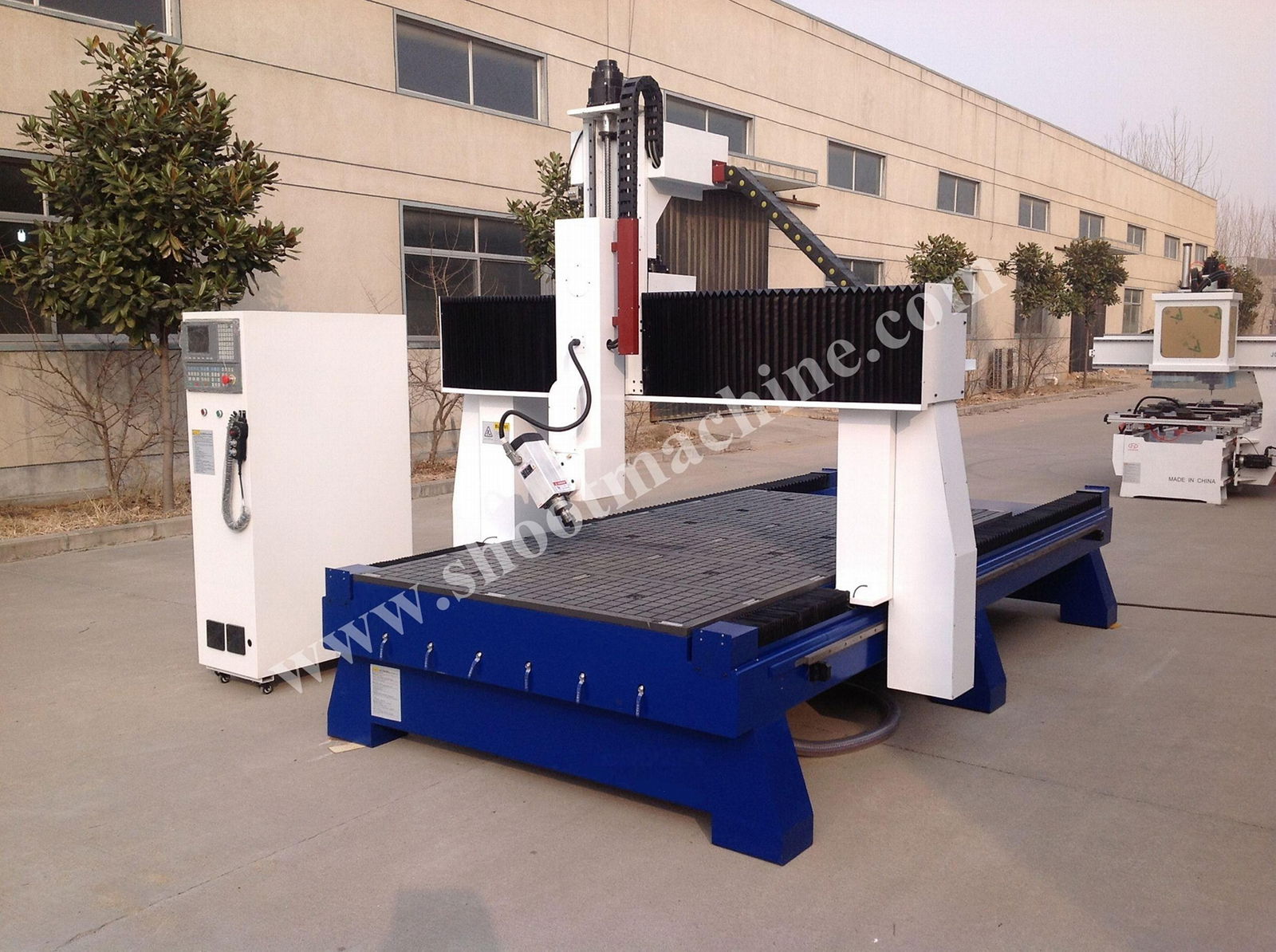

4 Axis CNC Router Machine with Rotary function,SHCNC1325RA
Product Description
| |
|
| 4 Axis CNC Router Machine With Rotary Function |
| Model |
SHCNC1325RA |
| Principal axis |
HQD 9KW air cooled spindle |
| Screw rod |
Taiwan |
| Track |
Taiwan |
| Rack |
Jueli |
| Drive |
YASKAWA, Japan |
| System |
Weihong |
| Power Supply |
380V/50HZ |
| Frequency converter |
Fuling |
| Table top |
adsorbent |
| Motion structure |
X/Y rack, Z screw |
| Working area |
1300*2500*500mm |
| Slider |
Taiwan |
| Clamping diameter |
ER32 |
| Spindle speed |
0-18000r/min |
| Electric machinery |
YASKAWA, Japan |
| Control mode |
Independent control cabinet |
| Processing speed |
0-20000mm/min |
| Operation mode |
Gantry movement |
| Option |
| Wrench, computer |
| Auto change cutter tools, with 8pcs cutter or 12pcs cutter |
|

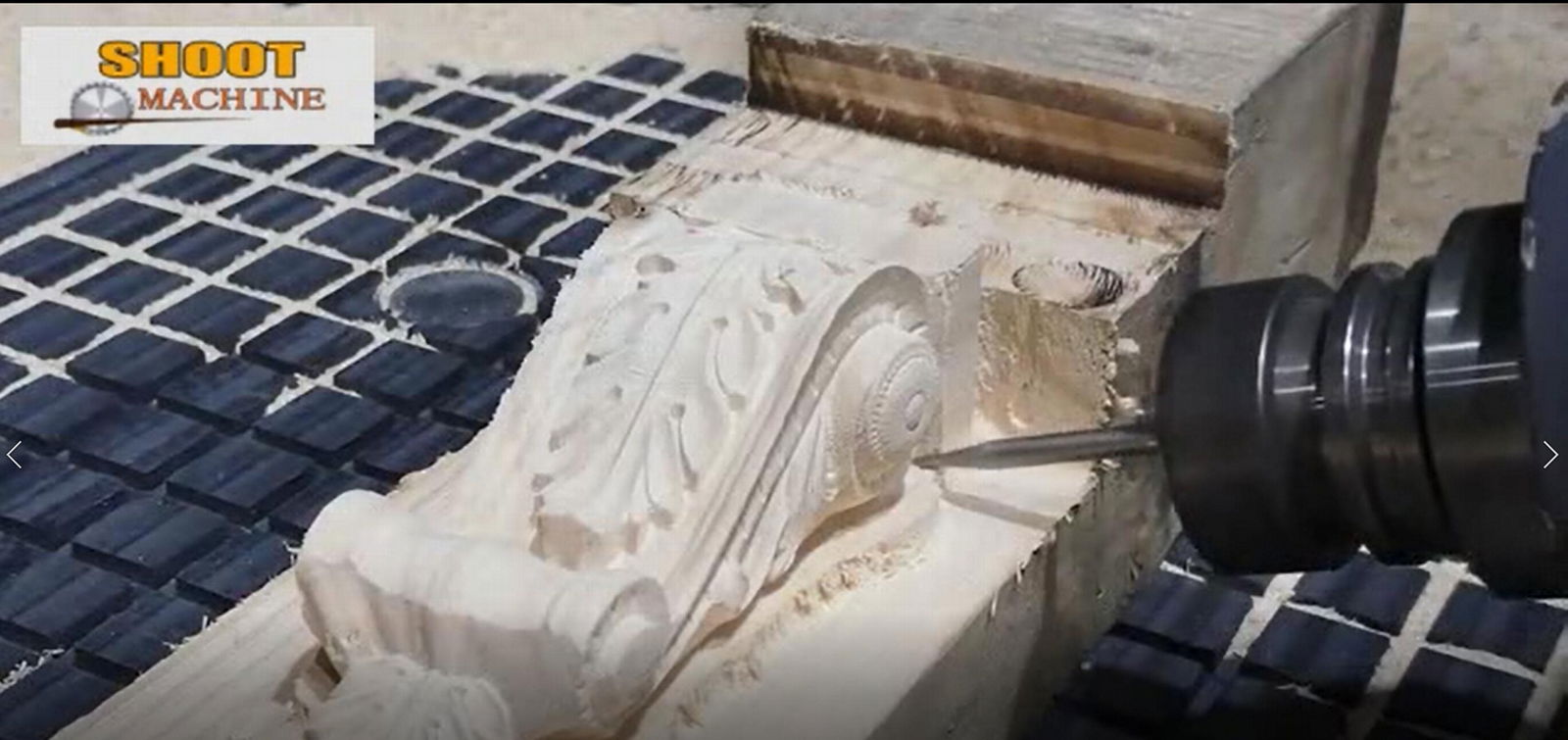

Product Image
