Router shell Shuttle pad printer

Model:SPM4-200T
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , pad press , pad printing machine
Price: US $4529 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

Product Description

Four-color pad printer for router shell

1. Product printing suitability

• The router shell is usually made of plastic, and its surface shape may be complex, with flat surfaces, curved surfaces and some small concave and convex structures. Four-color shuttle and ink cup pad printers are very suitable for this product. Because the pad printing head of the pad printer can flexibly transfer ink according to the shape of the shell, it can accurately print the pattern on different surfaces. And through four-color printing, rich colors and exquisite patterns can be achieved, such as printing complex pattern combinations such as brand logos, product models, and function icons.

2. Advantages of four-color shuttle function

• Color accuracy: The four-color shuttle function allows the machine to accurately control the printing order and position of the four colors. When printing the router shell, just like printing other electronic products, the color of the design pattern needs to be accurately restored. The shuttle system can ensure that each color can be printed in the correct position, realize accurate color superposition, and finally present a clear and bright pattern effect, such as some brand logos with gradient colors or status indicator icons with multiple colors.

3. Features and advantages of ink cups

• Precise ink control: The ink cup design of the ink cup pad printer can accurately control the ink supply. This is very important for router shell printing. Because the patterns on the shell may vary in size, accurate ink supply can ensure the color uniformity of the pattern.

• Reduce waste and pollution: The ink cup can effectively reduce the volatilization and waste of ink. Compared with the traditional open ink supply method, the ink cup seals the ink in a relatively independent space, avoiding the volatilization of the ink caused by exposure to the air. This not only saves ink costs, but is also more environmentally friendly, in line with the requirements of modern production for green environmental protection. At the same time, reducing the ink residue on the surface of the machine also reduces the pollution to the machine and extends the service life of the machine.

SPM4-200T 4 colors pad printer with shuttle//Structure

Working table

4-station shuttle-type working table

Shuttle stroke

125mm

Ink supply system

90mm diameter Closed cup type system

Plate type and size

0.3mm Thin steel sheets plate. Size :100*300mm.

Pad dropping control

Simple-cylinder , Continue pressing

Ink drying

Heat air

SPM4-200T 4 colors pad printer//Usage and characters

Guide

  • Print both one color to 4 colors with shuttle worktable, overprint is more precision.
  • With sealed cup to store ink, saving ink and environment protection ;
  • With coin aluminum structure ensure more stabilization and long life.
  • Independent sealed cup driving device, Ink removing completely . Make min Pressure to remove ink;
  • Can print almost small size objects. So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner, fixtures, steel plates, rubber pads provided when you send us samples to send..

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

SPM4-200T 4 colors pad printer with shuttle//Parameter

Technical parameters

SPM4-150T 4 colours sealed cup pad printer with shuttle.

  • Max. plate size: 100×250mm.
  • Max. worktable area: 125×200mm.
  • Sealed cup diameter: Φ90mm.
  • Max. printing speed: 550pcs/h.
  • Printable color:4
  • Shuttle stroke:125mm.
  • Max print area: 80×130mm.

SPM4-200T 4 colours sealed cup pad printer with shuttle.

  • Max. plate size: 100×300mm.
  • Max. worktable area: 125×200mm.
  • Sealed cup diameter: Φ90mm
  • Max. printing speed: 550pcs/h.
  • Printable color: 4
  • Shuttle stroke:125mm.
  • Max print area: 80×170mm。

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package dimension: 1.230×0.860×1.520m
  • Gross weight: 293KG.
  • CBM: 1.535369

H.S.Code

8443198000

Certicate

CE

SPM4-200T 4 colors pad printer with shuttle //Advantage

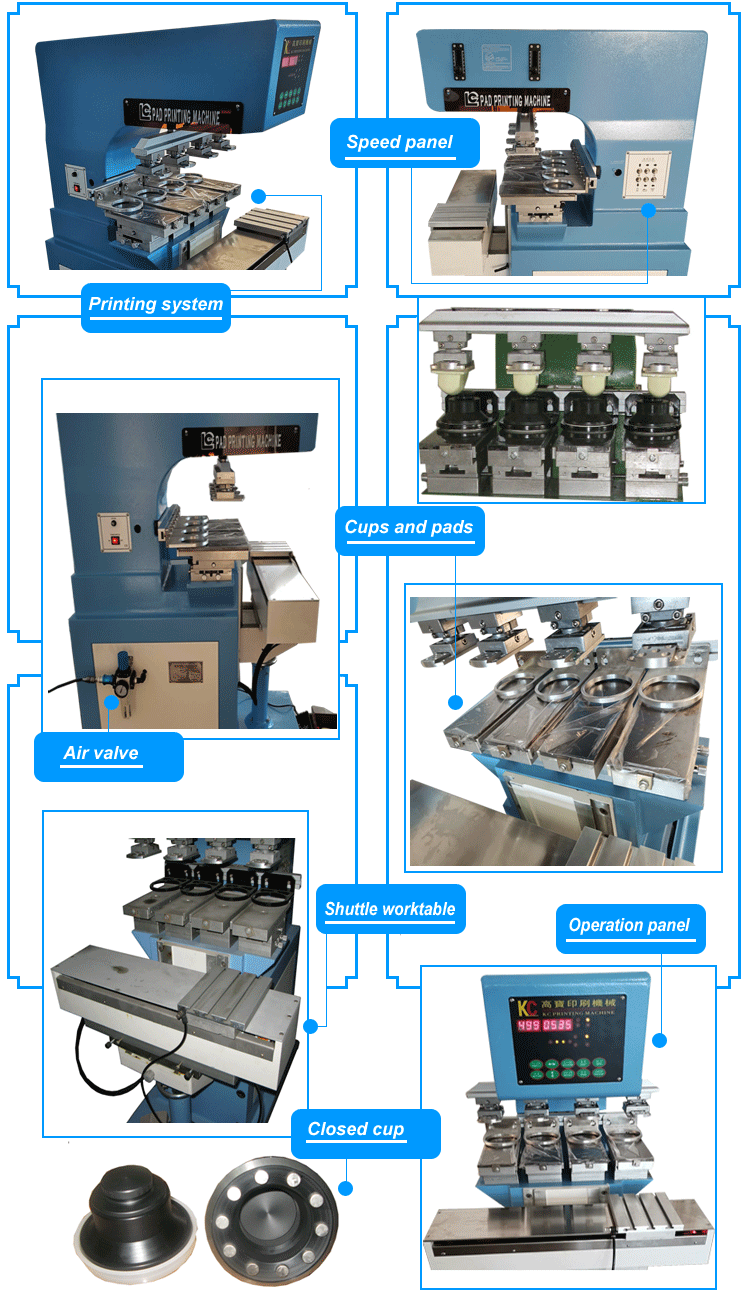

Function

  • Microcomputer program controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • Shuttle working table installed to get more precision overprint;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Either testing or running mode to operate ;
  • Closed cup to store and coating ink , save ink and protect environment .
  • Automatism digital count function;
  • 4 colors pad printing with drying through blowing hot air:
  • Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
  • Independent cup driven cylinder ensure ink remove clean.

Summary:
The four-color shuttle ink cup pad printing machine is an ink cup pad printing machine equipped with a four-station shuttle workbench. The diameter of the oil cup is 90mm. It is driven by an independent cylinder, and the scraping ink is cleaner. It adopts a microcomputer panel operating system, and the operation is easier. Simple and convenient; the shuttle table adopts pneumatic control, although the accuracy is reduced, but the maintenance cost is low. The four-color shuttle ink cup pad printing machine can complete 1-color to 4-color product printing, with high overprint accuracy, and is suitable for products with large dimensions.
With the development of the market and changes in user needs, the four-color ink cup pad printing machine can also be upgraded to touch screen human-machine interface operation, and the workbench can also be upgraded to servo motor control. The printing function is more powerful and the product adaptability is stronger.
Embed HTML Code:

Product Image

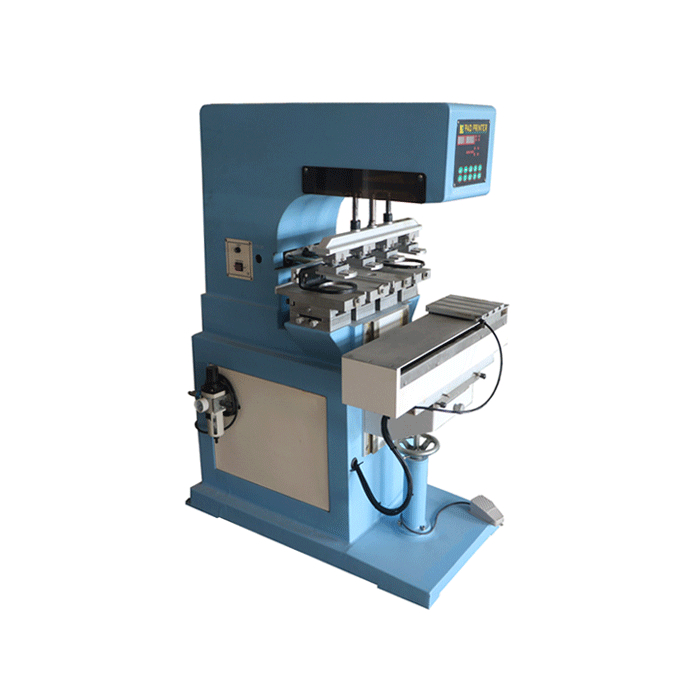

 Router shell Shuttle pad printer  1
Img 1

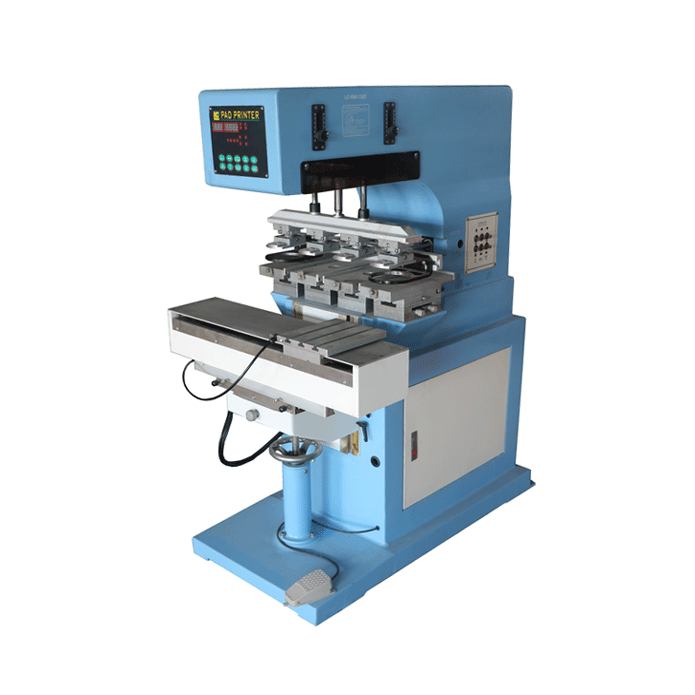

 Router shell Shuttle pad printer  2
Img 2

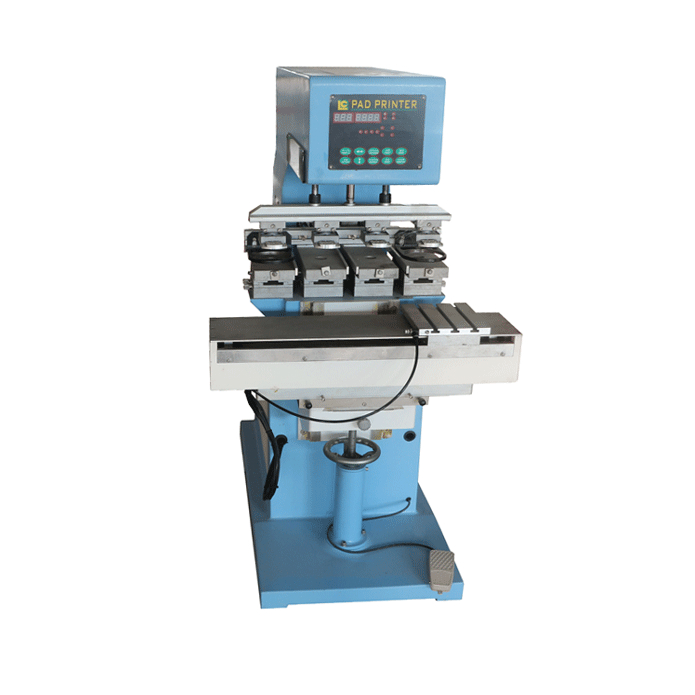

 Router shell Shuttle pad printer  3
