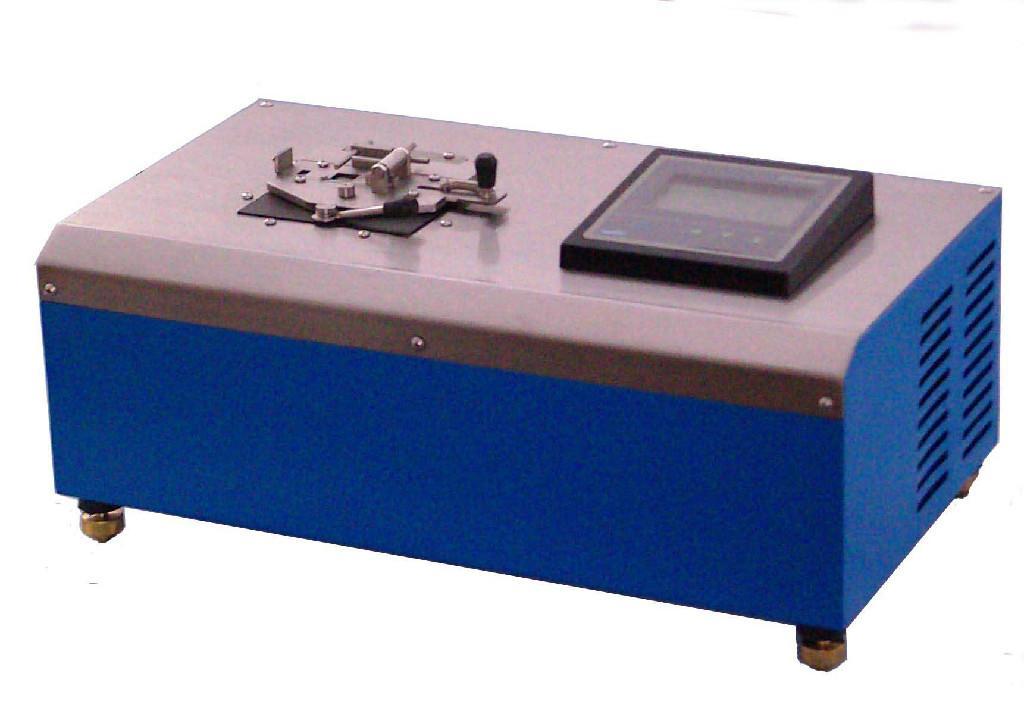

YG-301 is a closed flash point tester, can rapid test flash point of coating, paint (water-based paint), varnish, lacquer base, adhesive, solvent, chemical reagent, flavor, spices, solid chemical products, viscous chemical products, , air fuel oil, petroleum and related products.

Function Overview

The tester can complete testing on flash point/no flash within 5 minutes; you can also quickly detect the actual flash point of the sample. Instrument can detect flash point between -30 ℃ to 300 ℃ under a specific temperature. Implement the test through the program controller buttons and digital display. The ignition sources can be provided directly by the laboratory, you can also use the portable butane gas tank. Built-in cooling module can shorten the cooling time between the two tests.

Technical Parameters

1． Operate Conditions:

Operate Temperature: 15℃～35℃

Electric Supply：  220/240V，50/60Hz

2． Specifications：

Testing Method Meets Standards: ISO 3679, ISO 3680, ASTM D3278 and ASTM D3828. And meets China Standards: GB/T5208-2008, GB/T21790-2008, GB5207 and GB7634.

Operate Method：       Manually

Temperature Range:    -0～100℃(-30℃～300℃ Optional)

Testing Accuracy:   0.5℃

Testing Duration:   <5min（rapid balanced method）

Sample volume:   2ml (4ml)

Cooling Method:   Built-in Cooling module (Without external cooler)

Size：   400×220×170mm

Weight：   6kg

3． Back-up Spare:

 Standard: Steam source regulation component

Silicone tube

2ml injector

Thermometer 0～100℃

O-Type Seal Ring (5)

Operate Manual

Optional: Thick object injector

           Powdery object injector

          4ml injector

Flash point of quasi-standard oil (49.7℃)

Temperature Measurement Verifier (with certificate)

Ordering Information:    YG-301(-0～100℃)

YG-301B(-30～100℃)

YG-301A(Room temperature～300℃)
