Electric aboard industrial Pneumatica Streching machine

Model:S1-22
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:Stretching machine , pulling machine , Pneumatic stretcher
Price: US $2441 / pc
Min. Order:1 pc
Inquire Now

Member Information

Detail

LC industrial company Limited

Biz MemberGuang Dong - China
Last Online:24 Dec, 2024

Product Description

Pneumatic screen stretching machine:

Power source

Use the pressure generated by compressed air as power to push the screen stretching parts to stretch the screen.

Screen stretching accuracy

High precision, precise pressure control, can make the screen tension uniform in all directions, ensure the quality of the screen.

Operation convenience

Simple operation, the screen tension can be controlled by adjusting the air pressure, and the required tension can be quickly achieved to improve work efficiency.

Advantages of pneumatic screen stretching machine:

Uniform tension

Can make the tension of the screen evenly distributed on the entire screen frame, ensure the consistent ink transmittance during printing, improve printing quality, make the pattern clear and the color uniform.

High efficiency

Compared with mechanical screen stretching machine, pneumatic screen stretching machine has a faster screen stretching speed, can complete the screen stretching work in a short time, and is suitable for mass production of screens.

Strong applicability

It can be adjusted according to different screen materials, screen frame sizes and tension requirements, and can meet the diverse needs of screen production.

Streching Machine //Usage and characters

Guide

  • Currently on the market the most common type of mechanical tension and pneumatic pulled.;
  • Free Stretching Machine sliding rail can of screen frmae of different sizes;
  • Cylinder to force the silk frame on the workbench in close contact with the clamping of the mesh in the frame folder;
  • Rotary handwheel tension in accordance with the appropriate mesh taut surface of the screen frame.
  • Can stretch to more than one screen frame;
  • Collectively referred to all manually tighten the mesh stretching machine to become pneumatic streching machine for mechanical cylinder drive to pull the silk stretching machine, pneumatic netting machines suitable for high accuracy and high tension screen plate of the production, while the screen plate of the production of mechanical stretching machine is suitable for most ordinary accuracy and tension.

Application fields

  • Nylon silk,;
  • PET Silk,
  • Stainless steel silk.

Streching machine //Parameter

Technical parameters

S1-20

S1-22
  • Max tighten area:1000×1000mm;
  • Dimension:1500×1800×800mm;
  • Net weight:135kg;
  • Max silk tension:35N/CM.
  • Max tighten area:1000×1200mm;
  • Dimension:2000×2300×800mm;
  • Net weight:155kg;
  • Max silk tension:35N/CM.

Works supply

  • 5-Bar Compress air

Package list

  • Package Dimension: 2120*1920*1150mm;
  • Gross weight: 276kg;
  • CBM: 2.243

H.S.Code

8443198000

Certicate

CE

Streching Machine //Advantage

Function

  • High-strength aluminum rack;
  • Push-pull free retractable guide rod;
  • Pneumatic given network to make the tension more uniform and more stable to prevent the mesh torn;
  • Manually pull the net, micro adjustment, conducive to the tension of flexibility and control;
  • High-strength aluminum alloy pull the net head, the screening is more stable;
  • Free disassembly, easy to move.

Summary:
The stretching machine is usually named after the dynamic form of the tension of the wire mesh on the surface of the screen frame. If the tension of the wire mesh is generated mechanically, it becomes a mechanical stretching machine. If the tension of the wire mesh is generated pneumatically, it becomes a pneumatic stretching machine. Machine, because the pneumatic stretching machine distributes the cylinders arranged in a matrix around the screen, so the tension generated is relatively large. The pneumatic stretching machine is relatively a high-precision screen printing screen production: such as: precision circuit board printing, four-color Dot printing. The larger the netting area of the pneumatic netting machine, the more cylinders are distributed around it, and the higher the price.

Product Image

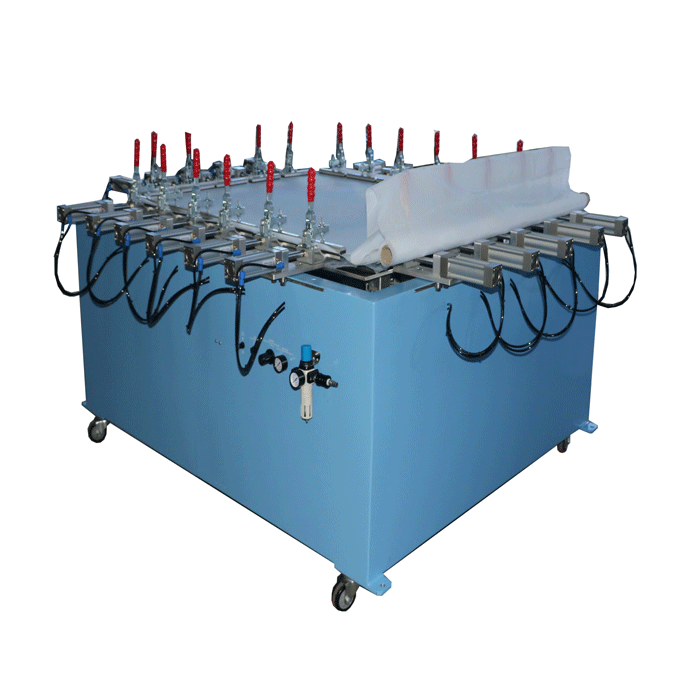

Electric aboard industrial Pneumatica Streching machine 1
Img 1
Electric aboard industrial Pneumatica Streching machine 2
Img 2
Electric aboard industrial Pneumatica Streching machine 3
Img 3
Electric aboard industrial Pneumatica Streching machine 4
Img 4
Electric aboard industrial Pneumatica Streching machine 5
Img 5
